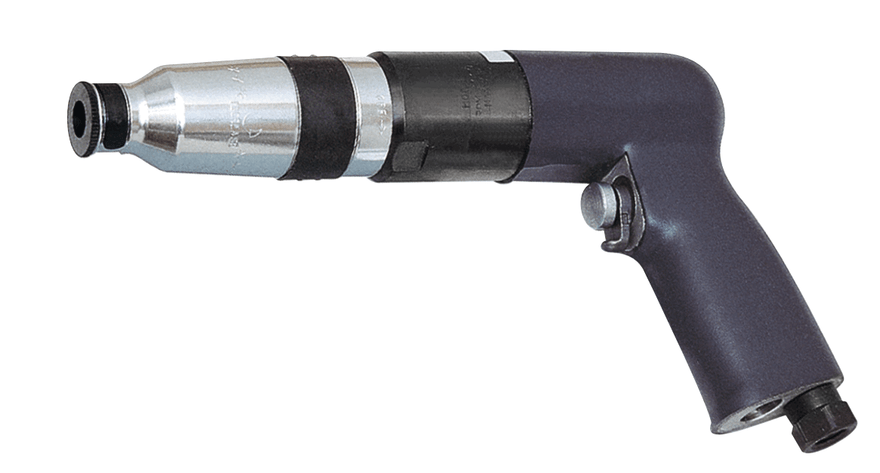

Ingersoll Rand 41PA10TSQ4 Pneumatic Screwdriver is designed for controlled fastening in production assembly applications involving plastics, composites, and metals. This 1,000 RPM pneumatic screwdriver features an adjustable shut-off clutch with a 15–80 in-lbs torque range, allowing the fastening torque to be adjusted to suit the application. Its pistol-grip configuration and pneumatic operation make it suitable for repetitive fastening where consistent torque control is important.
As part of the Ingersoll Rand 41 Series, the 41PA10TSQ4 is configured for applications requiring adjustable torque and controlled shut-off. The supplied product information identifies this model with a 1,000 RPM speed and 15–80 in-lbs torque range. Additional specifications should be verified against the manufacturer's catalog before publication rather than assumed from related models.
Type: Pneumatic Screwdriver | Series: 41 Series | Grip Style: Pistol | Free Speed: 1,000 RPM | Torque Range: 15–80 in-lbs | Clutch: Adjustable Shut-Off
|
Feature:
|
 |
Made in USA:
Applications:
- Production assembly requiring adjustable fastening torque.
- Plastic component assembly.
- Composite component fastening.
- Metal assembly applications within the tool's specified torque range.
- Repetitive fastening operations where controlled pneumatic torque is required.
FAQs:
- Q: What is the torque range of the 41PA10TSQ4?
A: The specified torque range is 15–80 in-lbs. - Q: What does an adjustable shut-off clutch do?
A: It allows the fastening torque to be adjusted for the application and provides shut-off operation when the selected fastening condition is reached. - Q: What is the free speed of this pneumatic screwdriver?
A: The specified speed is 1,000 RPM. - Q: What types of materials can this screwdriver be used on?
A: The 41 Series is intended for fastening applications involving plastics, composites, and metals when the application's torque requirements fall within the tool's specified range. - Q: Is the 41PA10TSQ4 suitable for repetitive assembly work?
A: Yes. Its pneumatic operation, pistol-grip configuration, adjustable shut-off clutch, and controlled torque range make it suited to repetitive fastening applications.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Trigger Start | |||||||||
| 41PA24TSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Push-To-Start | |||||||||
| 41PA24PSQ4 | 15 – 40 (1.7 – 4.5) | – | – | 2,400 | 2.9 (1.3) | 9.4" (239) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA16PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8PSQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| Trigger + Push-To-Start | |||||||||
| 41PA16TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | – | 1,600 | 3.0 (1.36) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA10TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 80 (4.0 – 9.0) | 1,000 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
| 41PA8TPQ4 | 15 – 40 (1.7 – 4.5) | 25 – 60 (2.8 – 6.8) | 35 – 100 (4.0 – 11.3) | 800 | 3.1 (1.4) | 9.8" (249) | 0.9" (22) | 1/4" | 28 (790) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the Ingersoll Rand Screwdrivers proper for your assembly application please email info@intlairtool.com or call (800) 608-5210
