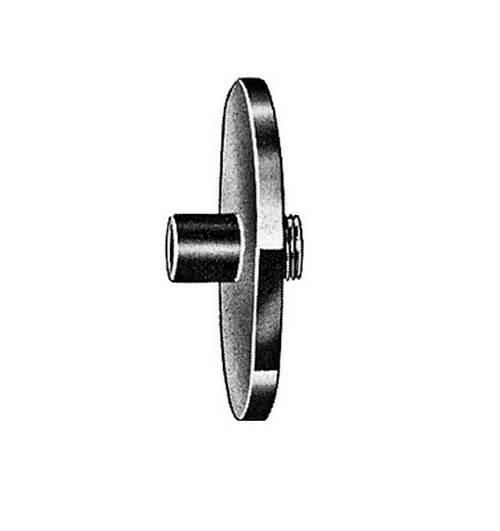

Dotco 14-2632 Router Guide For Router Bits with 3/8" Shank Bits

Built for precision routing applications with compatible Dotco pneumatic routers, the Dotco 14-2632 Router Guide is designed for use with 3/8" shank router bits. This guide helps maintain accurate bit alignment during trimming, profiling, and template-guided routing, making it well suited for composite fabrication, aerospace manufacturing, woodworking, and other industrial routing operations where consistent results are important.

The 14-2632 router guide features Dimensions A: 2", B: 9/16", C: 3/4", and D: 3/16". These dimensions provide a reliable reference when selecting a replacement guide or configuring a compatible Dotco router for a specific routing application.

Type: Router Guide | Model: 14-2632 | Compatible Bit Shank: 3/8" | Dimension A: 2" | Dimension B: 9/16" | Dimension C: 3/4" | Dimension D: 3/16"

Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.

In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.

Applications:

• Composite trimming and laminate edge finishing.
• Aerospace routing and precision fabrication.
• Template-guided routing in industrial manufacturing environments.
• Woodworking and fabrication projects requiring accurate router guidance.

FAQs:

• Q: Is the Dotco 14-2632 a complete router?
  A: No. It is a router guide accessory intended for use with compatible Dotco pneumatic routers.
• Q: Which router bit shank size is this guide designed for?
  A: The 14-2632 is designed for router bits with a 3/8" shank.
• Q: Why should I verify the guide dimensions before ordering?
  A: Matching the A, B, C, and D dimensions to your existing guide or routing setup helps ensure proper fit and dependable routing performance.

Looking for more information about Dotco Accessory? Click here to view the Catalog.

Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
