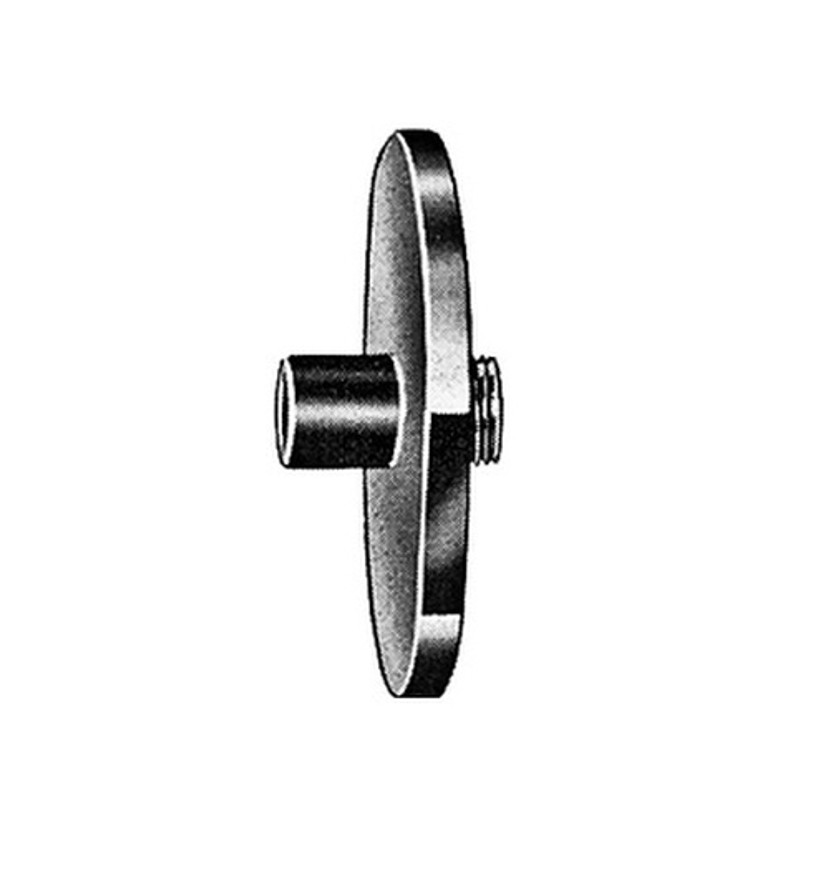

Built for precision routing with compatible Dotco pneumatic routers, the Dotco 14-2240 Router Guide is designed for use with 3/8" shank router bits. This guide helps maintain consistent bit positioning during trimming, edge profiling, and template-guided routing, providing improved control for composite fabrication, aerospace manufacturing, woodworking, and industrial production environments where repeatable routing accuracy is essential.
The 14-2240 router guide features Dimensions A: 2", B: 1/2", C: 3/4", and D: 1/8". These dimensional specifications provide a reliable reference for replacing an existing guide or selecting the proper guide for a compatible Dotco routing setup.
Type: Router Guide | Model: 14-2240 | Compatible Bit Shank: 3/8" | Dimension A: 2" | Dimension B: 1/2" | Dimension C: 3/4" | Dimension D: 1/8"
|
Features:
Made in USA: |
|
Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.
In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.
Applications:
- Composite trimming and laminate edge finishing.
- Aerospace routing and precision fabrication.
- Template-guided routing in industrial manufacturing.
- Woodworking and shop routing applications requiring consistent guide control.
FAQs:
- Q: Is the Dotco 14-2240 a complete router?
A: No. This product is a router guide accessory only and is intended for use with compatible Dotco pneumatic routers. - Q: What size router bits is this guide designed for?
A: The 14-2240 is designed for router bits with a 3/8" shank. - Q: Why should I verify the guide dimensions before ordering?
A: Confirming the A, B, C, and D dimensions against your existing guide or application helps ensure proper fit and reliable routing performance.
| SKU | DIMENSION A IN |
DIMENSION B IN |
DIMENSION C IN |
DIMENSION D IN |
|---|---|---|---|---|
| 14-2240 | 2-1/2 | 3/8 | 3/8 | 1/8 |
| 14-2243 | 2-1/2 | 5/8 | 3/8 | 1/8 |
| 14-2531 | 1-1/2 | 1/2 | 3/8 | 1/8 |
| 14-2538 | 1-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2539 | 1-1/2 | 1/2 | 5/8 | 1/8 |
| 14-2540 | 1-1/2 | 9/16 | 3/8 | 1/8 |
| 14-2541 | 1-1/2 | 9/16 | 1/2 | 1/8 |
| 14-2542 | 1-1/2 | 9/16 | 5/8 | 1/8 |
| 14-2544 | 1-1/2 | 5/8 | 5/8 | 1/8 |
| 14-2630 | 2-1/2 | 9/16 | 1/2 | 1/8 |
| 14-2631 | 2-1/2 | 5/8 | 5/8 | 1/8 |
| 14-2632 | 2-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2633 | 2-1/2 | 1/2 | 5/8 | 1/8 |
| 14-2634 | 2-1/2 | 9/16 | 3/8 | 1/8 |
| 14-2635 | 2-1/2 | 9/16 | 5/8 | 1/8 |
| 14-2636 | 2-1/2 | 5/8 | 1/2 | 1/8 |
| 14-2893 | 1-1/2 | 5/8 | 3/8 | 1/8 |
| 14-2925 | 1-1/2 | 5/8 | 1/2 | 1/8 |
Looking for more information about Dotco Accessory? Click here to view the Catalog.
Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
