Built for accurate routing operations with compatible Dotco pneumatic routers, the Dotco 14-2539 Router Guide is intended for use with 3/8" shank router bits. The guide helps maintain consistent bit positioning during trimming and profiling applications, providing improved control and repeatable routing performance across composite fabrication, aerospace manufacturing, woodworking, and industrial production environments.

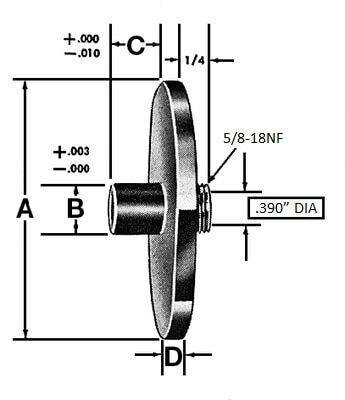

The 14-2539 router guide features Dimensions A: 1-1/2", B: 3/4", C: 1/2", and D: 1/4", making it easy to identify the proper replacement or guide configuration for compatible Dotco router assemblies.
Type: Router Guide | Model: 14-2539 | Compatible Bit Shank: 3/8" | Dimension A: 1-1/2" | Dimension B: 3/4" | Dimension C: 1/2" | Dimension D: 1/4"
|
Features:
Made in USA: |
|
Important: Insert the bit into the collet as far as possible, then pull out 1/16” and tighten the collet.
In an emergency: If it is necessary to pull out the bit more than 1/4”, be sure to insert a short length of blank shank (not to exceed 5/8” long) in the bottom of the collet before inserting the bit.
Applications:
- Composite trimming and edge finishing.
- Aerospace routing and laminate fabrication.
- Template-guided routing in industrial manufacturing.
- Woodworking and fabrication projects requiring controlled routing accuracy.
FAQs:
- Q: Is the Dotco 14-2539 a complete router?
A: No. It is a router guide accessory intended for use with compatible Dotco pneumatic routers. - Q: Which router bit size is this guide designed for?
A: The 14-2539 is designed for router bits with a 3/8" shank. - Q: Why are the guide dimensions important?
A: The A, B, C, and D dimensions should match your existing guide or application requirements to ensure proper routing performance and fitment.
| SKU | DIMENSION A IN |
DIMENSION B IN |
DIMENSION C IN |
DIMENSION D IN |
|---|---|---|---|---|
| 14-2240 | 2-1/2 | 3/8 | 3/8 | 1/8 |
| 14-2243 | 2-1/2 | 5/8 | 3/8 | 1/8 |
| 14-2531 | 1-1/2 | 1/2 | 3/8 | 1/8 |
| 14-2538 | 1-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2539 | 1-1/2 | 1/2 | 5/8 | 1/8 |
| 14-2540 | 1-1/2 | 9/16 | 3/8 | 1/8 |
| 14-2541 | 1-1/2 | 9/16 | 1/2 | 1/8 |
| 14-2542 | 1-1/2 | 9/16 | 5/8 | 1/8 |
| 14-2544 | 1-1/2 | 5/8 | 5/8 | 1/8 |
| 14-2630 | 2-1/2 | 9/16 | 1/2 | 1/8 |
| 14-2631 | 2-1/2 | 5/8 | 5/8 | 1/8 |
| 14-2632 | 2-1/2 | 1/2 | 1/2 | 1/8 |
| 14-2633 | 2-1/2 | 1/2 | 5/8 | 1/8 |
| 14-2634 | 2-1/2 | 9/16 | 3/8 | 1/8 |
| 14-2635 | 2-1/2 | 9/16 | 5/8 | 1/8 |
| 14-2636 | 2-1/2 | 5/8 | 1/2 | 1/8 |
| 14-2893 | 1-1/2 | 5/8 | 3/8 | 1/8 |
| 14-2925 | 1-1/2 | 5/8 | 1/2 | 1/8 |
Looking for more information about Dotco Accessory? Click here to view the Catalog.
Need help selecting the correct Dotco Accessories for your application? Please call (800) 608-5210 or email info@intlairtool.com
