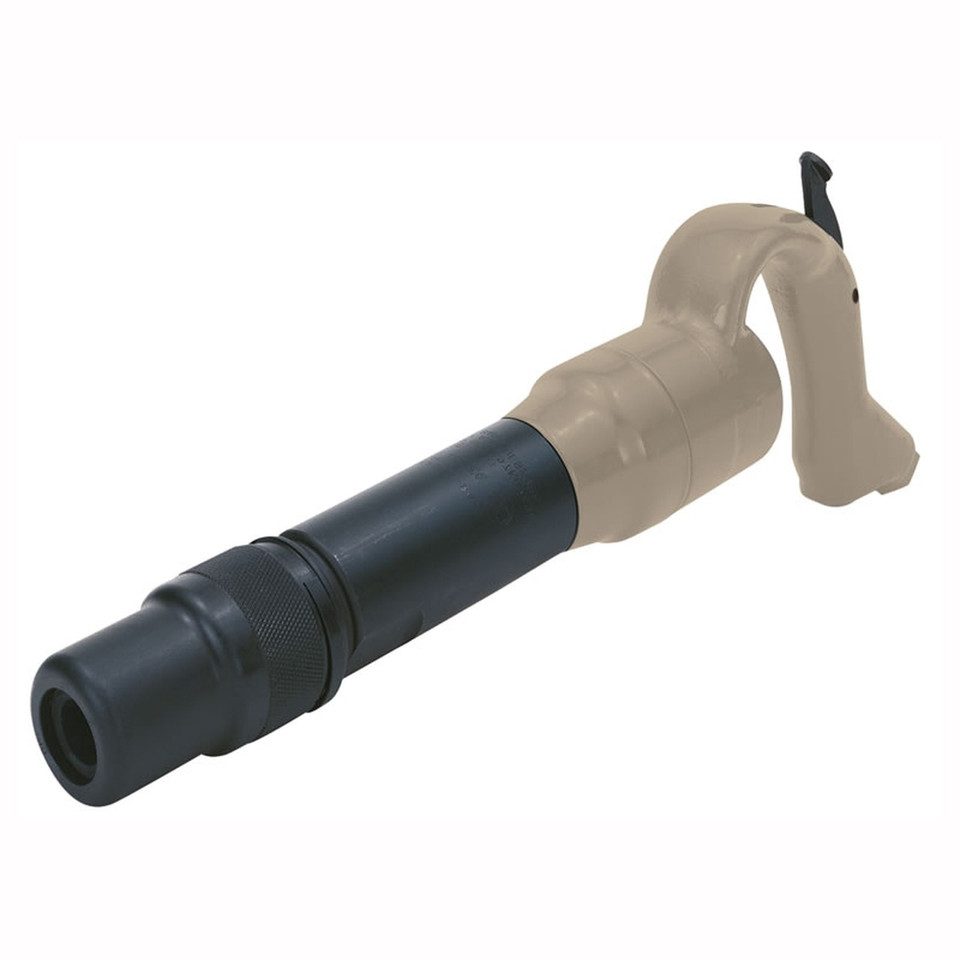

Ingersoll Rand W1A1 Heavy-Duty Chipping Hammer is designed for demanding chipping, scaling, and demolition applications requiring dependable pneumatic performance in industrial environments. Equipped with a 1" stroke, 2,500 blows per minute, and a 0.58" hex shank, this W-Series hammer delivers rapid, controlled impacts for removing concrete, weld slag, rust, and mill scale. Its heavy-duty construction is intended for continuous use in fabrication shops, foundries, construction sites, and industrial maintenance operations.
The W1A1 features a swan-neck handle with an outside trigger for comfortable operation and improved control during extended use. A lock-spring retainer securely holds compatible 0.58" hex shank oval-collar accessories, while the replaceable piston helps simplify maintenance and supports long-term serviceability. The combination of a short stroke and high blow rate makes this model well suited for fast, controlled material removal and surface preparation.
Type: Heavy-Duty Chipping Hammer | Series: W-Series | Model: W1A1 | Shank Type: Hex | Shank Size: 0.58" | Retainer Type: Lock-Spring (Plain Arrow) | Stroke: 1" | Blows Per Minute: 2,500 BPM
Features:
- Heavy-duty W-Series construction is designed for continuous pneumatic chipping and scaling applications.
- 1-inch stroke delivers rapid, controlled impact for precision material removal.
- 2,500 blows per minute provides fast percussion for productive surface preparation and cleanup.
- Swan-neck handle with outside trigger offers comfortable operation and improved accessibility.
- Lock-spring retainer securely holds compatible 0.58-inch hex shank oval-collar accessories.
- Replaceable piston helps simplify maintenance and supports extended service life.
- Compatible with a variety of chisels and scaling tools designed for the W-Series retainer system.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Concrete chipping and light demolition.
- Rust, weld slag, and mill scale removal.
- Surface preparation before repair or coating.
- Foundry cleaning and casting finishing.
- Industrial maintenance, fabrication, and general material-removal operations.
FAQs:
- Q: What type of accessories does the Ingersoll Rand W1A1 accept?
A: The W1A1 is designed for compatible 0.58-inch hex shank tools with an oval collar used with the lock-spring retainer system. - Q: What applications is the W1A1 intended for?
A: It is suitable for concrete chipping, weld cleanup, rust and scale removal, foundry work, and general industrial surface-preparation applications. - Q: What advantage does the 1-inch stroke provide?
A: The short stroke combined with 2,500 BPM delivers rapid, controlled impacts that are well suited for precision chipping and scaling tasks. - Q: Is the piston replaceable?
A: Yes. The W-Series design incorporates a replaceable piston to simplify maintenance and support long-term serviceability. - Q: Can this hammer be used for continuous industrial work?
A: Yes. Its heavy-duty construction is intended for demanding industrial chipping and material-removal applications.
| SKU | Retainer Type | Stroke | Bore | Length Without Accessory | Weight Without Accessory | BPM | CFM | Inlet Size NPT | Recommended Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| IN (MM) | IN (MM) | IN (MM) | LB (KG) | IN | IN (MM) | ||||
| A Series Industrial-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Oval Collar Accessories | |||||||||
| 1A1SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A1SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A1SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A1SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Oval Collar Accessories | |||||||||
| 1A2SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A2SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A2SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A2SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| W Series Heavy-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Round Collar Accessories | |||||||||
| W1A1 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A1 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A1 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A1 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Round Collar Accessories | |||||||||
| W1A2 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A2 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A2 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A2 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
Looking for more information about Ingersoll Rand Chipping Hammer? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Chipping Hammers, please call (800) 608-5210 or email info@intlairtool.com
