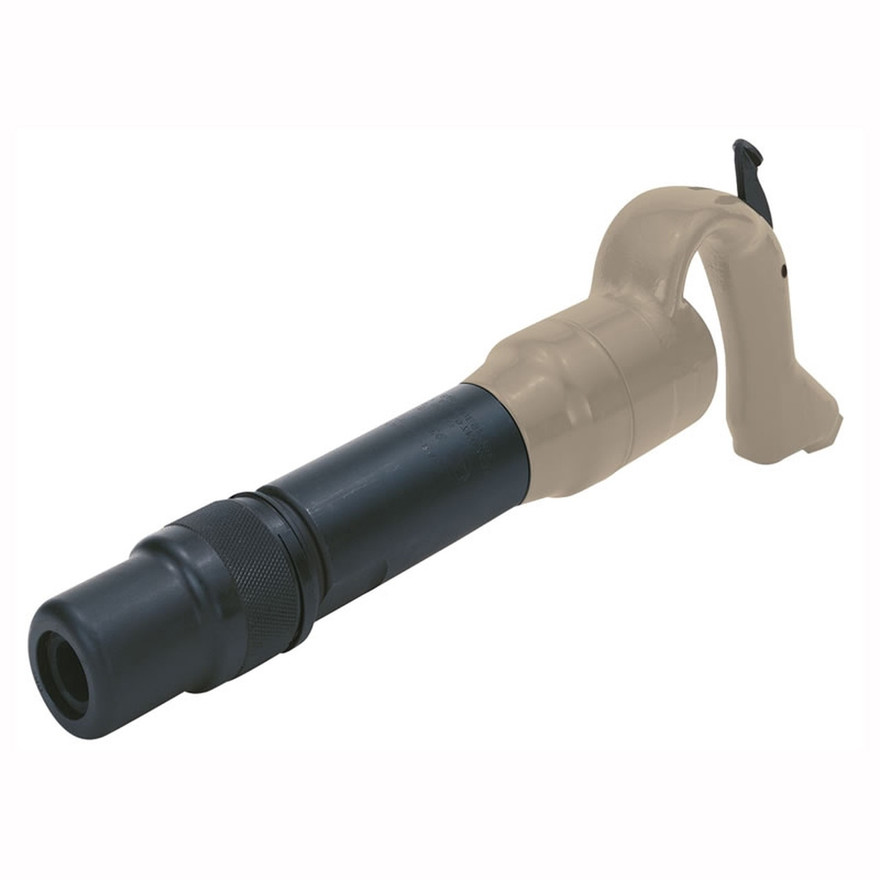

Ingersoll Rand W4A2 Heavy-Duty Chipping Hammer is built for demanding demolition, concrete removal, scaling, and industrial maintenance applications where maximum impact energy is required. Featuring a 4" stroke, 1,480 blows per minute, and a 0.68" round shank, this W-Series pneumatic hammer delivers powerful, controlled blows for challenging material-removal tasks. Its heavy-duty construction is designed for continuous operation in fabrication shops, foundries, construction sites, shipyards, and industrial maintenance facilities.
The W4A2 incorporates a swan-neck handle with an outside trigger for comfortable operation and enhanced operator control during prolonged use. A lock-spring retainer securely holds compatible 0.68" round shank oval-collar accessories, while the extended 4" stroke provides greater impact energy than shorter-stroke models for heavy chipping and demolition work. The replaceable piston simplifies maintenance and supports dependable long-term serviceability in demanding industrial environments.
Type: Heavy-Duty Chipping Hammer | Series: W-Series | Model: W4A2 | Shank Type: Round | Shank Size: 0.68" | Retainer Type: Lock-Spring (Plain Arrow) | Stroke: 4" | Blows Per Minute: 1,480 BPM
Features:
- Heavy-duty W-Series construction is designed for continuous pneumatic chipping and demolition applications.
- 4-inch stroke delivers high impact energy for demanding material-removal tasks.
- 1,480 blows per minute provide controlled, powerful percussion for heavy-duty work.
- Swan-neck handle with outside trigger offers comfortable handling and improved operator control.
- Lock-spring retainer securely holds compatible 0.68-inch round shank oval-collar accessories.
- A replaceable piston helps simplify maintenance and supports an extended service life.
- Compatible with a variety of chisels and scaling tools designed for the W-Series retainer system.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Heavy concrete chipping and demolition.
- Bridge deck rehabilitation and structural concrete removal.
- Rust, weld slag, and mill scale removal.
- Foundry cleaning and heavy casting finishing.
- Industrial maintenance, fabrication, shipyard, and plant repair operations.
FAQs:
- Q: What type of accessories does the Ingersoll Rand W4A2 accept?
A: The W4A2 is designed for compatible 0.68-inch round shank tools with an oval collar that fit the lock-spring retainer system. - Q: How does the W4A2 differ from the W3A2?
A: The primary catalog-listed differences are the longer 4-inch stroke and lower blow rate of 1,480 BPM, providing greater impact energy for the most demanding chipping and demolition applications. - Q: What applications is the W4A2 intended for?
A: It is well suited for heavy concrete demolition, bridge repair, foundry cleanup, weld slag removal, rust and scale removal, and industrial material-removal operations. - Q: Why choose the 4-inch stroke model?
A: The extended stroke generates greater impact energy, making it ideal for heavy-duty demolition and material-removal applications where stronger individual blows are required. - Q: Is the piston replaceable?
A: Yes. The W-Series design incorporates a replaceable piston to simplify maintenance and support long-term serviceability.
| SKU | Retainer Type | Stroke | Bore | Length Without Accessory | Weight Without Accessory | BPM | CFM | Inlet Size NPT | Recommended Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| IN (MM) | IN (MM) | IN (MM) | LB (KG) | IN | IN (MM) | ||||
| A Series Industrial-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Oval Collar Accessories | |||||||||
| 1A1SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A1SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A1SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A1SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Oval Collar Accessories | |||||||||
| 1A2SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A2SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A2SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A2SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| W Series Heavy-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Round Collar Accessories | |||||||||
| W1A1 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A1 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A1 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A1 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Round Collar Accessories | |||||||||
| W1A2 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A2 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A2 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A2 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
Looking for more information about Ingersoll Rand Chipping Hammer? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Chipping Hammers, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Chipping Hammer
- Series
- W-Series
- Shank Size (in.)
- 0.680
- Shank Type
- Round
- Stroke Length (in.)
- 4
- Retainer Type
- Rubber-Buffered
- Bore (in.)
- 1.13
- Handle Type
- Swan Neck Handle
- Length (in.)
- 19.25
- Blows Per Minute (BPM)
- 1480
- Air Consumption (CFM)
- 29
- Air Inlet
- 3/8" NPT
- Hose Size (in.)
- 1/2
