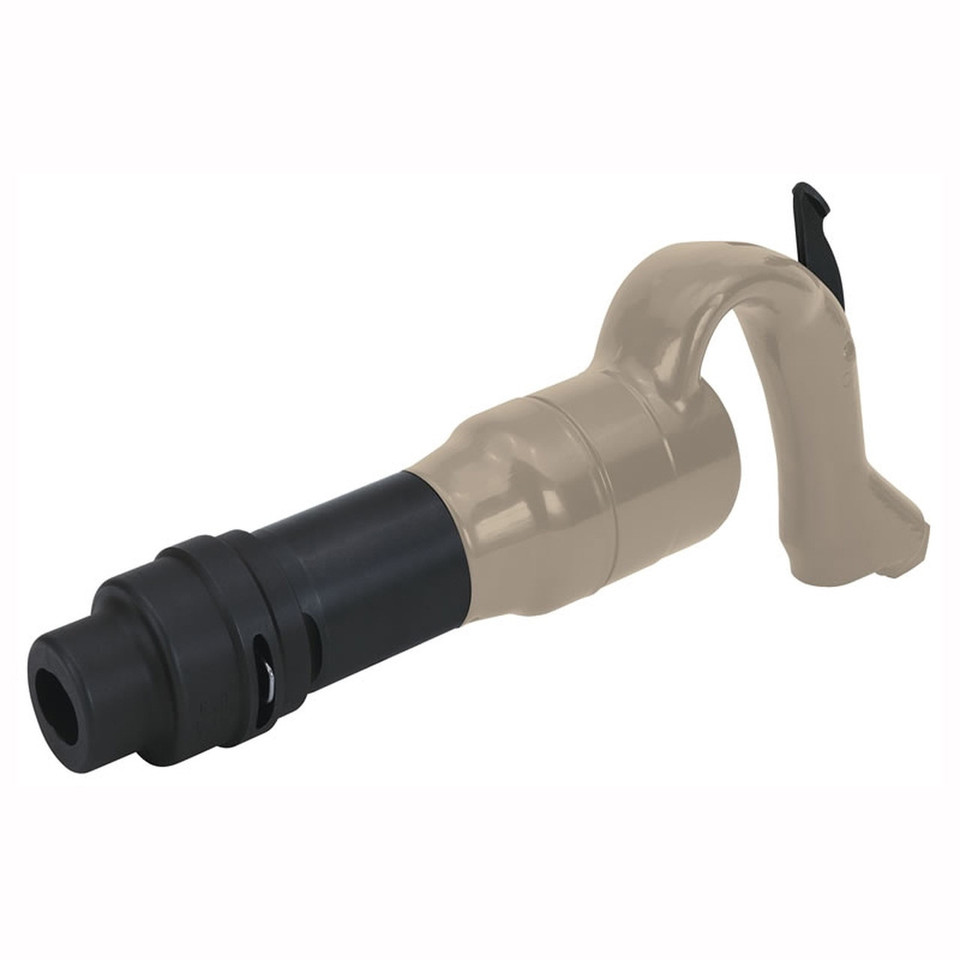

Ingersoll Rand 4A1SA Industrial-Duty Chipping Hammer is built for heavy-duty demolition, concrete removal, scaling, and industrial maintenance applications where maximum impact energy is required. Featuring a 4" stroke, 1,480 blows per minute, and a 0.58" hex shank, this A-Series pneumatic hammer delivers powerful, controlled blows for demanding material-removal tasks. Its industrial-duty construction is designed for continuous service in fabrication shops, foundries, construction sites, shipyards, and maintenance operations.
The 4A1SA utilizes a swan-neck handle with an outside trigger for comfortable operation and improved control during extended use. A lock-spring retainer securely holds compatible 0.58" hex shank oval-collar accessories, while the extended 4" stroke provides greater impact energy than shorter-stroke models for heavy chipping and demolition work. The replaceable piston supports simplified maintenance and long-term serviceability, making this hammer well suited for demanding industrial environments.
Type: Industrial-Duty Chipping Hammer | Series: A-Series | Model: 4A1SA | Shank Type: Hex | Shank Size: 0.58" | Retainer Type: Lock-Spring (Plain Arrow) | Stroke: 4" | Blows Per Minute: 1,480 BPM
Features:
- Industrial-duty A-Series construction is designed for continuous pneumatic demolition and chipping applications.
- 4-inch stroke delivers high impact energy for demanding material-removal tasks.
- 1,480 blows per minute provides controlled, powerful percussion for heavy-duty work.
- Swan-neck handle with outside trigger offers comfortable handling and improved operator control.
- Lock-spring retainer securely holds compatible 0.58-inch hex shank oval-collar accessories.
- Replaceable piston simplifies maintenance and supports extended service life.
- Compatible with a variety of chisels, scaling tools, and demolition accessories designed for the A-Series retainer system.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Applications:
- Heavy concrete chipping and demolition.
- Bridge deck rehabilitation and structural concrete removal.
- Rust, weld slag, and mill scale removal.
- Foundry cleaning and heavy casting finishing.
- Industrial maintenance, fabrication, shipyard, and plant repair operations.
FAQs:
- Q: What accessories are compatible with the Ingersoll Rand 4A1SA?
A: The 4A1SA accepts compatible 0.58-inch hex shank tools with an oval collar designed for use with the lock-spring retainer. - Q: How does the 4A1SA differ from other A-Series chipping hammers?
A: The 4A1SA features the longest stroke in this product group at 4 inches and operates at 1,480 BPM, providing increased impact energy for the most demanding chipping and demolition applications. - Q: What applications is the 4A1SA best suited for?
A: It is intended for heavy concrete demolition, bridge repair, foundry cleanup, weld slag removal, rust and scale removal, and other industrial material-removal tasks. - Q: Why choose a 4-inch stroke chipping hammer?
A: A longer stroke produces greater impact energy, making it suitable for heavier-duty demolition and material-removal applications where stronger individual blows are preferred. - Q: Is the piston serviceable?
A: Yes. The A-Series design incorporates a replaceable piston to simplify maintenance and help extend the hammer's service life.
| SKU | Retainer Type | Stroke | Bore | Length Without Accessory | Weight Without Accessory | BPM | CFM | Inlet Size NPT | Recommended Hose Size |
|---|---|---|---|---|---|---|---|---|---|
| IN (MM) | IN (MM) | IN (MM) | LB (KG) | IN | IN (MM) | ||||
| A Series Industrial-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Oval Collar Accessories | |||||||||
| 1A1SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A1SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A1SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A1SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Oval Collar Accessories | |||||||||
| 1A2SA | Standard | 1” (25) | 1.13” (28) | 15.5” (394) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| 2A2SA | Standard | 2” (51) | 1.13” (28) | 16” (406) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| 3A2SA | Standard | 3” (76) | 1.13” (28) | 17.88” (454) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| 4A2SA | Standard | 4” (102) | 1.13” (28) | 18.88” (480) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| W Series Heavy-Duty Chippers | |||||||||
| With .580” Hex Nozzle — For Use With (X4) Hex Shank Round Collar Accessories | |||||||||
| W1A1 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A1 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A1 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A1 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
| With .680” Round Nozzle — For Use With (X4) Round Shank Round Collar Accessories | |||||||||
| W1A2 | Rubber-buffered | 1” (25) | 1.13” (28) | 15.88” (403) | 14.75 (6.69) | 2,500 | 28 | 3/8” | 1/2” (13) |
| W2A2 | Rubber-buffered | 2” (51) | 1.13” (28) | 16.38” (416) | 15.13 (6.86) | 2,300 | 28 | 3/8” | 1/2” (13) |
| W3A2 | Rubber-buffered | 3” (76) | 1.13” (28) | 18.25” (464) | 16.63 (7.54) | 1,725 | 29 | 3/8” | 1/2” (13) |
| W4A2 | Rubber-buffered | 4” (102) | 1.13” (28) | 19.25” (489) | 17.5 (7.94) | 1,480 | 29 | 3/8” | 1/2” (13) |
Looking for more information about Ingersoll Rand Chipping Hammer? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Chipping Hammers, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Chipping Hammer
- Series
- A-Series
- Shank Size (in.)
- 0.580
- Shank Type
- Hex
- Stroke Length (in.)
- 4
- Retainer Type
- Standard
- Bore (in.)
- 1.13
- Handle Type
- Swan Neck Handle
- Length (in.)
- 18.88
- Blows Per Minute (BPM)
- 1480
- Air Consumption (CFM)
- 29
- Air Inlet
- 3/8" NPT
- Hose Size (in.)
- 1/2
