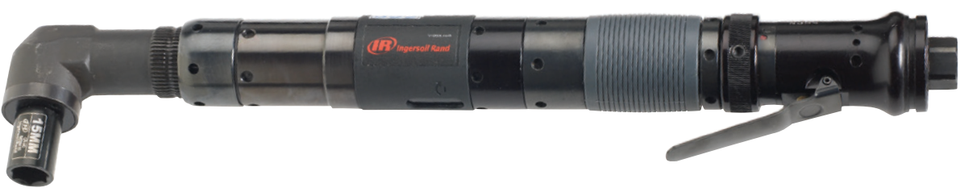

Ingersoll Rand QA6AALS030NP35S06 Angle Air Nutrunner is configured for production assembly work where controlled fastening and access around nearby components are important. Part of the QA6 Series, this model features a 3/8" drive, 11.1–22.1 ft-lbs torque range, 550–580 RPM speed range, and lever start, providing a balanced combination of torque capability, rundown speed, and operator-controlled activation.
Ingersoll Rand QA6AALS030NP35S06 uses an angle-head configuration that helps position the socket on fasteners where surrounding parts or assembly geometry can restrict straight-line tool access. Its 3/8" square drive accepts compatible sockets, while the specified torque range allows the tool to be matched to fastening requirements within its rated capability.
Type: Angle Air Nutrunner | Series: QA6 Series | Drive Size: 3/8" | Torque Range: 11.1–22.1 ft-lbs | Speed: 550–580 RPM | Start Type: Lever Start
|
Features:
Made in USA: |
 |
Applications:
- Repetitive production assembly requiring fastening within the 11.1–22.1 ft-lbs torque range.
- Assembly stations where an angle-head configuration helps access fasteners near housings, frames, or neighboring components.
- Fastening processes using compatible 3/8" drive sockets and operator-controlled lever activation.
- Machinery component, bracket, equipment, and fabricated-product assembly where the specified torque and speed ranges match process requirements.
FAQs:
- Q: What torque range does the QA6AALS030NP35S06 provide?
A: This model has a specified torque range of 11.1–22.1 ft-lbs. - Q: What drive size does this QA6 Series angle nutrunner use?
A: It uses a 3/8" square drive for compatible 3/8" drive sockets. - Q: What is the specified speed range?
A: The QA6AALS030NP35S06 has a specified operating speed range of 550–580 RPM. - Q: How is this angle air nutrunner activated?
A: This model uses lever-start operation, allowing the operator to control tool activation directly during the fastening cycle. - Q: Why choose an angle configuration for assembly work?
A: An angle-head configuration can provide more practical access when nearby components or the assembly layout make straight-line tool positioning difficult.

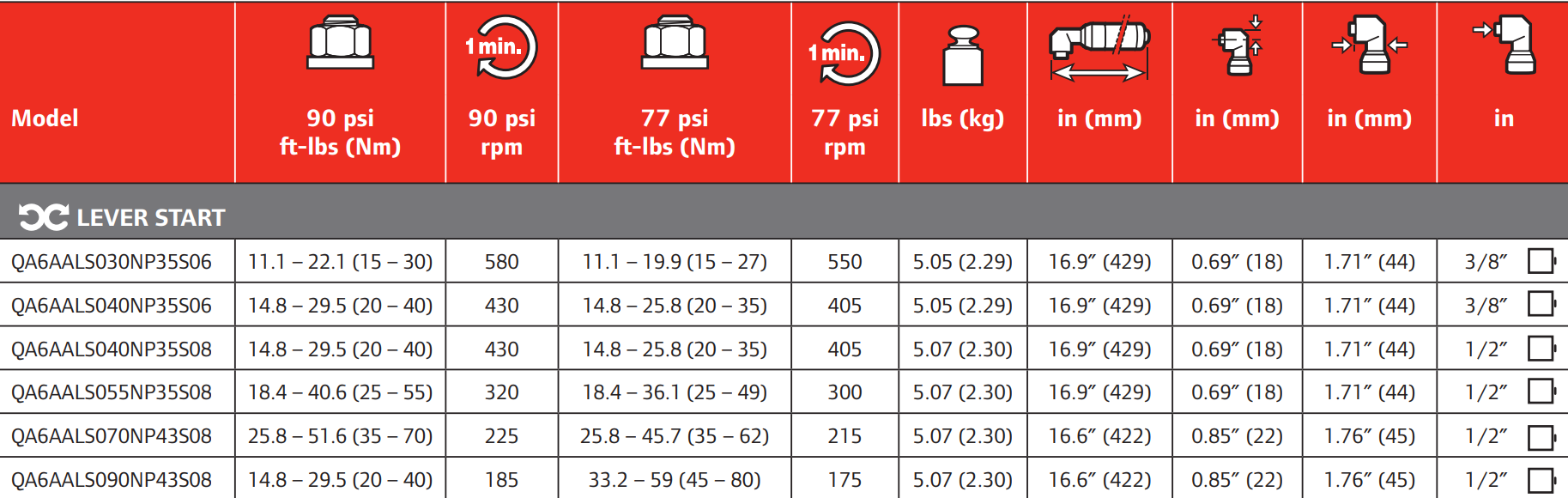

| SKU | 90 psi ft-lbs (Nm) | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA6AALS030NP35S06 | 11.1 – 22.1 (15 – 30) | 580 | 11.1 – 19.9 (15 – 27) | 550 | 5.05 (2.29) | 16.9″ (429) | 0.69″ (18) | 1.71″ (44) | 3/8″ |
| QA6AALS040NP35S06 | 14.8 – 29.5 (20 – 40) | 430 | 14.8 – 25.8 (20 – 35) | 405 | 5.05 (2.29) | 16.9″ (429) | 0.69″ (18) | 1.71″ (44) | 3/8″ |
| QA6AALS040NP35S08 | 14.8 – 29.5 (20 – 40) | 430 | 14.8 – 25.8 (20 – 35) | 405 | 5.07 (2.30) | 16.9″ (429) | 0.69″ (18) | 1.71″ (44) | 1/2″ |
| QA6AALS055NP35S08 | 18.4 – 40.6 (25 – 55) | 320 | 18.4 – 36.1 (25 – 49) | 300 | 5.07 (2.30) | 16.9″ (429) | 0.69″ (18) | 1.71″ (44) | 1/2″ |
| QA6AALS070NP43S08 | 25.8 – 51.6 (35 – 70) | 225 | 25.8 – 45.7 (35 – 62) | 215 | 5.07 (2.30) | 16.6″ (422) | 0.85″ (22) | 1.76″ (45) | 1/2″ |
| QA6AALS090NP43S08 | 14.8 – 29.5 (20 – 40) | 185 | 33.2 – 59 (45 – 80) | 175 | 5.07 (2.30) | 16.6″ (422) | 0.85″ (22) | 1.76″ (45) | 1/2″ |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
