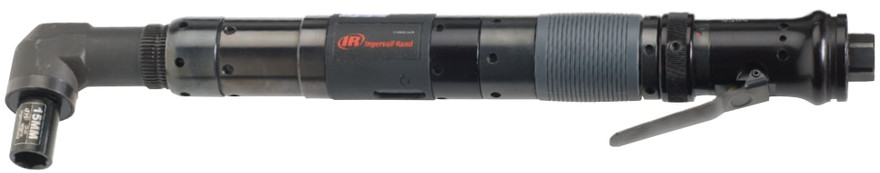

Ingersoll Rand QA6AALD070NP43S08 Angle Air Nutrunner | 1/2" Drive Size | 52 (ft-lbs) Torque | 225 RPM | Lever Start

Built for production fastening where higher torque must be delivered in areas with limited straight-line access, the Ingersoll Rand QA6AALD070NP43S08 Angle Air Nutrunner combines a 1/2" square drive with a 52 ft-lbs torque rating. Its 225 RPM operating speed provides a controlled rundown rate for repetitive fastening, while the lever-start configuration gives the operator direct control over tool activation during each assembly cycle.

Ingersoll Rand QA6AALD070NP43S08 uses an angle-head configuration to position compatible sockets on fasteners where nearby components or assembly geometry can interfere with a straight tool. This combination of 1/2" drive capacity, 52 ft-lbs torque, and pneumatic power makes the tool well suited to structured production environments where consistent fastening procedures and practical fastener access are important.

Type: Angle Air Nutrunner | Drive Size: 1/2" | Torque: 52 ft-lbs | Speed: 225 RPM | Start Type: Lever Start | Series: QA6A Series

Features: 52 ft-lbs torque rating provides fastening output for assembly applications that fall within the tool's specified capability. 1/2" square drive accommodates compatible sockets commonly used for larger assembly fasteners. 225 RPM operating speed provides a controlled approach to fastener rundown during repetitive production cycles. Lever-start control allows direct operator activation at the point of fastening. Angle-head configuration helps position the socket where surrounding parts limit straight-line access to the fastener. Pneumatic operation supports integration into compressed-air-powered assembly workstations. Made in USA:

Applications:

• Production assembly operations requiring a 52 ft-lbs fastening torque specification.
• Machinery assembly where fasteners are positioned near frames, housings, or neighboring components.
• Repetitive fastening processes using compatible 1/2" drive sockets and lever-controlled tool activation.
• Manufacturing workstations where a 225 RPM rundown speed matches the required fastening process.
• Assembly of fabricated components, brackets, equipment structures, and similar bolted connections within the tool's specified capability.

FAQs:

• Q: What torque specification does the QA6AALD070NP43S08 provide?
  A: This model is specified at 52 ft-lbs of torque. The fastening requirement of the application should be checked against this rating before tool selection.
• Q: What socket drive size does this nutrunner use?
  A: The QA6AALD070NP43S08 uses a 1/2" square drive and should be paired with compatible 1/2" drive sockets.
• Q: How is the tool activated during a fastening cycle?
  A: This model uses lever-start operation, allowing the operator to activate the pneumatic tool directly with the lever control.
• Q: Why choose an angle nutrunner instead of an inline model?
  A: The angle-head layout can provide better access when the fastener location or surrounding components prevent convenient straight-line tool positioning.
• Q: What is the operating speed of the QA6AALD070NP43S08?
  A: This model operates at 225 RPM, providing a controlled rundown speed for its specified 52 ft-lbs torque level.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
