Ingersoll Rand QA6AALD040NP35S08 Angle Air Nutrunner is a pneumatic fastening tool configured for production assembly operations requiring controlled fastening and angled access to the workpiece. Featuring a 1/2" drive size, 30 ft-lbs torque, 430 RPM operating speed, and lever start, this model provides a practical combination of torque output and rundown speed for repetitive fastening processes.
Ingersoll Rand QA6AALD040NP35S08 uses an angle-head configuration to help position the socket on fasteners where surrounding components can limit straight-line tool access. Its 1/2" square drive accepts compatible sockets, while the lever-start control gives the operator direct activation during each fastening cycle.
Type: Angle Air Nutrunner | Drive Size: 1/2" | Torque: 30 ft-lbs | Speed: 430 RPM | Start Type: Lever Start | Series: QA6A Series
|
Features:
Made in USA: |
 |
Applications:
- Production assembly operations requiring a 30 ft-lbs fastening torque specification.
- Repetitive fastening processes where lever-start operation provides direct operator control.
- Assembly stations where the angle-head configuration helps reach fasteners positioned around adjacent components or obstructions.
- Fastening of machinery components, fabricated assemblies, brackets, and similar parts using compatible 1/2" drive sockets.
FAQs:
- Q: What torque specification does the QA6AALD040NP35S08 provide?
A: This model is specified at 30 ft-lbs of torque. - Q: What drive size does this angle air nutrunner use?
A: It is equipped with a 1/2" square drive for use with compatible sockets. - Q: How is this Ingersoll Rand nutrunner activated?
A: The QA6AALD040NP35S08 uses a lever-start control for direct operator activation. - Q: What is the operating speed of this model?
A: This angle air nutrunner is rated at 430 RPM. - Q: What should I verify before selecting this nutrunner?
A: Confirm that the 30 ft-lbs torque specification, 1/2" drive size, 430 RPM speed, and angle-head configuration match the fastening and access requirements of the application.

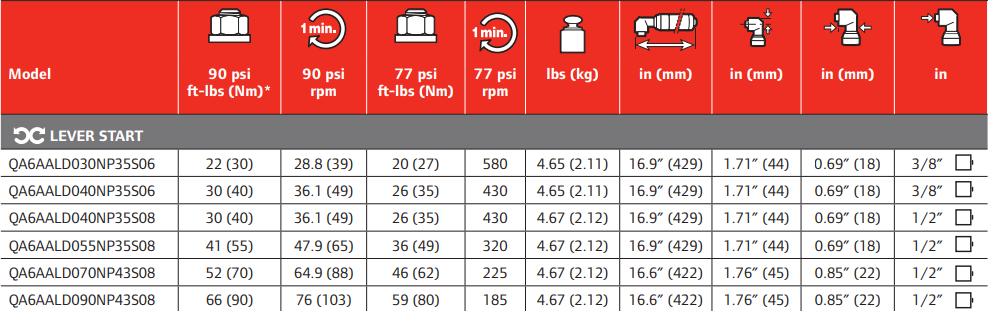

| SKU | 90 psi ft-lbs (Nm)* | 90 psi rpm | 77 psi ft-lbs (Nm) | 77 psi rpm | lbs (kg) | in (mm) | in (mm) | in (mm) | in |
|---|---|---|---|---|---|---|---|---|---|
| Lever Start | |||||||||
| QA6AALD030NP35S06 | 22 (30) | 28.8 (39) | 20 (27) | 580 | 4.65 (2.11) | 16.9″ (429) | 1.71″ (44) | 0.69″ (18) | 3/8″ |
| QA6AALD040NP35S06 | 30 (40) | 36.1 (49) | 26 (35) | 430 | 4.65 (2.11) | 16.9″ (429) | 1.71″ (44) | 0.69″ (18) | 3/8″ |
| QA6AALD040NP35S08 | 30 (40) | 36.1 (49) | 26 (35) | 430 | 4.67 (2.12) | 16.9″ (429) | 1.71″ (44) | 0.69″ (18) | 1/2″ |
| QA6AALD055NP35S08 | 41 (55) | 47.9 (65) | 36 (49) | 320 | 4.67 (2.12) | 16.9″ (429) | 1.71″ (44) | 0.69″ (18) | 1/2″ |
| QA6AALD070NP43S08 | 52 (70) | 64.9 (88) | 46 (62) | 225 | 4.67 (2.12) | 16.6″ (422) | 1.76″ (45) | 0.85″ (22) | 1/2″ |
| QA6AALD090NP43S08 | 66 (90) | 76 (103) | 59 (80) | 185 | 4.67 (2.12) | 16.6″ (422) | 1.76″ (45) | 0.85″ (22) | 1/2″ |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
