Ingersoll Rand QA6AALD055NP35S08 Angle Air Nutrunner | 1/2" Drive Size | 41 (ft-lbs) Torque | 320 RPM | Lever Start

Ingersoll Rand QA6AALD055NP35S08 Angle Air Nutrunner is a pneumatic fastening tool configured for production assembly operations requiring controlled fastening and angled access to the workpiece. Featuring a 1/2" drive size, 41 ft-lbs torque, 320 RPM operating speed, and lever start, this model combines higher fastening output with a controlled rundown speed for repetitive assembly processes.

Ingersoll Rand QA6AALD055NP35S08 uses an angle-head configuration to help position the socket where surrounding components or assembly geometry limit straight-line tool access. Its 1/2" square drive accepts compatible sockets, while the lever-start control provides direct operator activation during each fastening cycle.

Type: Angle Air Nutrunner | Drive Size: 1/2" | Torque: 41 ft-lbs | Speed: 320 RPM | Start Type: Lever Start | Series: QA6A Series

Features: 1/2" square drive accepts compatible sockets for repetitive production fastening operations. 41 ft-lbs torque specification supports assembly applications requiring this level of fastening output. 320 RPM operating speed provides controlled fastener rundown for repetitive assembly cycles. Lever-start control gives the operator direct activation of the tool at the fastening station. Angle-head configuration helps reach fasteners where adjacent components or the assembly layout restrict straight-line access. Pneumatic operation supports use in compressed-air-powered production and assembly workstations. Made in USA:

Applications:

• Production assembly operations requiring a 41 ft-lbs fastening torque specification.
• Repetitive fastening processes where lever-start operation provides direct operator control.
• Assembly stations where angled tool access helps reach fasteners positioned near adjacent components or obstructions.
• Fastening of machinery components, fabricated assemblies, brackets, and similar parts using compatible 1/2" drive sockets.

FAQs:

• Q: What torque specification does the QA6AALD055NP35S08 provide?
  A: This model is specified at 41 ft-lbs of torque.
• Q: What drive size does this angle air nutrunner use?
  A: It is equipped with a 1/2" square drive for use with compatible sockets.
• Q: How is the QA6AALD055NP35S08 activated?
  A: This model uses a lever-start control for direct operator activation during the fastening cycle.
• Q: What is the operating speed of this model?
  A: The QA6AALD055NP35S08 is rated at 320 RPM.
• Q: What should I verify before selecting this nutrunner?
  A: Confirm that the 41 ft-lbs torque specification, 1/2" drive size, 320 RPM speed, and angle-head configuration match the fastening and access requirements of the application.

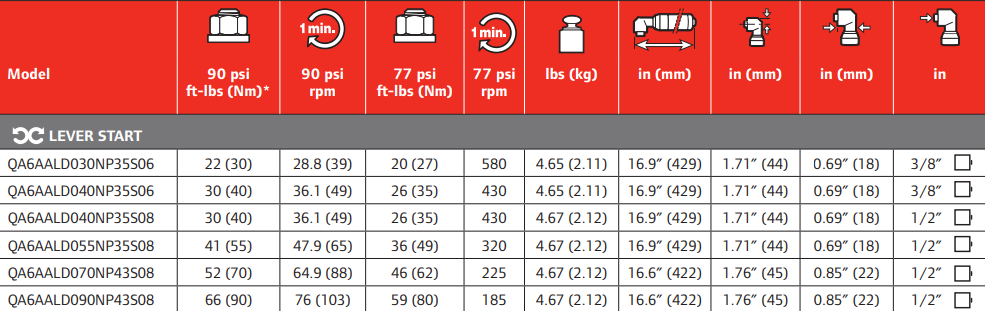

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
