Ingersoll Rand QA6AALD030NP35S06 Angle Air Nutrunner | 3/8" Drive Size | 22 (ft-lbs) Torque | 580 RPM | Lever Start

Ingersoll Rand QA6AALD030NP35S06 Angle Air Nutrunner is a pneumatic fastening tool designed for production assembly operations that require controlled torque and angled access to fasteners. Featuring a 3/8" drive size, 22 ft-lbs torque, 580 RPM operating speed, and lever start, this model provides a practical combination of fastening capability and rundown speed for repetitive assembly processes.

Ingersoll Rand QA6AALD030NP35S06 uses an angle-head configuration to help position the socket where surrounding components can restrict straight-line tool access. Its 3/8" square drive accepts compatible sockets, while the lever-start control provides direct operator activation during fastening cycles.

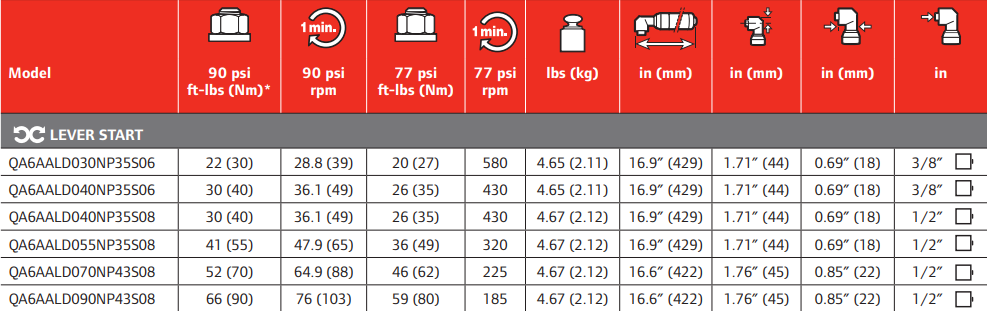

Type: Angle Air Nutrunner | Drive Size: 3/8" | Torque: 22 ft-lbs | Speed: 580 RPM | Start Type: Lever Start | Series: QA6A Series

Features: 3/8" square drive accepts compatible sockets for repetitive production fastening operations. 22 ft-lbs torque specification supports assembly applications requiring this level of fastening output. 580 RPM operating speed provides efficient fastener rundown for repetitive assembly cycles. Lever-start control gives the operator direct activation of the tool during the fastening process. Angle-head configuration helps reach fasteners where nearby components or assembly geometry limit straight-line access. Pneumatic operation supports use in compressed-air-powered production and assembly workstations. Made in USA:

Applications:

• Production assembly operations requiring a 22 ft-lbs fastening torque specification.
• Repetitive fastening processes where lever-start operation provides direct operator control.
• Assembly stations where the angle-head configuration helps access fasteners positioned around adjacent components.
• Fastening of machinery components, brackets, fabricated assemblies, and similar parts using compatible 3/8" drive sockets.

FAQs:

• Q: What torque specification does the QA6AALD030NP35S06 provide?
  A: This model is specified at 22 ft-lbs of torque.
• Q: What drive size does this angle air nutrunner use?
  A: It is equipped with a 3/8" square drive for use with compatible sockets.
• Q: How is the QA6AALD030NP35S06 activated?
  A: This model uses a lever-start control for direct operator activation.
• Q: What is the operating speed of this model?
  A: The QA6AALD030NP35S06 is rated at 580 RPM.
• Q: Why choose an angle-head nutrunner for an assembly station?
  A: The angle-head configuration can provide more practical access when adjacent components or the assembly layout restrict the positioning of a straight tool.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
