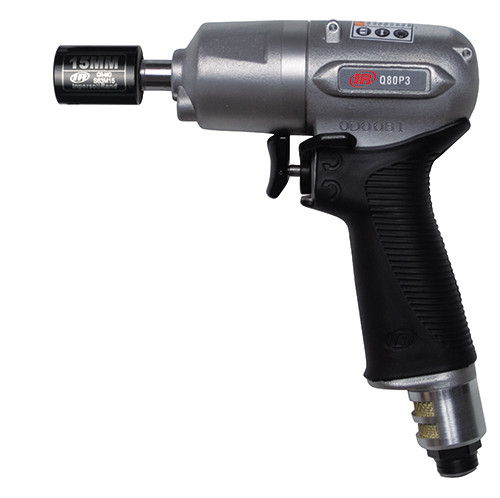

Ingersoll Rand Q80P3 Pistol Grip Air Pulse Tool is engineered for repetitive industrial fastening applications that require smooth power delivery, dependable handling, and reduced operator fatigue. Featuring a pistol grip configuration, a non-shut-off clutch, 7,000 RPM free speed, and a 3/8" square drive, this pneumatic pulse tool utilizes an oil pulse mechanism to help minimize torque reaction while delivering controlled fastening performance. The pistol grip design provides comfortable operation during extended production shifts and accommodates a wide range of socket-driven fastening applications.
The Q80P3 is designed for production environments where the operator controls the fastening cycle while benefiting from smooth pulse technology. Its combination of high operating speed and a 3/8-inch square drive makes it well suited for automotive assembly, industrial manufacturing, appliance production, and other repetitive fastening operations requiring dependable performance.
Type: Pistol Grip Pneumatic Pulse Tool | Model: Q80P3 | Clutch Type: Non-Shut-Off | Configuration: Pistol Grip | Free Speed: 7,000 RPM | Drive Size: 3/8" Square
Features:
- Pistol grip configuration provides comfortable handling during repetitive fastening operations.
- Oil pulse mechanism helps reduce torque reaction, improving operator comfort and control compared to conventional impact tools.
- Non-shut-off operation allows the operator to control the fastening cycle based on application requirements.
- 7,000 RPM free speed supports efficient fastening cycles in demanding production environments.
- 3/8-inch square drive accepts compatible industrial sockets for a variety of assembly applications.
- Designed for manufacturing operations requiring smooth fastening performance and dependable production efficiency.
Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Automotive component and vehicle assembly.
- Industrial machinery and equipment manufacturing.
- Appliance production and general manufacturing operations.
- Assembly lines utilizing 3/8-inch drive sockets for repetitive fastening.
- Production environments where reduced torque reaction helps improve operator comfort during extended use.
FAQs:
- Q: What are the benefits of the pistol grip configuration?
A: The pistol grip design offers a comfortable, familiar grip that helps improve control during repetitive industrial fastening tasks. - Q: What does non-shut-off operation mean?
A: A non-shut-off pulse tool does not automatically stop at a preset torque. The operator controls when the fastening cycle is complete. - Q: What drive size does the Q80P3 use?
A: The tool features a 3/8-inch square drive for use with compatible industrial sockets. - Q: What free speed does this pulse tool provide?
A: The catalog specifies a free speed of 7,000 RPM. - Q: Does the catalog specify the torque range, weight, air consumption, air inlet size, or operating pressure?
A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.
| SKU | Fastener Size | Torque | Free Speed | Weight | Overall Length | Side to Center | Drive Size and Type | Air Consumption |
|---|---|---|---|---|---|---|---|---|
| ft-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm | ||
| Pistol | ||||||||
| 100PQ1 | M4 - M5 | 5.5 - 8 (7.5 - 11) | 9300 | 1.6 (0.7) | 5.6 (142) | 0.7 (18) | 1/4" Hex Quick-Change Drive | 12 |
| Q60P3 | M6 | 10 - 16 (13 - 22) | 4000 | 1.8 (0.8) | 5.1 (130) | 0.9 (22) | 3/8" Square Drive | 11 |
| Q60PQ1 | M6 | 8 - 15 (11 - 20) | 4000 | 1.8 (0.8) | 5.1 (130) | 0.9 (22) | 1/4" Hex Quick-Change Drive | 11 |
| Q70P3 | M6 - M8 | 18 - 25 (24 - 35) | 7000 | 1.8 (0.8) | 5.2 (131) | 0.9 (22) | 3/8" Square Drive | 11 |
| Q70PQ1 | M6 - M8 | 15 - 20 (20 - 28) | 7000 | 1.8 (0.8) | 5.2 (131) | 0.9 (22) | 1/4" Hex Quick-Change Drive | 12 |
| Q80PQ1 | M8 | 18 - 25 (24 - 35) | 7000 | 1.9 (0.9) | 5.4 (138) | 0.9 (22) | 1/4" Hex Quick-Change Drive | 12 |
| Q80P3 | M8 | 24 - 37 (34 - 50) | 7000 | 1.9 (0.9) | 5.4 (138) | 0.9 (22) | 3/8" Square Drive | 12 |
| Q90P3 | M8 - M10 | 35 - 48 (47 - 65) | 6500 | 2.1 (1.0) | 5.8 (148) | 0.9 (23) | 3/8" Square Drive | 14 |
| Q110P4 | M10 - M12 | 44 - 70 (60 - 95) | 5500 | 3.0 (1.4) | 6.5 (164) | 1.1 (27) | 1/2" Square Drive | 20 |
| Q120P4 | M12 | 70 - 95 (95 - 130) | 6600 | 3.7 (1.7) | 6.9 (175) | 1.3 (29) | 1/2" Square Drive | 20 |
| Q140P4 | M14 | 95 - 118 (130 - 160) | 5400 | 4.9 (2.2) | 7.5 (190) | 1.3 (33) | 1/2" Square Drive | 30 |
| 140P6 | M16 | 118 - 199 (160 - 270) | 3200 | 6.8 (3.1) | 8.9 (226) | 1.4 (36) | 3/4" Square Drive | 26 |
| 3000P | M16 - M18 | 170 - 258 (230 - 350) | 4700 | 10.1 (4.6) | 9.7 (246) | 1.6 (40) | 3/4" Square Drive | 10 |
| Inline | ||||||||
| 180SQ1 | M4 - M6 | 11 - 18 (15 - 24) | 9000 | 20 (0.9) | 8.7 (221) | 0.9 (22) | 1/4" Hex Quick-Change Drive | 9 |
| 280SQ1 | M6 - M8 | 15 - 23 (20 - 31) | 8000 | 21 (10) | 9.0 (229) | 0.9 (22) | 1/4" Hex Quick-Change Drive | 11 |
| 380SQ1 | M8 | 21 - 30 (29 - 40) | 8500 | 26 (1.2) | 9.1 (231) | 1.0 (25) | 1/4" Hex Quick-Change Drive | 11 |
| Angle | ||||||||
| 500A | M6 - M8 | 21 - 29 (29 - 39) | 7000 | 3.3 (1.5) | 10.5 (267) | 1.1 (27) | 3/8" Square Drive | 11 |
Looking for more information about Ingersoll Rand Pulse Tool? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Pulse Tools for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Pulse Tool
- Bolt Capacity
- M8
- Torque Range (ft-lbs)
- 24 - 37
- Torque Range (Nm)
- 34 - 50
- RPM
- 7000
- Length (in.)
- 5.4
- Side to Center (in.)
- 0.9
- Drive Type
- Square Drive
- Drive Size (in.)
- 3/8
- Air Consumption (CFM)
- 12
- Air Inlet
- 1/4" NPT
- Hose Size (in.)
- 3/8
