Ingersoll Rand Q60PQ1 Pneumatic Pulse Tool | Non Shut-Off | 4,000 RPM | 8 - 15 (ft-lbs) Torque Range | 1/4" Quick Change Drive

Ingersoll Rand Q60PQ1 Pneumatic Pulse Tool is built for precision fastening applications that require smooth power delivery, quick bit changes, and dependable medium-torque performance. Featuring a non shut-off clutch, 4,000 RPM free speed, an 8–15 ft-lbs torque range, and a 1/4" quick change drive, this pneumatic pulse tool utilizes an oil pulse mechanism to help reduce torque reaction while providing controlled fastening for repetitive production work. The quick change drive enables fast bit replacement, making it an excellent choice for assembly operations with frequent tooling changes.

The Q60PQ1 is designed for industrial manufacturing environments where operators control the fastening cycle while benefiting from reduced vibration and smoother tool operation. Its combination of moderate speed, controlled torque output, and quick change capability makes it suitable for electronics, appliance production, automotive component assembly, and other repetitive fastening applications.

Type: Pneumatic Pulse Tool | Model: Q60PQ1 | Clutch Type: Non Shut-Off | Free Speed: 4,000 RPM | Torque Range: 8–15 ft-lbs | Drive Type: 1/4" Quick Change

Features:

• Oil pulse mechanism helps minimize torque reaction, improving operator comfort during repetitive fastening operations.
• Non shut-off operation allows the operator to control the fastening cycle based on application requirements.
• 1/4-inch quick change drive enables rapid bit replacement, helping reduce production downtime.
• 4,000 RPM free speed provides controlled fastening performance for medium-duty assembly work.
• 8–15 ft-lbs torque range is well suited for repeatable low- to medium-torque fastening applications.
• Designed for continuous manufacturing environments requiring efficient bit changes and consistent fastening performance.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Electronics and electrical equipment assembly.
• Automotive component manufacturing and subassembly.
• Appliance production and light industrial assembly.
• Production lines where frequent bit changes improve workflow efficiency.
• General manufacturing applications requiring smooth, controlled fastening with reduced torque reaction.

FAQs:

• Q: What is the advantage of the 1/4-inch quick change drive?
  A: It allows compatible bits to be replaced quickly without additional tools, helping improve productivity during repetitive assembly operations.
• Q: What does non shut-off mean?
  A: A non shut-off pulse tool does not automatically stop at a preset torque. The operator controls the fastening cycle according to the application's requirements.
• Q: What torque range does the Q60PQ1 provide?
  A: The catalog confirms a fastening torque range of 8–15 ft-lbs.
• Q: Why use a pneumatic pulse tool with a quick change drive?
  A: It combines reduced torque reaction with rapid bit replacement, making it well suited for production environments that require frequent tooling changes.
• Q: Does the catalog specify weight, air consumption, air inlet size, operating pressure, or sound level?
  A: No. Those specifications were not confirmed in the provided source and have therefore been omitted.

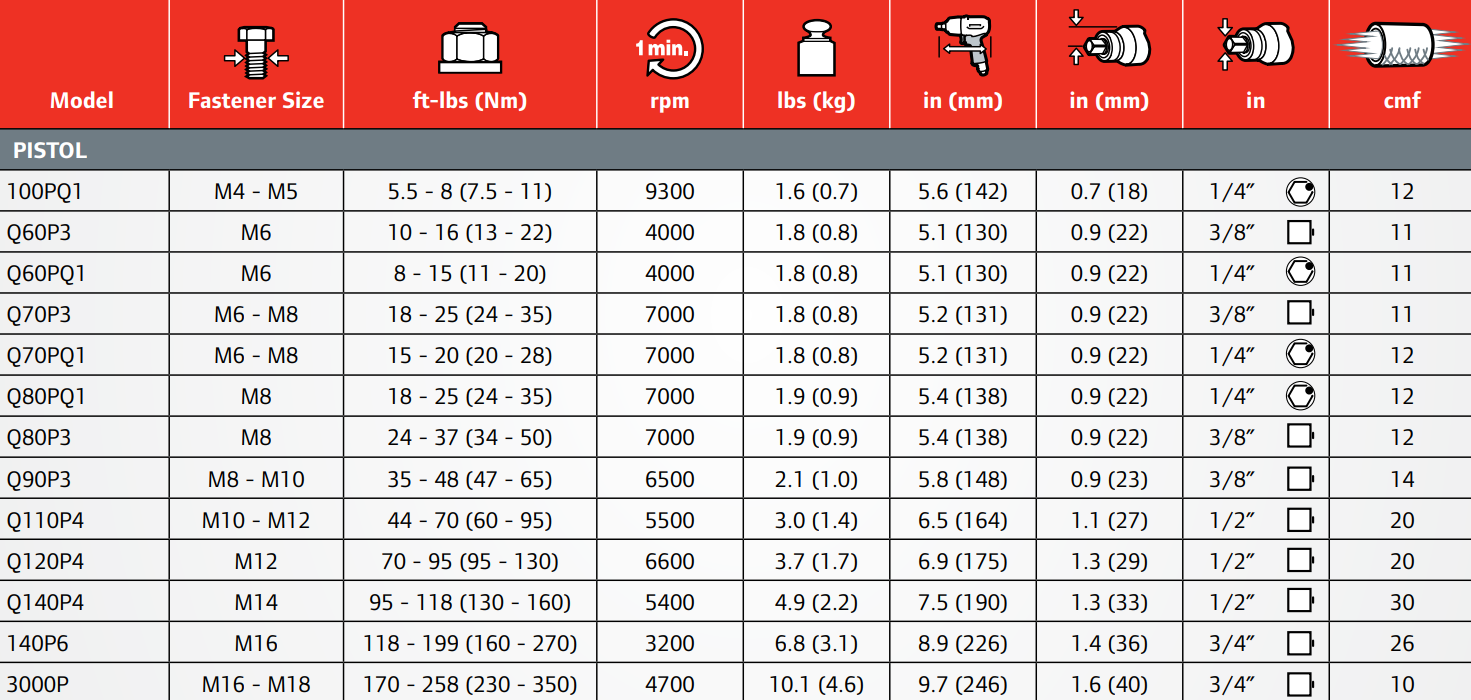

Looking for more information about Ingersoll Rand Pulse Tool? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Pulse Tools for your assembly application, call (800) 608-5210 or email info@intlairtool.com
