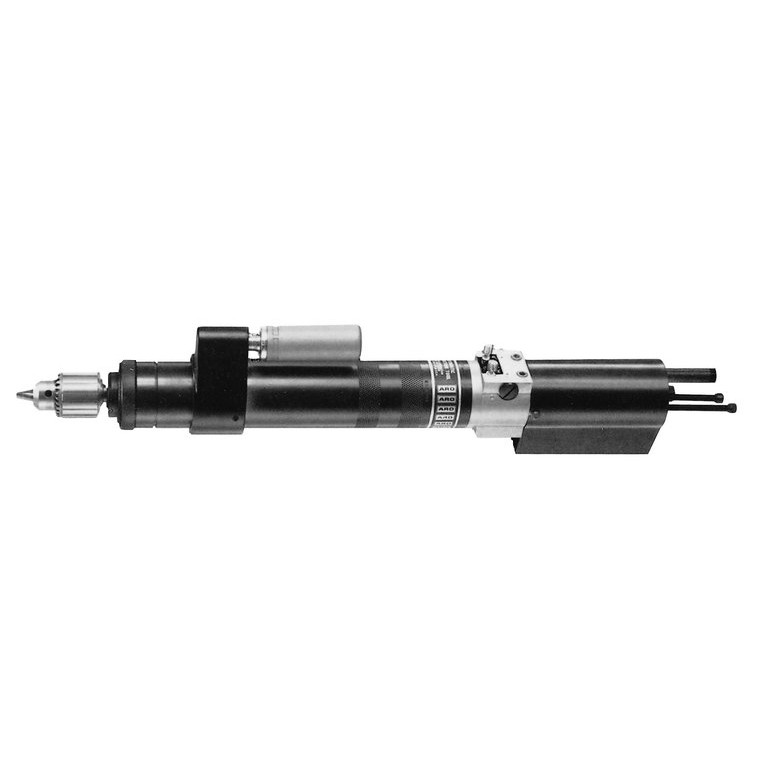

Ingersoll Rand 8265-46-1 is a Super Par-A-Matic Series Self-Feed Air Drill built for production assembly engineering, fixture-mounted drilling, and automated secondary machining. Its 0.75 HP (.56 kW) pneumatic motor delivers a 4,600 RPM free speed through a single gear reduction, while the 1-1/2 in. (38 mm) stroke provides controlled spindle travel for repeatable drilling cycles. The drill has a 1/2 in. (12.7 mm) standard chuck capacity, while actual nominal drilling capacity varies by material, including 1/8 in. in SAE 1213 steel, 1/4 in. in 2024-T4 aluminum, and 5/16 in. in wood, medium or FRP.
Compressed air powers both spindle rotation and the feed/control functions. The double-acting air piston provides controlled forward and retract strokes, while needle-valve controls adjust those movements. An adjustment screw provides infinite stroke-length settings, and the built-in four-way valve permits manual or remote operation. Ball-bearing spindle support provides precision spindle guidance, while the muffled exhaust helps reduce operating noise. The manufacturer specifies 250 lb (1112 N) thrust at 90 PSI, 2.9 ft³/cycle (82 L/cycle) air consumption at working speed, and a sound level of 77 dB(A).
Type: Feed Drill | Series: Super Par-A-Matic | Model: 8265-46-1 | Standard Chuck Capacity: 1/2 in. (12.7 mm) | Capacity in Steel: 1/2 in. (12.7 mm) series capacity | Motor Power: 0.75 HP (.56 kW) | Free Speed: 4,600 RPM | Gear Reduction: Single | Stroke Length: 1-1/2 in. (38 mm) | Nominal Drilling Capacity — SAE 1213 Steel: 1/8 in. (3.2 mm) | Nominal Drilling Capacity — 2024-T4 Aluminum: 1/4 in. (6.4 mm) | Nominal Drilling Capacity — Wood, Medium or FRP: 5/16 in. (7.9 mm) | Nominal Drilling Capacity — Type 304 Stainless Steel: NA | Thrust: 250 lb (1112 N) at 90 PSI
Features:
- The built-in four-way valve enables both manual and remote operation.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings.
- Ball-bearing spindle support provides precision spindle guidance.
- The muffled exhaust helps provide a quieter work environment.
- The rotary-vane air motor provides a high power-to-size ratio for machine integration.
- The pneumatic design can be installed using simple pneumatic circuitry.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Aerospace assembly — producing rivet and mounting holes in suitable fixture-mounted production operations.
- Appliance manufacturing — drilling repeatable panel and frame holes during production assembly.
- Metal fabrication — producing controlled holes in sheet-metal and cast-component work within the specified material capacities.
- Vehicle components — drilling compatible engine-mount, hinge, and body-component holes using suitable fixtures.
- Furniture and cabinet production — producing repeatable dowel, hinge, pilot, and related holes where the specified tooling and material capacities apply.
- Recreational vehicle manufacturing — performing repeatable drilling operations on compatible ATV, snowmobile, and trailer components.
FAQs:
- Q: What is the free speed of the 8265-46-1?
A: The 8265-46-1 has a 4,600 RPM free speed and uses single gear reduction. - Q: What does the “-1” configuration indicate?
A: The -1 configuration provides a 1-1/2 in. (38 mm) stroke. The 8265-46 family is also available in a longer-stroke configuration. - Q: Is the 1/2 in. capacity the maximum hole size?
A: The 1/2 in. specification identifies the standard chuck capacity and the capacity of the Super Par-A-Matic series in steel. The actual nominal drilling capacity of this model varies by material and is 1/8 in. in SAE 1213 steel, 1/4 in. in 2024-T4 aluminum, and 5/16 in. in wood, medium or FRP. - Q: What thrust does the 8265-46-1 provide?
A: The manufacturer specifies 250 lb (1112 N) thrust at 90 PSI. - Q: Can this self-feed drill be used with remote controls?
A: Yes. The built-in four-way valve permits both manual and remote operation for suitable pneumatic production equipment. - Q: What air supply is recommended?
A: The specified operating pressure is 90 PSI (6.2 bar), with a 1/4 in. NPT male air inlet and recommended 3/8 in. hose I.D.
| SKU | Stroke Lengths in (mm) | Free Speed rpm | Stainless Steel Type 304 | Steel SAE 1213 | Aluminum 2024-T4 | Wood Med. or FRP | Thrust @ 90psi lbs (N) | Air Consp.† at Working Speed ft³/cycle (L/cycle) | Sound Level dBa | Standard Chuck Capacity in (mm) | Gear Reduction |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PAR-A-MATIC SERIES | |||||||||||
| 8255-172-2 | 2.0" (51) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-2 | 2.0" (51) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-2 | 2.0" (51) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-2 | 2.0" (51) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-2 | 2.0" (51) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-2 | 2.0" (51) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-2 | 2.0" (51) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-2 | 2.0" (51) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| 8255-172-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-3 | 3.0" (76) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-3 | 3.0" (76) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-3 | 3.0" (76) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-3 | 3.0" (76) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-3 | 3.0" (76) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-3 | 3.0" (76) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-3 | 3.0" (76) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| SUPER PAR-A-MATIC SERIES | |||||||||||
| 8265-171-1 | 1-1/2" (38) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-1 | 1-1/2" (38) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-1 | 1-1/2" (38) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-1 | 1-1/2" (38) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-1 | 1-1/2" (38) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-1 | 1-1/2" (38) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-1 | 1-1/2" (38) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
| 8265-171-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-3 | 3.0" (76) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-3 | 3.0" (76) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-3 | 3.0" (76) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-3 | 3.0" (76) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-3 | 3.0" (76) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-3 | 3.0" (76) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
