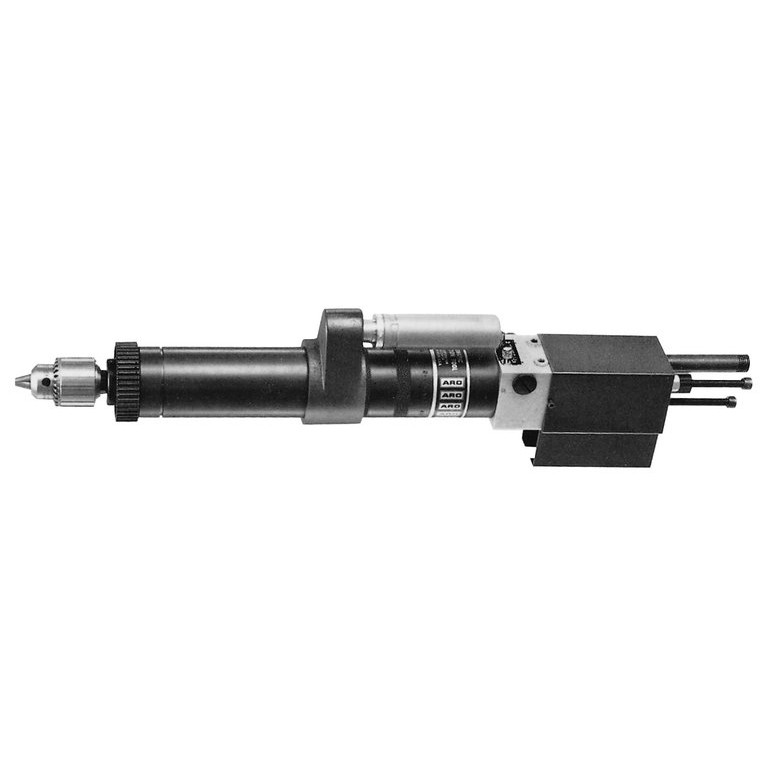

Ingersoll Rand 8255-172-2 is a Par-A-Matic Series Self-Feed Air Drill designed for automated and fixture-mounted drilling applications requiring controlled spindle feed and retract movement. This model combines a 0.50 HP (.37 kW) pneumatic motor with a 17,000 RPM free speed and single gear reduction. The -2 configuration provides a 2 in. (51 mm) stroke, giving production equipment additional spindle travel compared with the 1-1/4 in. version. The model uses a 5/16 in. (7.9 mm) standard chuck; its nominal drilling capacity in SAE 1213 steel is 1/64 in. (0.4 mm).
The Par-A-Matic self-feed system uses compressed air for spindle rotation and feed/control functions. A double-acting air piston provides controlled forward and retract strokes, while needle-valve controls allow adjustment of those movements. The adjustment screw provides infinite stroke-length settings, and the built-in four-way valve permits both manual and remote operation. Ball-bearing spindle support provides precision spindle guidance, while the muffled exhaust helps reduce operating noise. The manufacturer specifies 170 lb (756 N) thrust at 90 PSI, 2.3 ft³/cycle (65 L/cycle) air consumption at working speed, and a 74 dB(A) sound level.
Type: Self-Feed Air Drill | Series: Par-A-Matic | Model: 8255-172-2 | Chuck Capacity: 5/16 in. (7.9 mm) | Motor Power: 0.50 HP (.37 kW) | Free Speed: 17,000 RPM | Gear Reduction: Single | Stroke Length: 2 in. (51 mm) | Thrust: 170 lb (756 N) at 90 PSI | Air Consumption: 2.3 ft³/cycle (65 L/cycle) at working speed | Sound Level: 74 dB(A) | Steel Drilling Capacity: 1/64 in. (0.4 mm) SAE 1213 | Air Inlet: 1/4 in. NPT Male | Control Ports: 1/8 in. NPTF Female | Spindle Thread: 1/2"-20 Male | Recommended Hose I.D.: 5/16 in. | Recommended Operating Pressure: 90 PSI (6.2 bar)
Features:
- The self-feed configuration provides controlled forward and retract movement for repeatable drilling cycles.
- The 0.50 HP pneumatic motor provides spindle power for high-speed drilling operations.
- Single gear reduction provides the drive configuration specified for the 17,000 RPM model.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings for application-specific feed travel.
- The built-in four-way valve permits both manual and remote operation.
- Ball-bearing spindle support provides precision spindle guidance and long service life.
- The muffled exhaust helps provide a quieter work environment during pneumatic operation.
- The 2 in. stroke provides additional spindle travel for compatible production fixtures and drilling equipment.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Automated drilling — performing controlled drilling cycles in suitable pneumatic production equipment.
- Fixture-mounted machining — integrating the drill into dedicated fixtures where a 2 in. stroke is required.
- High-speed small-hole drilling — performing small-diameter drilling operations at the model's specified 17,000 RPM free speed.
- Secondary machining — adding repeatable drilling operations to manufacturing equipment without continuous manual feed control.
- Production machinery — using manual or remote pneumatic control through the built-in four-way valve.
FAQs:
- Q: What is the free speed of the 8255-172-2?
A: The 8255-172-2 has a 17,000 RPM free speed. - Q: What does the “-2” suffix indicate?
A: The -2 configuration identifies the 2 in. (51 mm) stroke version of the 8255-172 model family. - Q: What does single gear reduction mean?
A: It identifies the single gear reduction configuration used in the spindle drive of this 17,000 RPM model. - Q: Is the 5/16 in. capacity the drilling capacity?
A: The 5/16 in. specification refers to the standard chuck capacity. The manufacturer's nominal drilling capacity for SAE 1213 steel is 1/64 in. (0.4 mm) for the 8255-172 configuration. - Q: How much thrust does the 8255-172-2 provide?
A: The manufacturer specifies 170 lb (756 N) thrust at 90 PSI. - Q: What is the air consumption?
A: Air consumption is specified at 2.3 ft³/cycle (65 L/cycle) at working speed. - Q: Can the 8255-172-2 be operated remotely?
A: Yes. The built-in four-way valve permits both manual and remote operation. - Q: What air connection does this model use?
A: The listed configuration uses a 1/4 in. NPT male air inlet, 1/8 in. NPTF female control ports, and a recommended 5/16 in. hose I.D. - Q: What is the difference between the 8255-172-1 and 8255-172-2?
A: Both models use the 17,000 RPM single-reduction configuration, but the -1 version has a 1-1/4 in. stroke while the -2 version has a 2 in. stroke.
| SKU | Stroke Lengths in (mm) | Free Speed rpm | Stainless Steel Type 304 | Steel SAE 1213 | Aluminum 2024-T4 | Wood Med. or FRP | Thrust @ 90psi lbs (N) | Air Consp.† at Working Speed ft³/cycle (L/cycle) | Sound Level dBa | Standard Chuck Capacity in (mm) | Gear Reduction |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PAR-A-MATIC SERIES | |||||||||||
| 8255-172-2 | 2.0" (51) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-2 | 2.0" (51) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-2 | 2.0" (51) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-2 | 2.0" (51) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-2 | 2.0" (51) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-2 | 2.0" (51) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-2 | 2.0" (51) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-2 | 2.0" (51) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| 8255-172-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-3 | 3.0" (76) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-3 | 3.0" (76) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-3 | 3.0" (76) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-3 | 3.0" (76) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-3 | 3.0" (76) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-3 | 3.0" (76) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-3 | 3.0" (76) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| SUPER PAR-A-MATIC SERIES | |||||||||||
| 8265-171-1 | 1-1/2" (38) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-1 | 1-1/2" (38) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-1 | 1-1/2" (38) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-1 | 1-1/2" (38) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-1 | 1-1/2" (38) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-1 | 1-1/2" (38) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-1 | 1-1/2" (38) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
| 8265-171-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-3 | 3.0" (76) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-3 | 3.0" (76) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-3 | 3.0" (76) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-3 | 3.0" (76) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-3 | 3.0" (76) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-3 | 3.0" (76) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
