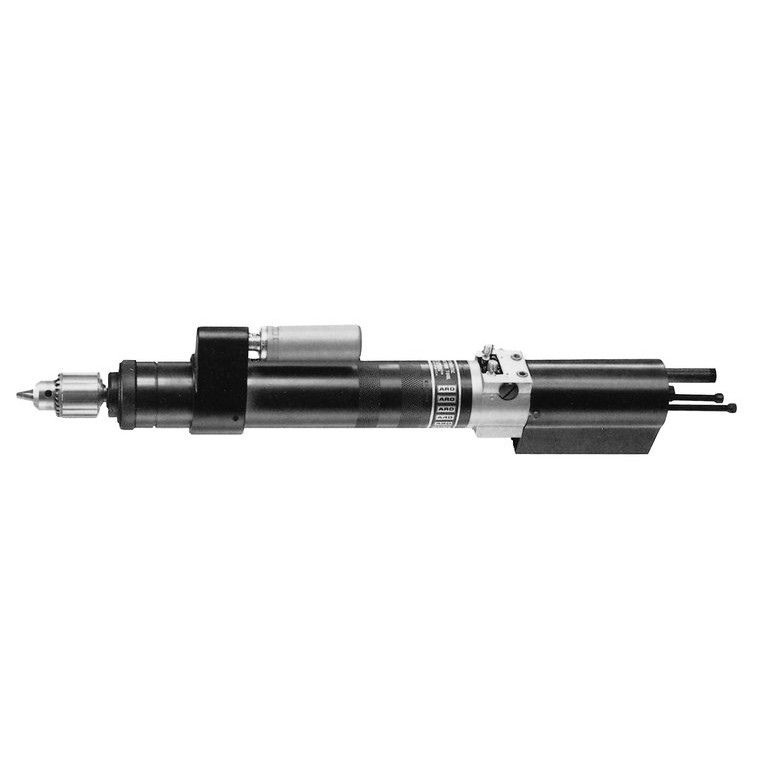

Ingersoll Rand 8265-25-3 is a Super Par-A-Matic Series Self-Feed Air Drill designed for repeatable production drilling, fixture-mounted machining, and automated secondary machining. Its 0.75 HP (.56 kW) pneumatic motor provides a 2,500 RPM free speed through a single gear reduction. The -3 configuration provides a 3 in. (76 mm) stroke, giving production fixtures extended spindle travel for controlled drilling cycles. The drill has a 1/2 in. (12.7 mm) standard chuck capacity and is rated for material-specific drilling capacities in Type 304 stainless steel, SAE 1213 steel, 2024-T4 aluminum, and wood, medium or FRP.
The Super Par-A-Matic feed system uses compressed air for both spindle rotation and feed/control functions. Its double-acting air piston provides smooth, controlled forward and retract strokes, while needle-valve controls allow adjustment of those movements. An adjustment screw provides infinite stroke-length settings, and the built-in four-way valve permits both manual and remote operation. Ball-bearing spindle support provides precision spindle guidance, while the muffled exhaust helps provide a quieter work environment. Manufacturer data specifies 250 lb (1112 N) thrust at 90 PSI, 2.9 ft³/cycle (82 L/cycle) air consumption at working speed, and a 77 dB(A) sound level.
Type: Self-Feed Air Drill | Series: Super Par-A-Matic | Model: 8265-25-3 | Capacity: 1/2 in. (12.7 mm) | Motor Power: 0.75 HP (.56 kW) | Free Speed: 2,500 RPM | Gear Reduction: Single | Stroke Length: 3 in. (76 mm) | Nominal Drilling Capacity — Type 304 Stainless Steel: 3/32 in. (2.4 mm) | Nominal Drilling Capacity — SAE 1213 Steel: 3/16 in. (4.8 mm) | Nominal Drilling Capacity — 2024-T4 Aluminum: 5/16 in. (7.9 mm) | Nominal Drilling Capacity — Wood, Medium or FRP: 7/16 in. (11.1 mm) | Thrust: 250 lb (1112 N) at 90 PSI
Features:
- The built-in four-way valve permits both manual and remote operation.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings.
- Ball-bearing spindle support provides precision spindle guidance and long service life.
- The muffled exhaust helps provide a quieter work environment.
- Single gear reduction provides the specified drive configuration for the 2,500 RPM model.
- The 3 in. stroke provides extended spindle travel for compatible production fixtures.
- The 1/2 in. chuck accommodates compatible tooling within the manufacturer's specified capacity.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Production drilling — performing repeatable holemaking cycles where controlled pneumatic feed and retract movement are required.
- Fixture-mounted machining — integrating the drill into dedicated fixtures where the 3 in. stroke provides the required spindle travel.
- Metalworking — drilling Type 304 stainless steel and SAE 1213 steel within the manufacturer's nominal capacities.
- Aluminum machining — drilling 2024-T4 aluminum within the specified nominal capacity.
- Automated secondary machining — incorporating controlled drilling cycles into suitable pneumatic production equipment.
- Production assembly — performing repeatable drilling operations where pneumatic feed control is beneficial.
FAQs:
- Q: What is the free speed of the 8265-25-3?
A: The 8265-25-3 has a 2,500 RPM free speed and uses single gear reduction. - Q: What does the “-3” configuration indicate?
A: The -3 configuration provides a 3 in. (76 mm) stroke, giving the spindle additional travel compared with the 1-1/2 in. - Q: What are the material-specific drilling capacities?
A: The manufacturer lists 3/32 in. (2.4 mm) in Type 304 stainless steel, 3/16 in. (4.8 mm) in SAE 1213 steel, 5/16 in. (7.9 mm) in 2024-T4 aluminum, and 7/16 in. (11.1 mm) in wood, medium or FRP. - Q: Is the 1/2 in. specification the drilling capacity for every material?
A: No. The 1/2 in. specification identifies the standard chuck capacity. Actual nominal drilling capacity varies according to the workpiece material. - Q: Can the 8265-25-3 be operated remotely?
A: Yes. The built-in four-way valve permits both manual and remote operation for suitable pneumatic control arrangements. - Q: What air pressure is used for the published performance data?
A: The manufacturer publishes the performance data at 90 PSI (6.2 bar) operating pressure.

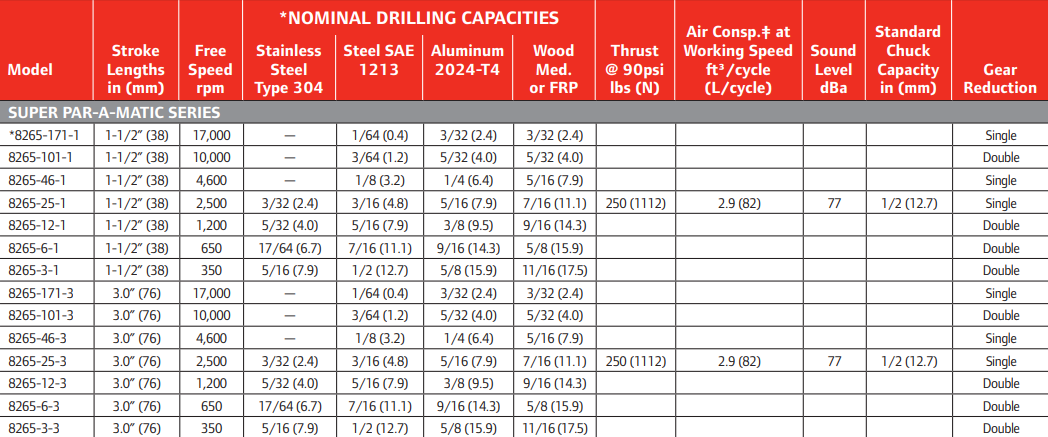

| SKU | Stroke Lengths in (mm) | Free Speed rpm | Stainless Steel Type 304 | Steel SAE 1213 | Aluminum 2024-T4 | Wood Med. or FRP | Thrust @ 90psi lbs (N) | Air Consp.† at Working Speed ft³/cycle (L/cycle) | Sound Level dBa | Standard Chuck Capacity in (mm) | Gear Reduction |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PAR-A-MATIC SERIES | |||||||||||
| 8255-172-2 | 2.0" (51) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-2 | 2.0" (51) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-2 | 2.0" (51) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-2 | 2.0" (51) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-2 | 2.0" (51) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-2 | 2.0" (51) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-2 | 2.0" (51) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-2 | 2.0" (51) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| 8255-172-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-3 | 3.0" (76) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-3 | 3.0" (76) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-3 | 3.0" (76) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-3 | 3.0" (76) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (79) | Single |
| 8255-A14-3 | 3.0" (76) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-3 | 3.0" (76) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-3 | 3.0" (76) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
| SUPER PAR-A-MATIC SERIES | |||||||||||
| 8265-171-1 | 1-1/2" (38) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-1 | 1-1/2" (38) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-1 | 1-1/2" (38) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-1 | 1-1/2" (38) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-1 | 1-1/2" (38) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-1 | 1-1/2" (38) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-1 | 1-1/2" (38) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
| 8265-171-3 | 3.0" (76) | 17,000 | — | 1/64 (0.4) | 3/32 (2.4) | 3/32 (2.4) | Single | ||||
| 8265-101-3 | 3.0" (76) | 10,000 | — | 3/64 (1.2) | 5/32 (4.0) | 5/32 (4.0) | Double | ||||
| 8265-46-3 | 3.0" (76) | 4,600 | — | 1/8 (3.2) | 1/4 (6.4) | 5/16 (7.9) | Single | ||||
| 8265-25-3 | 3.0" (76) | 2,500 | 3/32 (2.4) | 3/16 (4.8) | 5/16 (7.9) | 7/16 (11.1) | 250 (1112) | 2.9 (82) | 77 | 1/2 (12.7) | Single |
| 8265-12-3 | 3.0" (76) | 1,200 | 5/32 (4.0) | 5/16 (7.9) | 3/8 (9.5) | 9/16 (14.3) | Double | ||||
| 8265-6-3 | 3.0" (76) | 650 | 17/64 (6.7) | 7/16 (11.1) | 9/16 (14.3) | 5/8 (15.9) | Double | ||||
| 8265-3-3 | 3.0" (76) | 350 | 5/16 (7.9) | 1/2 (12.7) | 5/8 (15.9) | 11/16 (17.5) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Feed Drill
- RPM
- 2500
- Gear Reduction
- Single
- Air Consumption @ Working Speed ft³/cycle (l/cycle)
- 2.9 (82)
- Thrust @ 90 PSI (lbs) (N)
- 250 (1112)
- Sound Level (dBA)
- 77
- Stroke Length (in.)
- 3
- Stroke Length (mm)
- 76
- Nominal Drilling Capacities Wood Med. or FRP
- 7/16 (11.1)
- Nominal Drilling Capacities Stainless Steel Type 304
- 3/32 (2.4)
- Nominal Drilling Capacities Steel SAE 1213
- 3/16 (4.8)
- Nominal Drilling Capacities Aluminum 2024-T4
- 5/16 (7.9)
- Capacity (in.)
- 1/2
- Power (hp)
- .75
- Air Inlet
- 1/4" NPT Male
- Hose Size (in.)
- 3/8
