Built for reliable hose management in industrial facilities, maintenance operations, construction sites, and mobile service vehicles, the Coxreels 1125-5-50-E electric motor rewind hose reel combines compact hose capacity with the convenience of powered retrieval. Equipped with a 12V DC 1/3 HP electric motor, this reel provides efficient hose rewind while accommodating up to 50 feet of 3/4-inch hose. Its 3000 PSI maximum operating pressure makes it well suited for high-pressure fluid transfer applications where organized hose storage and quick retrieval improve workflow and reduce manual effort.
As part of the 1125 Series, this model is supplied in a Less Hose configuration, allowing users to install the hose that best matches their specific operating media and pressure requirements. The powered rewind system helps reduce hose handling time while minimizing hose kinks, abrasion, and unnecessary wear, keeping hose assemblies protected between uses.

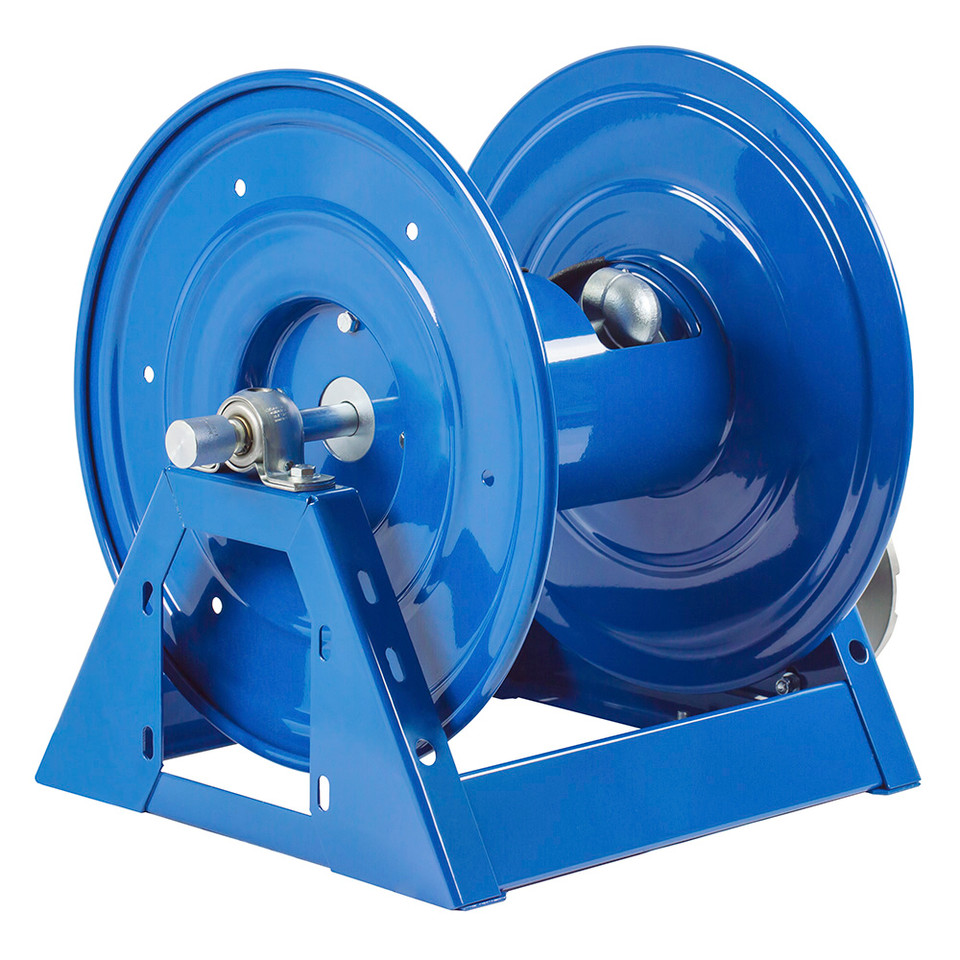

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-50-E | Motor: 12V DC, 1/3 HP | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 50 ft | Maximum Pressure: 3000 PSI
Features:
- 12V DC 1/3 HP electric motor provides powered hose rewind for faster retrieval with reduced manual effort.
- Designed to accommodate up to 50 feet of 3/4-inch hose for high-pressure hose management applications.
- 3000 PSI maximum pressure rating supports demanding industrial service when paired with compatible hose and fittings.
- Less hose configuration allows users to install the hose that best suits their specific application requirements.
- 1125 Series construction promotes organized hose storage while helping reduce hose wear caused by dragging, twisting, and improper coiling.
- Powered rewind system improves efficiency by reducing the time required to recover and store hose after use.
Made in USA:
Features:
- Industrial maintenance facilities requiring efficient storage and powered retrieval of high-pressure hose assemblies.
- Construction and equipment service operations utilizing 12V DC electrical systems.
- Fleet maintenance and mobile service trucks where powered hose management improves productivity.
- Manufacturing plants performing routine fluid transfer and equipment servicing.
- General industrial applications using compatible 3/4-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. A compatible 3/4-inch hose must be purchased separately to meet your application requirements. - Q: What powers the hose rewind system?
A: This model uses a 12V DC, 1/3 HP electric motor to provide powered hose rewind, reducing manual handling during hose retrieval. - Q: How much hose can this reel accommodate?
A: The reel is designed to store up to 50 feet of 3/4-inch hose, depending on the hose's outside diameter and construction. - Q: Is this reel suitable for high-pressure applications?
A: Yes. It is rated for a maximum operating pressure of 3000 PSI when used with compatible hose, fittings, and operating conditions.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-50 | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 | 6 |
| 1125-5-50-A | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-A | 4,500 | 38 | 6 |
| 1125-5-50-AB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-AB | 4,500 | 38 | 6 |
| 1125-5-50-C | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-C | 4,500 | 38 | 6 |
| 1125-5-50-E | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-E | 4,500 | 38 | 6 |
| 1125-5-50-EA | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EA | 4,500 | 38 | 6 |
| 1125-5-50-EB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EB | 4,500 | 38 | 6 |
| 1125-5-50-ED | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-ED | 4,500 | 38 | 6 |
| 1125-5-50-EF | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EF | 4,500 | 38 | 6 |
| 1125-5-50-H | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-H | 4,500 | 38 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Motor Rewind Hose Reel
- Series
- 1125 Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/4
- Hose Length (ft.)
- 50
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Width (in.)
- 20
- Height (in.)
- 19.25
- Length (in.)
- 17.63
- Mounting Pattern (in.)
- 9.44M
- Mounting Pattern (in.)
- 10N
- Base (in.)
- 11.38X
- Base (in.)
- 16Y
