Built for dependable manual hose management in industrial facilities, maintenance shops, construction sites, and service vehicles, the Coxreels 1125-5-50-C hand crank hose reel offers a practical solution for storing and deploying high-pressure hose assemblies. Designed to hold up to 50 feet of 3/4-inch hose and rated for a maximum working pressure of 3000 PSI, this 1125 Series reel provides controlled manual hose retrieval while helping maintain an organized and efficient work environment.
Supplied in a Less Hose configuration, this reel allows users to install the hose best suited to their pressure, media, and application requirements. The hand crank rewind mechanism provides reliable operation without requiring electrical or pneumatic power, making it a practical choice for fixed installations and mobile applications where simplicity and dependable performance are priorities.

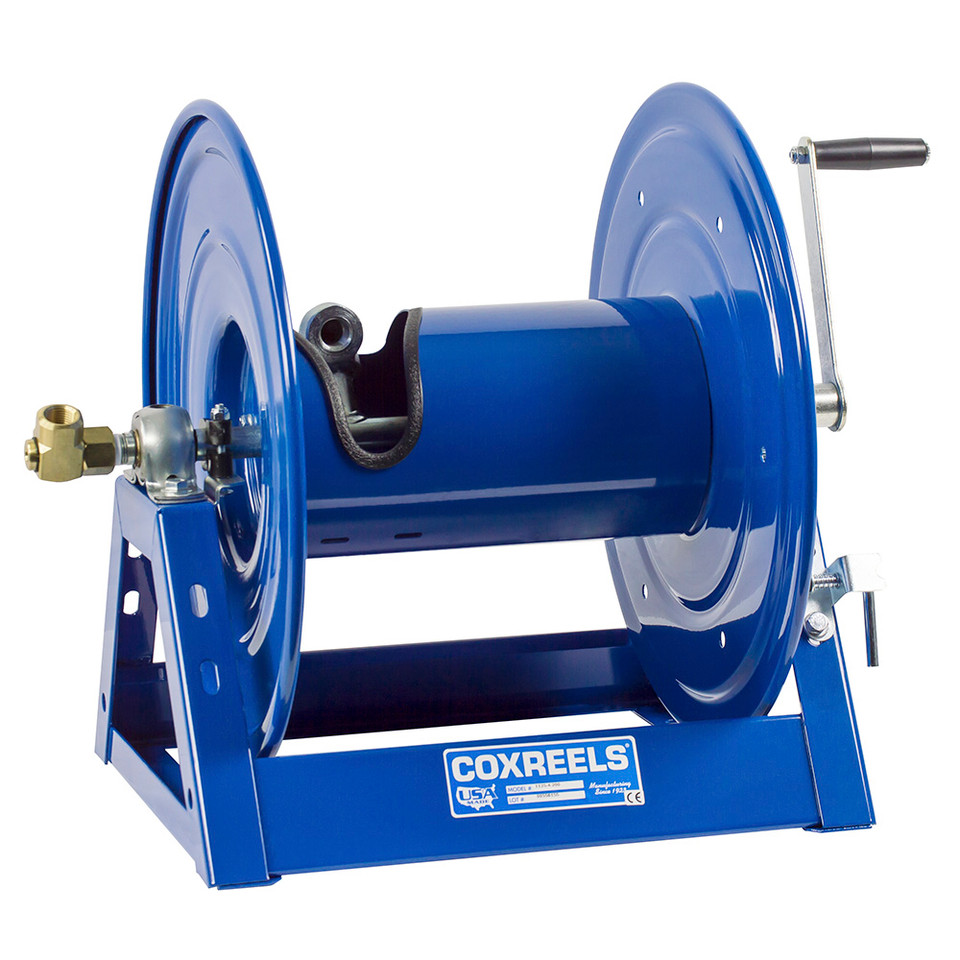

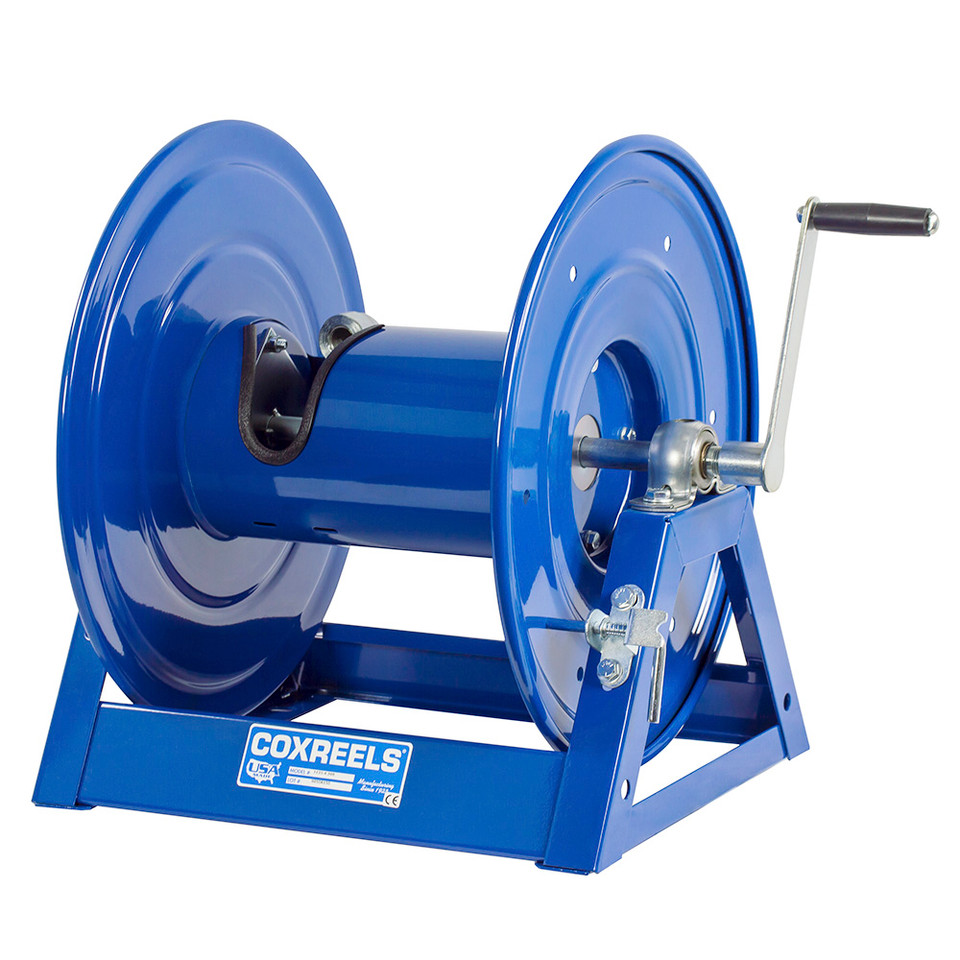

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | Model: 1125-5-50-C | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 50 ft | Maximum Pressure: 3000 PSI
Features:
- Manual hand crank rewind provides dependable hose retrieval without requiring electrical or pneumatic power.
- Designed to accommodate up to 50 feet of 3/4-inch hose for high-pressure hose management applications.
- 3000 PSI maximum pressure rating supports demanding industrial service when used with compatible hose and fittings.
- Less hose configuration allows users to select the hose that best matches their specific operating requirements.
- 1125 Series construction promotes organized hose storage while helping reduce hose wear from dragging, twisting, and improper coiling.
- Simple manual operation offers reliable performance with minimal maintenance requirements.
Made in USA:
Applications:
- Industrial maintenance facilities requiring manual storage of high-pressure hose assemblies.
- Construction and equipment service operations where power is not readily available.
- Service trucks and mobile maintenance units using manually operated hose reels.
- Manufacturing plants performing routine fluid transfer and equipment maintenance tasks.
- General industrial applications utilizing compatible 3/4-inch high-pressure hose.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hose installed. A compatible 3/4-inch hose must be purchased separately to suit your application. - Q: How is the hose rewound?
A: The reel uses a manual hand crank, allowing the hose to be retrieved without requiring electrical or pneumatic power. - Q: What hose capacity does this reel provide?
A: The reel is designed to accommodate up to 50 feet of 3/4-inch hose, depending on the hose's outside diameter and construction. - Q: Is this reel suitable for high-pressure applications?
A: Yes. It has a maximum working pressure rating of 3000 PSI when paired with compatible hose, fittings, and operating conditions.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-50 | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 | 6 |
| 1125-5-50-A | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-A | 4,500 | 38 | 6 |
| 1125-5-50-AB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-AB | 4,500 | 38 | 6 |
| 1125-5-50-C | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-C | 4,500 | 38 | 6 |
| 1125-5-50-E | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-E | 4,500 | 38 | 6 |
| 1125-5-50-EA | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EA | 4,500 | 38 | 6 |
| 1125-5-50-EB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EB | 4,500 | 38 | 6 |
| 1125-5-50-ED | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-ED | 4,500 | 38 | 6 |
| 1125-5-50-EF | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EF | 4,500 | 38 | 6 |
| 1125-5-50-H | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-H | 4,500 | 38 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
