When a 3/4" hose assembly needs powered rewind without relying on an electric motor, the Coxreels 1125-5-50-AB provides a compact motorized reel platform for air, grease/hydraulic, oil/lubrication, washdown, pressure washing, and other compatible medium-pressure service. This 1125 Series reel is built for up to 50 ft of 3/4" I.D. hose with a 3000 PSI maximum pressure rating, giving maintenance teams a controlled way to store larger hose while keeping walkways, service bays, and mobile equipment areas more organized.
The compressed air #6 Gast motor rewind uses shop air to power hose retraction, which can be especially useful on service trucks, plant maintenance stations, and work cells where air is readily available and manual rewind is not preferred. The one-piece welded steel "A" frame, low-profile outlet riser, open drum slot, and direct gear drive help the hose wrap evenly while supporting reliable operation in daily hose handling work. Because this model is supplied less hose, buyers can choose a hose assembly that matches their pressure, media, temperature, and fitting requirements.

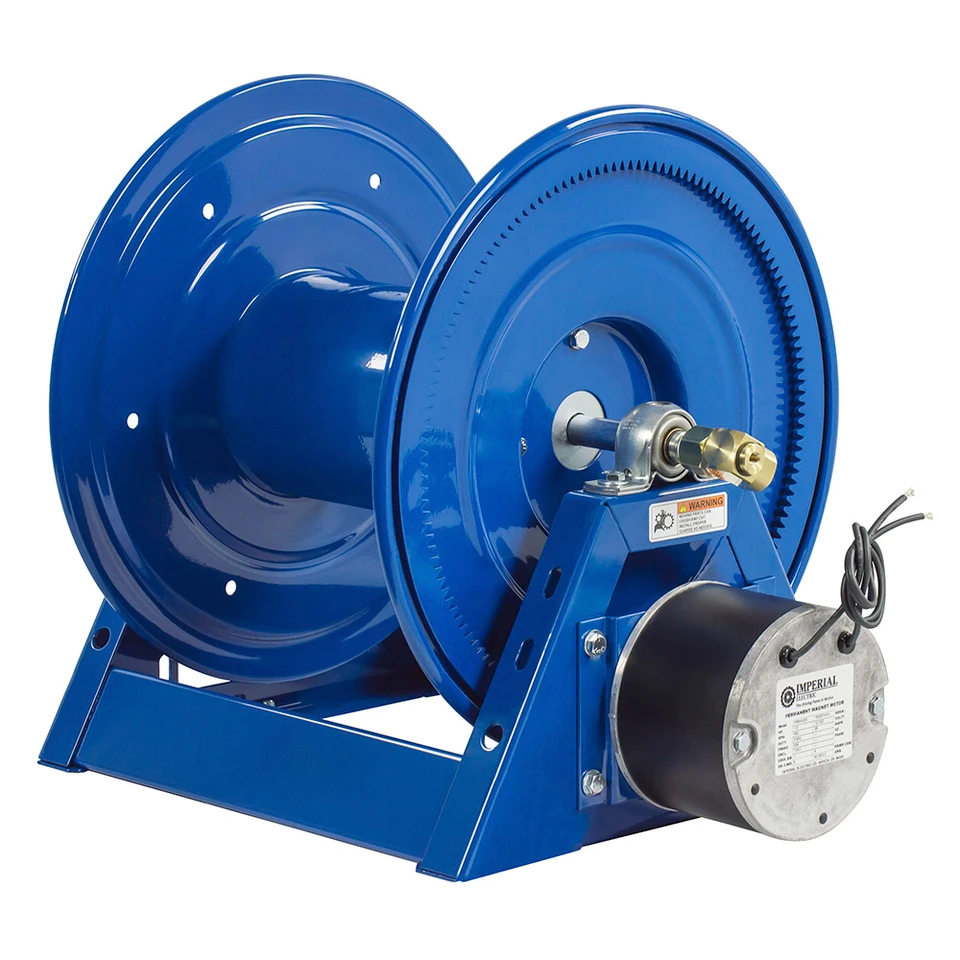

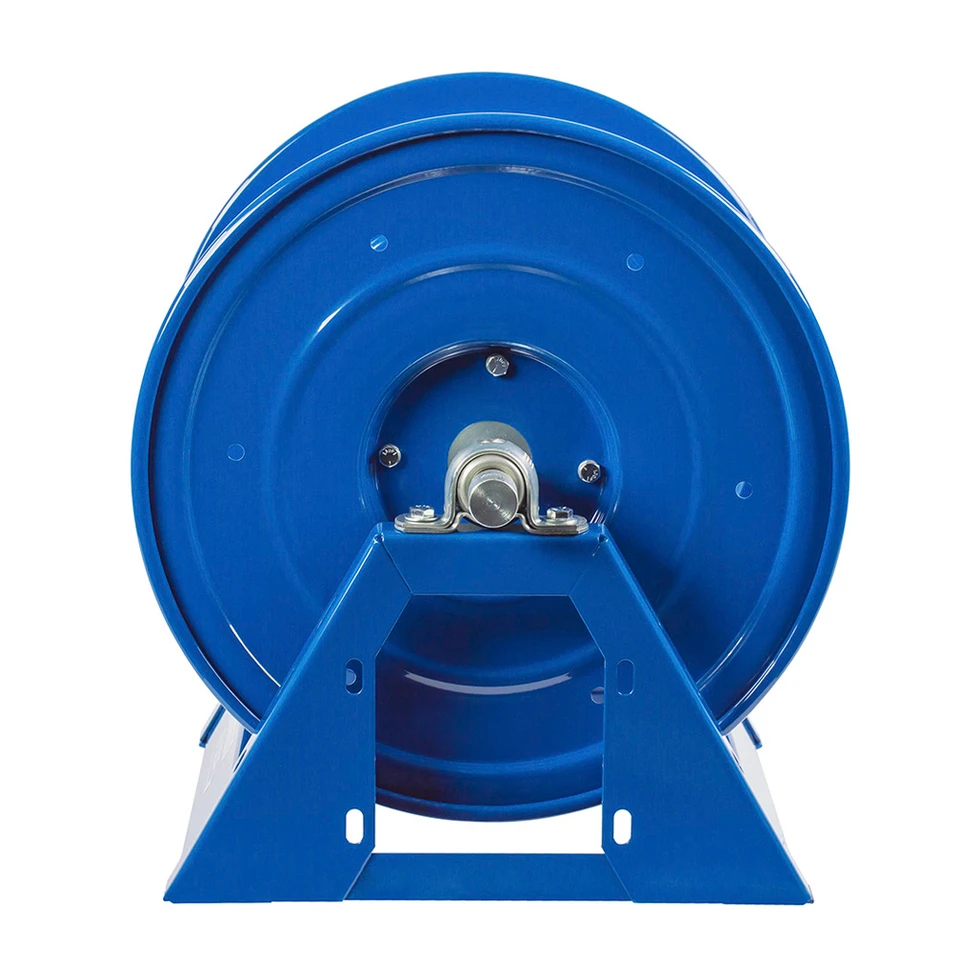

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-50-AB | Rewind Type: Compressed Air #6 Gast Motor | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 50 ft | Hose Included: No | Max Pressure: 3000 PSI | Ship Weight: 46 lbs | Overall Dimensions: 17.38" W x 18.75" H x 17.63" L | Mounting Pattern: 9.44" M x 10" N | Base: 11.38" X x 16" Y
Features:
- Compressed air #6 Gast motor rewind uses pneumatic power to retract hose, reducing the effort required to wind larger hose assemblies by hand.
- Reliable direct gear drive on motor driven models provides quiet, smooth retraction with no chain.
- All welded steel "A" frame construction supports the reel body during fixed mounting, vehicle installation, or equipment-area use.
- Exclusive low profile outlet riser and open drum slot design help create a flat, smooth hose wrap and reduce the chance of hose crimping.
- Machined solid brass 90° full-flow NPT swivel supports efficient flow and allows seal maintenance without removing the reel from its mount.
- Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly during payout and rewind.
- Adjustable tension brake helps prevent free-wheeling during operation.
- Rolled edges, ribbed discs, and CPC powder coat finish add hose protection, structural strength, and resistance to chipping and corrosion.
Made in USA:
Applications:
- Plant maintenance and MRO departments using 3/4" hose for compatible air, oil, grease, hydraulic, washdown, or general service tasks.
- Fleet and utility service trucks where an air-powered rewind reel helps manage hose between job sites without manual cranking.
- Pressure washing and washdown stations that need a medium-pressure reel platform rated up to 3000 PSI.
- Lubrication and fluid handling areas where hose storage, hose protection, and controlled rewind are important to workflow.
- Industrial work cells, equipment bays, and shop floors where keeping hose off the ground helps reduce clutter and improves access around machinery.
FAQs:
- Q: What does "less hose" mean for the 1125-5-50-AB?
A: It means the reel is supplied without hose installed. You will need to provide a compatible 3/4" I.D. hose separately, making sure the hose, fittings, and media compatibility match the service conditions. - Q: What is different about the AB rewind configuration?
A: The AB configuration identifies this reel as a compressed air motor rewind model using a #6 Gast motor. It is selected when pneumatic-powered rewind is preferred for retracting hose instead of hand crank or electric rewind. - Q: Can this reel be used with hydraulic or grease service?
A: The 1125 Series is commonly used across air, grease/hydraulic, oil/lubrication, washdown, and pressure-related applications. The complete hose assembly, fittings, swivel, seals, and media must be confirmed for the actual fluid, pressure, and temperature conditions before use. - Q: What hose size should be used with this reel?
A: This model is listed for 50 ft of 3/4" I.D. hose with a 1-1/4" hose O.D. capacity. Hose with a larger outside diameter may reduce capacity or prevent proper wrapping on the drum. - Q: What should be checked before mounting the reel?
A: Confirm the mounting surface can support the reel and accommodate the 17.38" W x 18.75" H x 17.63" L overall dimensions, 9.44" M x 10" N mounting pattern, and 11.38" X x 16" Y base footprint.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-50 | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50 | 4,500 | 38 | 6 |
| 1125-5-50-A | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-A | 4,500 | 38 | 6 |
| 1125-5-50-AB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-AB | 4,500 | 38 | 6 |
| 1125-5-50-C | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-C | 4,500 | 38 | 6 |
| 1125-5-50-E | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-E | 4,500 | 38 | 6 |
| 1125-5-50-EA | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EA | 4,500 | 38 | 6 |
| 1125-5-50-EB | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EB | 4,500 | 38 | 6 |
| 1125-5-50-ED | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-ED | 4,500 | 38 | 6 |
| 1125-5-50-EF | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-EF | 4,500 | 38 | 6 |
| 1125-5-50-H | 3/4" | 1 1/4" | 50 | 1/2" | 7/8" | 100 | 3/4" F NPT | 3,000 | HP1125-5-50-H | 4,500 | 38 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
