Coxreels EZ-TMPL-475 EZ Coil Truck Mount Spring Rewind Hose Reel | EZ-T Series | 1/2" Hose Diameter | 75' Hose Length | 2500 Max PSI | Less Hose

Built for service trucks, lube trucks, mobile maintenance rigs, and fleet shops, the Coxreels EZ-TMPL-475 EZ Coil Truck Mount Spring Rewind Hose Reel provides reel-only hose management for compatible 1/2" I.D. medium pressure hose up to 75 ft. This EZ-T Series reel is rated up to 2,500 PSI, giving buyers a high-pressure truck-mount platform for oil, lubrication, grease, hydraulic service, or other compatible fluid-transfer setups when paired with the correct hose for the application.

The EZ-Coil controlled rewind system is Coxreels’ patented safety rewind design that retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and improve control during return. Its truck-mount chassis uses dual pedestal-style arms, Coxreels’ Super Hub triple axle support system, a 1" solid steel axle, lubricated precision bearings, and a solid 1/4" steel base to help withstand vibration, road movement, and frequent hose pulls in mobile service environments.

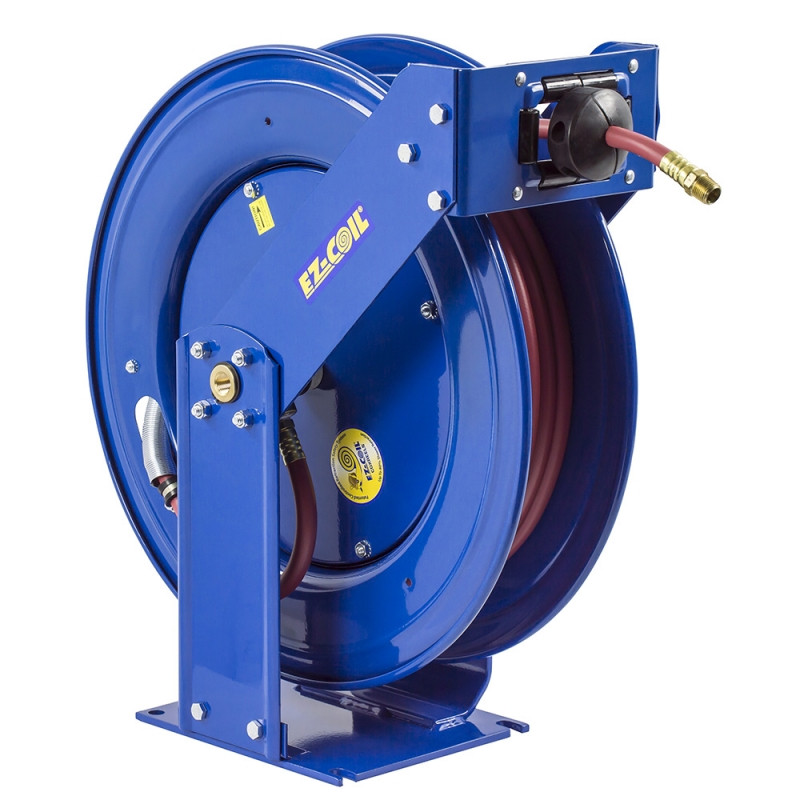

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ Coil Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Model: EZ-TMPL-475 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D. Capacity: 13/16" | Hose Capacity: 75 ft | Max Pressure: 2,500 PSI | Hose Included: No | Ship Weight: 80 lbs | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y

Features:

• EZ-Coil controlled rewind retracts up to 80% slower than conventional spring driven reels for more controlled hose return.
• Truck-mount frame with dual pedestal-style arms helps reduce vibration and strengthen reel stability during mobile use.
• Coxreels Super Hub triple axle support system provides additional axle support for frequent hose pulls and service-truck operation.
• External fluid path with machined 90° full-flow NPT swivel simplifies seal maintenance and hose installation.
• Enclosed, factory-tuned cartridge-style spring motor is lubricated and matched for consistent rewind performance.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• 1" solid steel axle and permanently lubricated precision bearings support smooth reel rotation.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to fit different truck and shop layouts.

Made in USA:

2 Year Warranty

Applications:

• Fleet and service trucks — mounting hose reels on mobile repair rigs for oil, lubrication, and compatible medium pressure fluid transfer.
• Lube trucks and maintenance vehicles — organizing longer hose runs around equipment, skids, trailers, and vehicle bays.
• Industrial MRO and plant maintenance — keeping hose stored off the floor while allowing controlled pull-out and rewind in work areas.
• Heavy equipment service — supporting field maintenance setups where truck vibration and repeated hose handling can wear down lighter reels.
• Shop and garage installations — adding a reel-only platform where the buyer wants to select a specific compatible 1/2" hose separately.

FAQs:

• Q: What does 'less hose' mean on the EZ-TMPL-475?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1/2" I.D. hose separately, staying within the reel’s hose O.D., length, pressure, and service requirements.
• Q: What is EZ-Coil rewind?
  A: EZ-Coil is Coxreels’ controlled rewind system. It retracts up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the user better control during rewind.
• Q: Can this reel be mounted on a service truck?
  A: Yes. The EZ-T Series is built as a truck-mount spring rewind hose reel, with a larger chassis, dual pedestal-style arms, guide arm adjustability, and Super Hub triple axle support for mobile applications.
• Q: What hose size should be used with this reel?
  A: This model is sized for 1/2" I.D. hose with a 13/16" maximum hose O.D. capacity and up to 75 ft of hose length. Do not exceed the listed hose O.D. if the full hose capacity is needed.
• Q: Is the 2,500 PSI rating enough for hydraulic or lubrication service?
  A: The reel is rated up to 2,500 PSI, but the complete system must also be limited by the hose, fittings, swivel, and fluid compatibility. Always match the installed hose and connection hardware to the working pressure and media being used.
