Coxreels EZ-TMPL-350 EZ Coil Truck Mount Spring Rewind Hose Reel | EZ-T Series | 3/8" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

Built for mobile service trucks, fleet maintenance vehicles, and rugged shop installations, the Coxreels EZ-TMPL-350 EZ-Coil Truck Mount Spring Rewind Hose Reel gives buyers a compact medium-pressure reel platform with 3/8" hose I.D. capacity, 50 ft hose capacity, and a 3000 PSI maximum pressure rating. The EZ-T Series uses a larger truck-mount chassis with dual pedestal-style arms and Coxreels Super Hub triple axle support system, which helps stabilize the reel during vehicle-mounted use, off-road service work, and repeated hose pullout/retraction cycles.

This less hose model is supplied as the reel only, allowing the customer to install a compatible 3/8" I.D. hose suited to the working fluid, pressure, temperature, and hose outside diameter requirements of the application. EZ-Coil controlled retraction slows hose rewind compared with conventional spring driven reels, helping reduce hose whip and making the reel easier to manage in busy maintenance, lubrication, and hydraulic service environments.

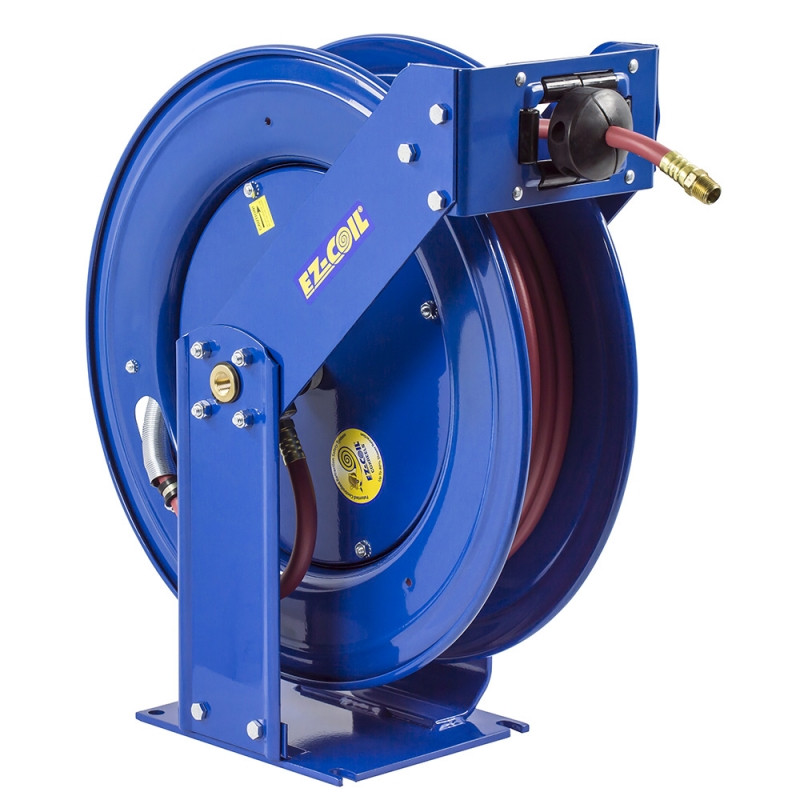

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Truck Mount Spring Rewind Hose Reel | Series: EZ-T Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Capacity: 50 ft | Max Pressure: 3000 PSI | Approx. Ship Weight: 61 lbs | Overall Dimensions: 9-3/8" W x 21-1/4" H x 19-1/2" L | Base: 8" x 9" | Mounting Pattern: 7" x 8" | Swivel Seals: Nitrile

Features:

• EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels, helping improve hose control during rewind.
• Truck mount EZ-T Series frame uses an extra-large chassis with dual pedestal-style arms for rugged mobile installations.
• Coxreels Super Hub triple axle support system reduces vibration and strengthens reel structure during repeated pullout and rewind cycles.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports fast hose installation and simple seal maintenance.
• Swivel uses nitrile seals, a common seal material for oil, water, and many air-service applications when compatible with the selected hose and fluid.
• Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match service truck layouts and shop installation requirements.
• Solid one-piece 1/4" steel base and support posts provide a stable mounting foundation for mobile and fixed installations.
• 1" solid steel axle with lubricated precision bearings supports smooth reel rotation under regular shop and field use.

Made in USA:

2 Year Warranty

Applications:

• Fleet and service trucks - mounting a medium-pressure hose reel on mobile maintenance vehicles for field repair and equipment support.
• Hydraulic and lubrication service - managing 3/8" I.D. hose for compatible oil, lubrication, and medium-pressure fluid handling tasks.
• Industrial MRO shops - keeping hose organized near maintenance bays, repair benches, and service areas where controlled rewind improves hose handling.
• Construction and off-road equipment service - supporting vehicle-mounted hose storage for jobsite maintenance trucks and mobile technicians.
• Garage and farm maintenance - adding a retractable hose reel to service trailers, shop walls, or equipment storage areas where a less-hose reel allows custom hose selection.

FAQs:

• Q: What does 'less hose' mean on the EZ-TMPL-350?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 3/8" I.D. hose that matches the reel's pressure rating, hose outside diameter limit, media, and temperature requirements.
• Q: What is EZ-Coil controlled retraction?
  A: EZ-Coil is Coxreels controlled rewind system that retracts the hose more slowly than a conventional spring driven reel. This helps reduce hose whip and gives the operator more control during rewind.
• Q: Can this reel be mounted on a service truck?
  A: Yes. The EZ-T Series is a truck mount spring driven reel series, and the guide arm can be adjusted for vehicle mounting as well as wall, floor, and overhead positions.
• Q: What hose size should be used with this reel?
  A: This model is listed for 3/8" I.D. hose with 11/16" hose O.D. and 50 ft capacity. Do not exceed the listed hose outside diameter if you need to obtain the full rated hose length.
• Q: Is the EZ-TMPL-350 suitable for hydraulic oil service?
  A: The EZ-T medium-pressure models are listed for air, water, and oil applications when used with compatible hose and fluid-system components. Always confirm hose construction, seals, pressure, and temperature compatibility before installation.
