Coxreels EZ-THPL-350 EZ Coil Spring Rewind Hose Reel | EZ-T Series | 3/8" Hose Diameter | 50' Hose Length | 4000 Max PSI | Less Hose

Built for mobile lubrication, hydraulic service, and rugged shop installations, the Coxreels EZ-THPL-350 EZ Coil Spring Rewind Hose Reel gives buyers a controlled-retraction reel platform for high-pressure hose setups where hose selection is handled separately. This EZ-T Series truck-mount reel is rated for 3/8" I.D. hose, up to 50 ft hose capacity, and 4000 PSI maximum pressure, making it suitable for grease and hydraulic oil service when paired with compatible hose. The EZ-Coil system is Coxreels controlled retraction technology, which slows rewind speed to help reduce whipping, equipment damage, and jobsite hazards during hose return.

The EZ-THPL-350 uses a dual pedestal frame, Coxreels Super Hub triple axle support system, a solid steel axle, and a high-pressure swivel configuration to support demanding service-truck, fleet, construction, and maintenance environments. Its adjustable guide arm allows the reel to be mounted for wall, floor, vehicle, or overhead layouts, giving installers flexibility when fitting the reel into mobile lube trucks, maintenance bays, hydraulic service carts, and equipment service areas.

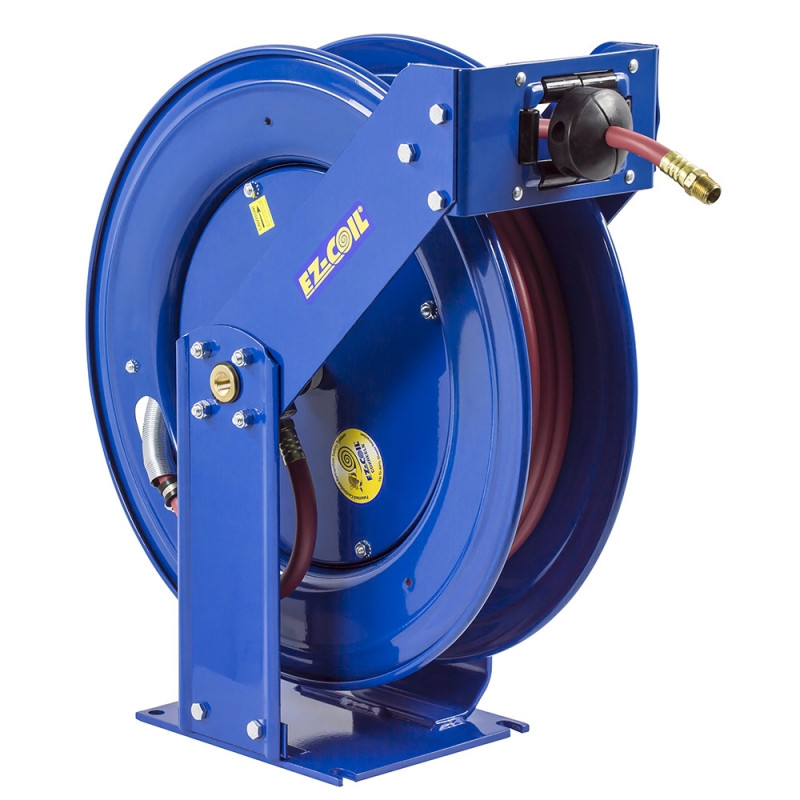

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ Coil Spring Rewind Hose Reel | Series: EZ-T Series | Configuration: Less Hose | Model: EZ-THPL-350 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Capacity: 50 ft | Max Pressure: 4000 PSI | Service: Grease and Hydraulic Oil | Swivel: Zinc Plated Steel on High Pressure Models | Swivel Seals: Nitrile | Approx. Ship Weight: 66 lbs

Features:

• EZ-Coil controlled retraction system rewinds up to 80% slower than conventional spring driven reels, helping reduce hose whip and improve workplace safety.
• High-pressure configuration uses a zinc plated steel 90° full-flow NPT swivel for grease and hydraulic oil reel service.
• Nitrile swivel seals support oil-resistant service requirements in lubrication and hydraulic maintenance applications.
• Dual pedestal reel frame with Coxreels Super Hub™ triple axle support helps reduce vibration and strengthen reel structure.
• Solid one-piece, heavy-gauge 1/4" steel base and support posts provide a stable mounting platform for mobile and fixed installations.
• 1" solid steel axle and lubricated precision bearings help the reel rotate smoothly during hose payout and rewind.
• Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during use.

Made in USA:

2 Year Warranty

Applications:

• Fleet and truck maintenance — managing high-pressure grease or hydraulic hose on service trucks, lube skids, and field repair vehicles.
• Construction and off-road equipment service — supporting hose storage and controlled rewind around excavators, loaders, graders, and heavy machinery.
• Industrial maintenance and MRO — organizing high-pressure lubrication or hydraulic oil delivery points in shops, plants, and repair bays.
• Agricultural equipment service — keeping hydraulic or grease hose accessible for tractors, implements, and mobile maintenance operations.
• Garage and equipment repair shops — reducing loose hose on the floor while allowing technicians to pull out only the length needed for the job.

FAQs:

• Q: What does 'less hose' mean on the EZ-THPL-350?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/8" I.D. hose separately and should not exceed the listed hose O.D. when using the full 50 ft capacity.
• Q: What type of service is this high-pressure reel used for?
  A: This EZ-T high-pressure model is used for grease and hydraulic oil applications when paired with the correct hose, fittings, and pressure rating for the system.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels' controlled retraction system. It slows hose rewind compared with conventional spring driven reels, helping reduce hose whip and lowering the chance of injury or property damage during rewind.
• Q: Can this reel be mounted on a service truck?
  A: Yes. The EZ-T Series is a truck-mount reel family, and the guide arm can be positioned for vehicle, wall, floor, or overhead mounting layouts.
• Q: Does this reel include the hose stop or hose fittings?
  A: The source data confirms this SKU is a less-hose reel, so hose is not included. Any hose-end hardware, fittings, or hose stop requirements should be verified against the final hose assembly selected for the application.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
