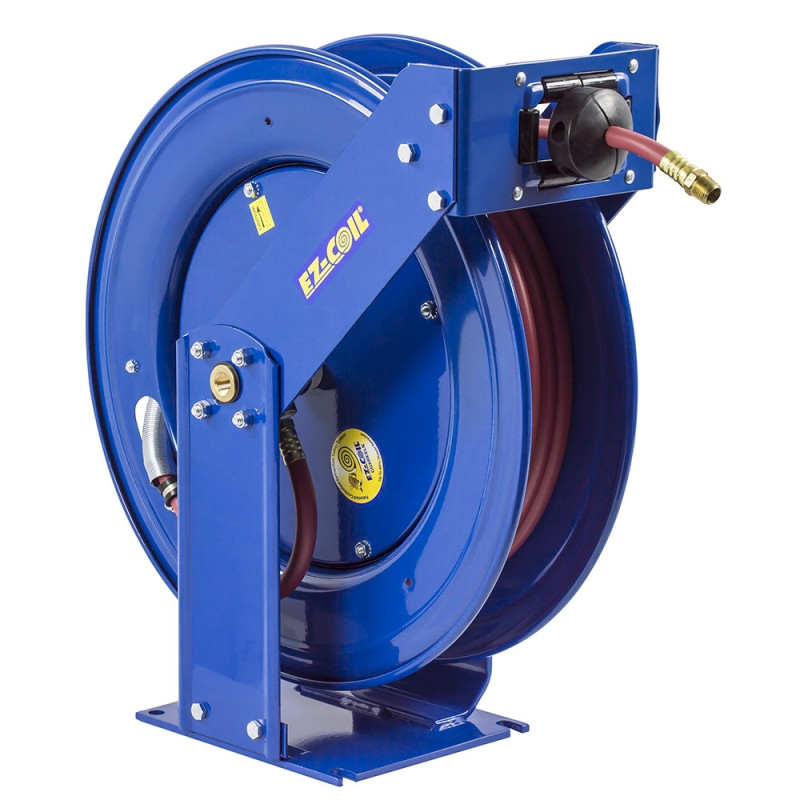

Coxreels EZ-THPL-150 EZ Coil Spring Rewind Hose Reel | EZ-T Series | 1/4" Hose Diameter | 50' Hose Length | 5000 Max PSI | Less Hose

Built for truck-mounted service, shop maintenance, and high-pressure fluid handling setups, the Coxreels EZ-THPL-150 EZ-Coil spring rewind hose reel gives technicians a safer, more controlled way to manage up to 50 ft of compatible 1/4" I.D. hose. Its 5000 PSI rating supports high-pressure air, water, oil, grease, and hydraulic applications when paired with hose that matches the reel's pressure rating, outside diameter limit, and service requirements. The EZ-Coil safety system uses a controlled spring rewind that retracts significantly slower than conventional reels, helping reduce hose whip and making retrieval more manageable in busy work areas.

Part of the EZ-T Series, this Truck Mount reel uses a dual pedestal-style frame, Coxreels Super Hub triple axle support system, and a solid steel base for stability in mobile and fixed installations. The less hose configuration gives buyers flexibility to install the exact hose type needed for the job, while the multi-position guide arm supports wall, floor, ceiling, overhead, and vehicle mounting layouts.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-T Series | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Capacity: 50 ft | Max Pressure: 5000 PSI | Ship Weight: 62 lbs | Overall Dimensions: 9.38" W x 21.25" H x 19.5" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y

Features:

• EZ-Coil controlled retraction helps reduce hose whip by slowing rewind speed compared with conventional spring driven reels.
• Dual pedestal-style reel frame with Coxreels Super Hub triple axle support system helps stabilize the reel in mobile service and shop environments.
• Solid one-piece 1/4" steel base and support post provide a secure mounting platform for wall, floor, ceiling, overhead, or vehicle installation.
• Zinc plated steel 90° full-flow NPT swivel on high-pressure models supports efficient fluid transfer and simplifies hose installation.
• Nitrile swivel seals support common oil, grease, and hydraulic service requirements when used with compatible hose and fluid media.
• CNC robotically spun and ribbed discs with rolled edges help protect the hose and improve safety around the reel edges.
• Factory-tuned enclosed cartridge-style spring motor is removable for safer and more convenient service.
• CPC powder coat finish helps resist chips and corrosion in work trucks, service bays, maintenance shops, and field environments.

Made in USA:

2 Year Warranty

Applications:

• Fleet and service trucks for organizing high-pressure grease, oil, hydraulic, air, or water hose in mobile repair setups.
• Heavy equipment maintenance where hose control is needed around loaders, excavators, agricultural machinery, and off-road equipment.
• Industrial maintenance shops managing high-pressure lubrication or hydraulic service lines near machinery and repair bays.
• Vehicle service and fleet garages where floor clutter reduction and controlled hose rewind improve work area organization.
• DIY farm, ranch, and garage users who need a reel-only platform for a specific compatible high-pressure hose assembly.

FAQs:

• Q: What does 'less hose' mean on the Coxreels EZ-THPL-150?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/4" I.D. hose separately and confirm that the hose outside diameter, length, pressure rating, and media compatibility match the application.
• Q: What type of hose can be used with this reel?
  A: This reel is built for up to 50 ft of 1/4" I.D. hose with a listed 9/16" outside diameter. Use only hose rated for the working pressure and fluid media being handled.
• Q: Why choose EZ-Coil instead of a standard spring rewind reel?
  A: EZ-Coil is Coxreels controlled retraction system. It slows rewind speed compared with conventional reels, which helps make hose retrieval more manageable and reduces the chance of sudden hose whip.
• Q: Can the EZ-THPL-150 be mounted on a service truck?
  A: Yes. The EZ-T Series is built around a truck mount reel frame with a dual pedestal design, Super Hub triple axle support, and a guide arm that can be adjusted for vehicle and other mounting positions.
• Q: Is this reel suitable for hydraulic or grease service?
  A: Yes, when it is installed with hose, fittings, and fluid components that are rated for the pressure and media. The reel itself is rated to 5000 PSI, but the complete hose assembly must also meet the same application requirements.
