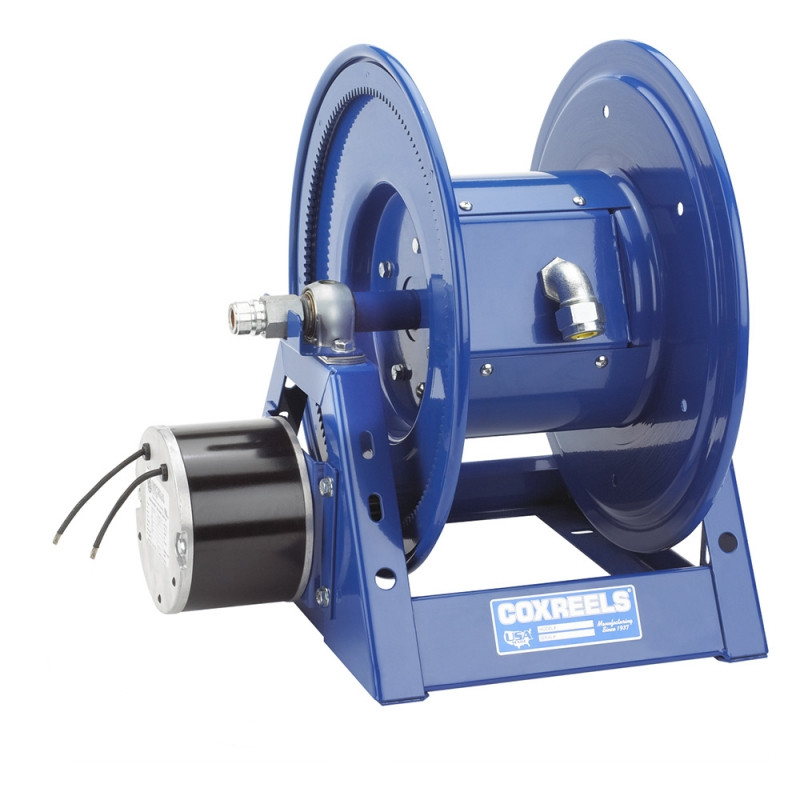

Coxreels 1125PCL-8M-ED Electric 12V DC Explosion Proof 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 200' (10/3) / 175' (8/3) Capacity | 45 Amps | 600 Volts | Less Cord

Built for powered cord management on service vehicles, plant equipment, mobile work skids, and shop installations, the Coxreels 1125PCL-8M-ED is a 1125PCL Series motor rewind cord reel supplied less cord for applications where the buyer needs to install a compatible SO-type power cord separately. Its 12V DC explosion proof 1/2 HP reversible motor supports powered rewind where manual retrieval would be slow or difficult, while the 45 amp, 600 volt slip ring assembly provides the electrical rating needed for higher-amperage cord applications within the reel's published limits.

This model uses Coxreels all-welded steel 'A' frame and drum-located slip ring assembly, giving maintenance teams easier access to internal electrical components without removing the reel from its mount. The reel is listed with 200 ft of 10/3 cord capacity and 175 ft of 8/3 cord capacity, making it a practical choice for long-reach electrical service, mobile equipment, and cord storage layouts where controlled payout and powered rewind help keep work areas organized.

Type: Electric Motor Rewind Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8M-ED | Configuration: Less Cord | Motor: 12V DC Explosion Proof Reversible | Motor Power: 1/2 HP | Slip Ring Rating: 45 Amps, 600 Volts | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Overall Dimensions: 21.63" W x 19.13" H x 17.5" L | Mounting Pattern: 11.44" M x 10" N | Base: 13.38" X x 16" Y | Ship Weight: 61 lbs

Features:

• Drum-located slip ring assembly with an easy-access removable cover supports routine inspection and service without removing the reel from its mounting location.
• 45 amp, 600 volt rated slip ring assembly supports higher-amperage cord reel applications when used within the reel's published electrical limits.
• 12V DC explosion proof reversible motor provides powered rewind for installations where manual cord retrieval is not preferred.
• Reliable direct gear drive on motor driven models eliminates chain drive components for smoother powered reel operation.
• All-welded steel 'A' frame construction strengthens the reel structure for fixed, vehicle-mounted, or equipment-mounted installations.
• Narrow reel width helps simplify installation in restricted spaces where mounting clearance is limited.
• Permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly during cord payout and rewind.
• Integrated 'Cable Keeper' helps prevent the lead cable from whipping or twisting during operation.
• Adjustable tension brake helps prevent free-wheeling when cord is being pulled from the reel.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Rolled edges and ribbed discs add strength while helping protect the cord and operator during handling.
• CPC powder coat finish helps resist chips and rust in shop, fleet, and facility environments.

Made in USA:

2 Year Warranty

Applications:

• Service, mechanic, and utility vehicles where long electrical cord runs need to be stored securely between jobs.
• Manufacturing plants and maintenance areas using powered cord reels for tools, lighting, or mobile electrical service points.
• Construction and railroad operations where a motorized reel helps manage cord deployment and retrieval around equipment or temporary work zones.
• Mining and field service environments where a 12V DC explosion proof motor option may be required by the installation or equipment layout.
• General industrial shops that need a less-cord reel so the cord type and length can be selected separately to match the application.

FAQs:

• Q: What does 'less cord' mean on this Coxreels cord reel?
  A: Less cord means the reel is supplied without power cord installed. The buyer must provide a compatible cord separately, using the reel's cord capacity and electrical rating as the selection guide.
• Q: What makes this model different from non-motorized 1125PCL reels?
  A: The 1125PCL-8M-ED uses a 12V DC explosion proof reversible electric motor for powered rewind. This helps retrieve long cord lengths more efficiently than a hand crank reel in vehicle, skid, and fixed equipment installations.
• Q: What does the 45 amp, 600 volt rating refer to?
  A: That rating applies to the reel's slip ring assembly, which transfers electrical current through the rotating drum. The installed cord and the full electrical system must also be selected and installed to match the application requirements.
• Q: Can this reel be mounted on a service truck or mobile unit?
  A: Yes, this series is commonly used on service, mechanic, and utility vehicles when the mounting surface, electrical supply, cord selection, and environmental requirements are appropriate for the reel.
• Q: Is the cord included with this SKU?
  A: No. This SKU is sold as a reel only and does not include cord, plugs, receptacles, or installation wiring unless separately specified on the order.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
