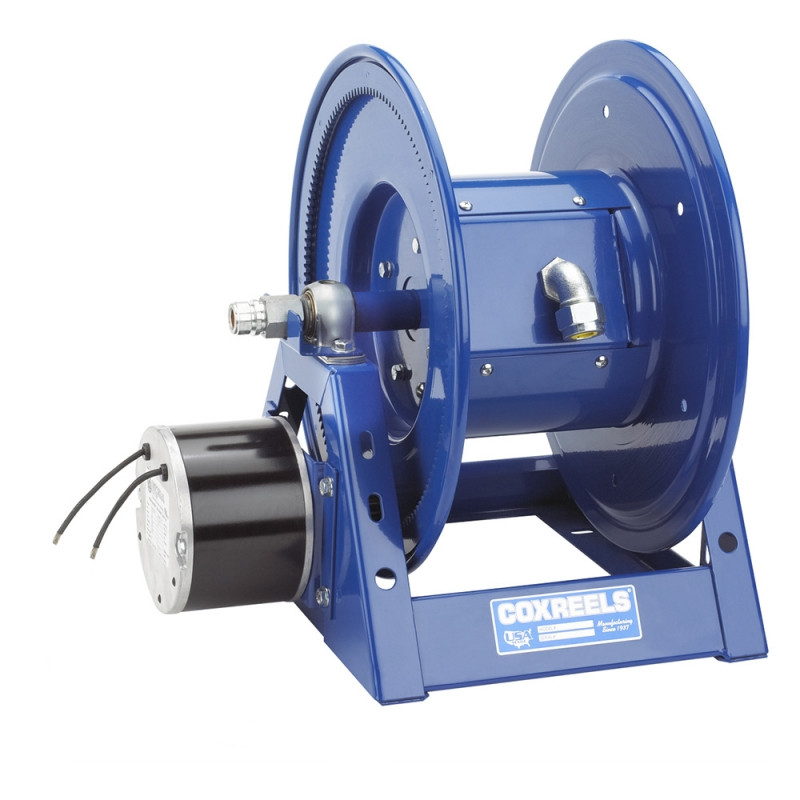

Coxreels 1125PCL-8M-EA Electric 115V Explosion Proof 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 200' (10/3) / 175' (8/3) Capacity | 45 Amps | 600 Volts | Less Cord

When long power-cord runs need controlled storage with motorized rewind, the Coxreels 1125PCL-8M-EA gives maintenance crews, service-vehicle builders, and facility teams a cord reel platform with a 115V AC, 1/2 HP explosion proof reversible motor. Part of the 1125PCL Series, this reel is built for 3-conductor 600V power cord applications and is sized to hold up to 200 ft of 10/3 cord or 175 ft of 8/3 cord, depending on the cord outside diameter. Its 45 Amp, 600 Volt, 3-pole slip ring assembly transfers electrical current through the rotating drum while allowing the cord to be paid out and rewound.

The 1125PCL-8M-EA is supplied as a reel only, giving buyers the flexibility to select the proper cord type, insulation rating, and length for the job. A drum-located slip ring assembly with an easy-access cover supports routine maintenance, while the all-welded steel 'A' frame strengthens the reel for vehicle, skid, and facility mounting. Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly, and the adjustable tension brake helps control free-wheeling during operation. This model is a strong fit for buyers who need the 1125PCL cord capacity with a 115V AC explosion proof motor rewind option.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8M-EA | Configuration: Less Cord | Rewind: Electric Motor Rewind | Motor: 115V AC, 1/2 HP Explosion Proof, Reversible AC Rectified | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord Grip Range: .63" - .75" | Voltage Rating: 600 Volts | Slip Ring Amps: 45 Amps | Slip Ring Poles: 3 | Approx. Reel Weight: 35 lbs | Motor Add-On Weight: 26 lbs

Features:

• 115V AC, 1/2 HP explosion proof reversible AC rectified motor option for motorized cord rewind.
• Drum-located slip ring assembly with an easy-access cover for simple routine maintenance.
• 45 Amp, 600 Volt rated 3-pole slip ring configuration for compatible 3-conductor cord service.
• All-welded steel 'A' frame construction strengthens the reel structure for fixed or mobile mounting.
• Narrow reel width helps simplify installation where available mounting space is limited.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation.
• Externally mounted weatherproof outlet box provides access to user connections.
• 'Cable Keeper' helps prevent the lead cable from whipping or twisting during operation.
• Adjustable tension brake helps prevent free-wheeling during payout or rewind.
• Reliable direct gear drive on motor driven models with no chain.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Durable proprietary CPC powder coat process with rolled edges and ribbed discs for strength and safety.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and industrial facilities where long 3-conductor power cord runs need organized storage and controlled rewind.
• Service, mechanic, and utility vehicles that require a motorized cord reel for mobile maintenance or field support work.
• Mining, construction, and railroad operations where a reel-mounted cord system can help manage power delivery around equipment and work areas.
• General industrial maintenance departments using cord reels for shop power, temporary workstations, light sources, or repair areas.
• Installations where a 115V AC explosion proof motor option is specified for the reel rewind system.

FAQs:

• Q: Does the Coxreels 1125PCL-8M-EA include power cord?
  A: No. This model is supplied less cord. The buyer must provide compatible cord separately and confirm cord gauge, insulation rating, length, outside diameter, electrical service, and code requirements before installation.
• Q: What cord sizes can this reel hold?
  A: The 1125PCL-8M-EA is rated for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord. Cord outside diameter affects actual capacity, so verify the cord dimensions before ordering.
• Q: What does the EA motor suffix mean?
  A: The EA suffix identifies the 115V AC, 1/2 HP explosion proof reversible AC rectified motor option. It is the motor rewind configuration used on this SKU.
• Q: What does the slip ring rating mean?
  A: The slip ring assembly transfers electrical current through the rotating drum. This model uses a 3-pole slip ring rated at 45 Amps and 600 Volts, and the end use application must not exceed the lowest rated component in the reel-and-cord system.
• Q: Can the cord remain wound on the reel while energized?
  A: Coxreels cautions that cord should be completely unspooled when energized unless the user follows applicable NEC ampacity derating requirements. Disconnect the power source from the reel while unspooling or spooling cord.
