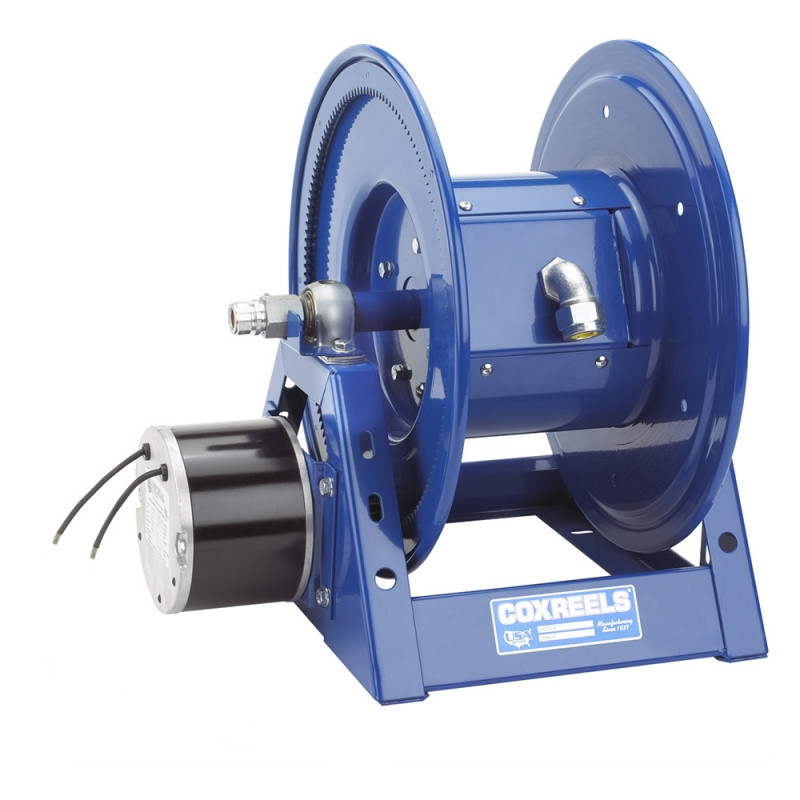

Coxreels 1125PCL-8M-A Air Motor Rewind Cord Reel | 1125PC Series | 200' (10/3) / 175' (8/3) Capacity | 45 Amps | 600 Volts | Less Cord

When a work truck, service bay, or facility power point needs long cord reach with controlled powered rewind, the Coxreels 1125PCL-8M-A air motor rewind cord reel provides organized storage for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord. Part of the 1125PC Series, this motorized cord reel uses a drum-located slip ring assembly, which transfers electrical current through the rotating reel while keeping the connection area accessible for routine service. The 45 amp, 600 volt rating supports higher-capacity cord reel installations when paired with the correct cord, electrical service, and qualified installation.

The 'A' suffix indicates Coxreels air motor rewind option with a 4-vane aluminum body air motor, allowing powered retrieval without relying on a manual crank or electric rewind motor. This makes the reel a strong fit for mobile service equipment, manufacturing plants, maintenance departments, utility vehicles, and work areas where pneumatic power is already available and cord control matters for safety, storage, and productivity.

Type: Air Motor Rewind Cord Reel | Series: 1125PC Series / 1125PCL Series | Configuration: Less Cord | Model: 1125PCL-8M-A | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord O.D. Range: .63" - .75" | Voltage Rating: 600V | Slip Ring Amps: 45 Amps | Slip Ring Poles: 3 | Motor Option: A - Air, 4 Vane Aluminum Body Air Motor | Base Reel Approx. Weight: 35 lbs | Motor Add-On Weight: 8 lbs | Size Index: 1

Features:

• Air motor rewind option provides powered cord retrieval using shop or vehicle air supply instead of manual hand cranking.
• 4-vane aluminum body air motor is the Coxreels 'A' motor option for this 1125PCL Series configuration.
• Drum-located slip ring assembly with easy-access cover supports routine service without removing the reel from its mounting location.
• Available 45 amp, 600 volt rated slip ring assembly supports compatible high-capacity cord reel applications.
• All welded steel 'A' frame construction strengthens the reel structure for vehicle, shop, and facility mounting.
• Narrow frame width helps the reel fit into restricted spaces on service bodies, equipment packages, and maintenance areas.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation during payout and powered rewind.
• 'Cable Keeper' helps prevent the lead cable from whipping or twisting during operation.
• Adjustable tension brake helps prevent free-wheeling, while the long-handled locking pin secures the reel from rotation during transport or storage.
• Reliable direct gear drive on motor driven models eliminates chain drive components for smoother, quieter rewind operation.

Made in USA:

2 Year Warranty

Applications:

• Service, mechanic, and utility vehicles using onboard air systems to rewind long power cord runs after field work.
• Manufacturing plants and facility maintenance areas where cord storage needs to stay organized around tools, lighting, and equipment connections.
• Industrial MRO departments managing long 10/3 or 8/3 cord runs in shops, repair bays, and equipment service areas.
• Construction, railroad, and utility operations where powered rewind helps reduce loose cord on the ground after temporary power use.
• Fleet and truck body installations where an air motor rewind reel can integrate with existing compressed air systems.

FAQs:

• Q: Does the Coxreels 1125PCL-8M-A include cord?
  A: No. This reel is supplied less cord, meaning the buyer must install compatible cord separately. Confirm cord gauge, outside diameter, conductor count, insulation type, length, and electrical rating before installation.
• Q: What does the 'A' suffix mean?
  A: The 'A' suffix identifies the air motor rewind option with a 4-vane aluminum body air motor. This allows the reel to rewind using compressed air rather than a manual crank or electric motor.
• Q: What cord capacity does this model support?
  A: The 1125PCL-8M-A is listed for 200 ft of 10/3 cord or 175 ft of 8/3 cord, based on the specified cord outside diameter range. Actual capacity can vary if the selected cord has a larger outside diameter than expected.
• Q: What is the slip ring used for?
  A: The slip ring transfers electrical current through the rotating reel while allowing the drum to turn. On this Coxreels series, the slip ring is located at the drum with an access cover for easier routine maintenance.
• Q: Can the cord remain wound on the reel while energized?
  A: Coxreels cautions that cord should be completely unspooled when energized unless proper NEC ampacity derating factors are applied. Electrical installation should be completed by qualified personnel and matched to the application's load and code requirements.
