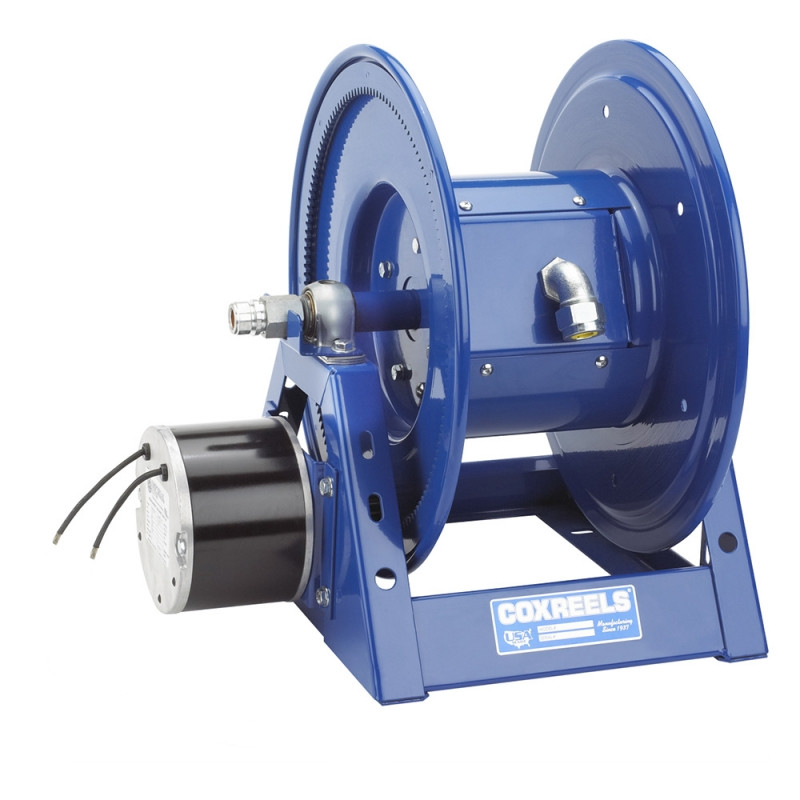

Coxreels 1125PCL-8M-E Electric 12V DC 1/3HP Motor Rewind Cord Reel | 1125PCL Series | 200' (10/3) / 175' (8/3) Capacity | 45 Amps | 600 Volts | Less Cord

When a service truck, plant workstation, or mobile equipment build needs controlled storage for long lengths of power cord, the Coxreels 1125PCL-8M-E provides a motorized rewind platform built around the 1125PCL Series. This electric cord reel uses a 12V DC, 1/3 HP reversible motor to rewind cord without hand cranking, helping crews manage long cord runs in utility, maintenance, construction, railroad, and manufacturing environments. Its 45 Amp, 600 Volt, 3-pole slip ring assembly supports higher-amperage 3-conductor cord service, while the reel drum is sized for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord depending on the cord outside diameter and application requirements.

The drum-located slip ring assembly places the electrical transfer point where it can be reached for routine service, and the all-welded steel 'A' frame gives the reel a stable structure for vehicle, skid, and facility mounting. Permanently lubricated self-aligning pillow block bearings support smooth drum rotation, while the adjustable tension brake helps prevent free-wheeling during rewind or payout. The externally mounted outlet box provides access for user-supplied cord connections, making this reel a practical choice for buyers who need to match the reel to a specific cord type, length, and electrical code requirement.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8M-E | Configuration: Less Cord | Rewind: Electric 12V DC Motor | Motor: 1/3 HP Reversible | Cord Capacity: 200 ft of 10/3 or 175 ft of 8/3 | Cord Grip Range: .63" - .75" | Voltage Rating: 600 Volts | Slip Ring Amps: 45 Amps | Slip Ring Poles: 3 | Approx. Reel Weight: 35 lbs | Motor Add-On Weight: 13 lbs

Features:

• Drum-located slip ring assembly with an easy-access cover for routine maintenance without removing the reel from its mount.
• 45 Amp, 600 Volt rated 3-pole slip ring configuration for compatible 3-conductor power cord applications.
• All-welded steel 'A' frame construction strengthens the reel structure for fixed or mobile mounting.
• Narrow reel width helps fit installations where mounting space is limited.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation.
• Externally mounted 3/4" trade size single gang outlet box provides access to lead connections.
• 'Cable Keeper' helps prevent the lead cable from whipping or twisting during operation.
• Adjustable tension brake helps prevent free-wheeling when paying out or rewinding cord.
• Reliable direct gear drive on motor driven models with no chain.
• Durable proprietary CPC powder coat process and ribbed discs with rolled edges for strength and safety.

Made in USA:

2 Year Warranty

Applications:

• Service, mechanic, and utility vehicles for storing long power cord runs on trucks, skids, and mobile maintenance units.
• Manufacturing plants and facilities where cord management is needed at workstations, equipment bays, or production support areas.
• General industrial maintenance for powering tools, lights, and equipment where cord length must be stored neatly between uses.
• Mining, construction, and railroad operations where a motorized cord reel can help manage long electrical service runs in rugged work areas.
• Fleet and field service environments where 12V DC rewind power is useful on vehicle-mounted systems.

FAQs:

• Q: Does the Coxreels 1125PCL-8M-E include cord?
  A: No. This model is supplied less cord. The buyer must provide compatible power cord separately based on the reel capacity, electrical load, cord outside diameter, and applicable electrical codes.
• Q: What cord sizes fit this model?
  A: The 1125PCL-8M-E is rated for up to 200 ft of 10/3 cord or 175 ft of 8/3 cord, with a .63"–.75" cord grip range. Cord outside diameter can affect how much cord fits on the drum.
• Q: What does the slip ring do on a cord reel?
  A: The slip ring assembly transfers electrical current through the rotating reel drum while the cord is paid out or rewound. This model uses a drum-located slip ring assembly with an access cover for routine maintenance.
• Q: Can the cord stay coiled while energized?
  A: Coxreels cautions that cord should be completely unspooled when energized unless the user applies applicable NEC ampacity derating requirements. The end user is responsible for confirming cord, length, insulation rating, electrical service, and code compliance.
• Q: What does the 'E' motor suffix mean?
  A: The 'E' suffix identifies the 12V DC, 1/3 HP reversible motor option. This makes the reel suitable for applications where electric motor rewind is preferred over hand crank operation.
