Coxreels 1125PCL-8312 Hand Crank Cord Reel | 1125PC Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

When long electrical drops need to be managed without a spring motor or powered rewind system, the Coxreels 1125PCL-8312 provides a straightforward hand crank cord reel for storing bulk SO-type power cord in service, maintenance, construction, and industrial environments. This 1125PC Series reel is built for 250 ft of 12/3 cord capacity, giving users a long reach for temporary power distribution, portable lighting, workstations, and equipment support when the selected cord and installation meet the application requirements. The 30 amp, 600 volt, 3-pole slip ring supports rotating electrical continuity through the drum while keeping cord organized on the reel.

The 1125PCL-8312 uses a Coxreels drum-located slip ring assembly (the rotating electrical connection that transfers power between the stationary supply and the cord-winding drum) with an easy-access cover for routine maintenance. Its solid steel direct hand crank gives the user controlled manual rewind without relying on air, electric, or hydraulic power, making it a practical choice for shops, field service areas, and fixed installations where simple cord retrieval is preferred.

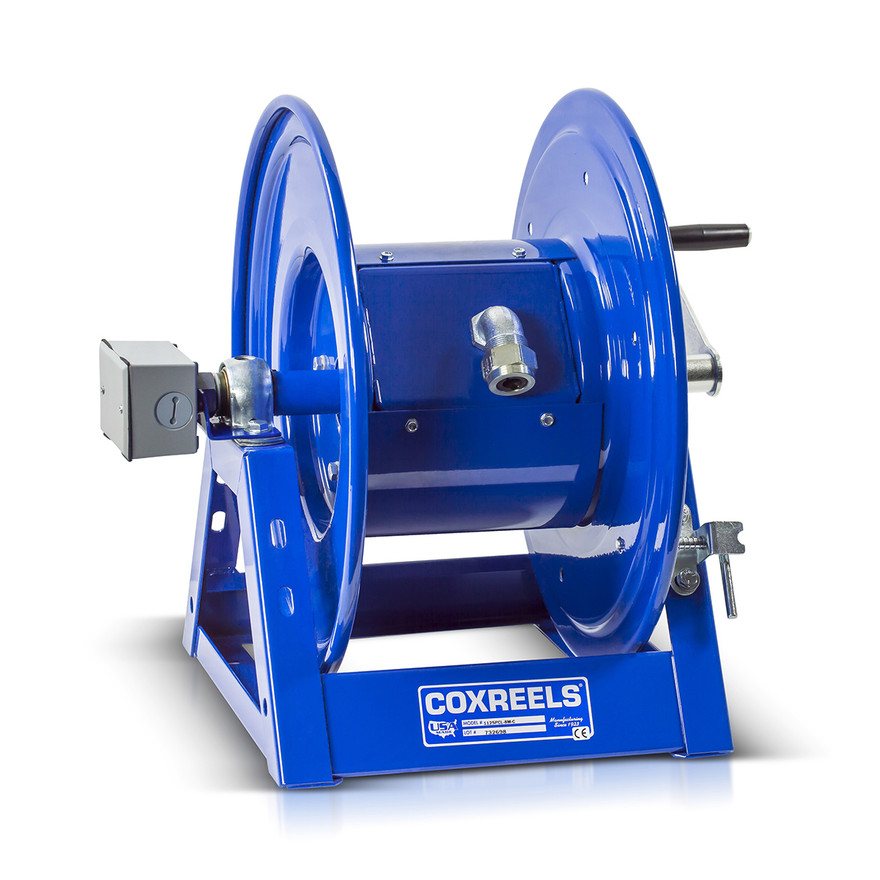

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Hand Crank Cord Reel | Series: 1125PC Series | Model: 1125PCL-8312 | Configuration: Less Cord | Cord Capacity: 250 ft of 12/3 | Voltage Rating: 600V | Slip Ring Rating: 30 Amps | Poles: 3 | Rewind Type: Solid Steel Direct Hand Crank | Cord Type Range: 8GA-12GA SO-Type Power Cord | Approx. Reel Weight: 35 lbs | Size Index: 1

Features:

• Solid steel direct hand crank with smooth round handle gives the operator controlled manual rewind without requiring a powered rewind source.
• Drum-located slip ring assembly includes easy-access covers for simpler routine inspection and maintenance.
• 30 amp, 600 volt rated slip ring assembly supports long power cord applications when properly matched to the cord and electrical service.
• All-welded steel 'A' frame construction strengthens the reel structure for repeated use in jobsite, vehicle, and facility mounting applications.
• Narrow-width frame helps installers place the reel in restricted spaces where a wider cord storage unit may not fit.
• Permanently lubricated, self-aligning pillow block bearings at each end of the drum help support smooth rotation during payout and rewind.
• Cable Keeper helps prevent the lead cable from whipping or twisting during use.
• Adjustable tension brake helps reduce free-wheeling, and a long-handled locking pin secures the reel from rotation during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Plant maintenance and MRO areas where long cord runs need to be stored neatly between work orders.
• Construction, mining, and railroad operations using temporary power cord management for tools, lighting, or support equipment.
• Service trucks, trailers, and mobile maintenance setups where manual rewind is preferred over powered reel operation.
• Manufacturing workstations and equipment bays where organized cord storage helps reduce clutter and improves cord handling.
• General shop and garage installations where a less-cord reel lets the user install the correct cord type for the electrical load and reach required.

FAQs:

• Q: What does 'less cord' mean on the Coxreels 1125PCL-8312?
  A: It means the reel is supplied without cord installed. The user must provide compatible power cord separately and confirm the cord type, conductor size, voltage rating, and outside diameter before installation.
• Q: What cord capacity does this hand crank reel support?
  A: This model is listed for 250 ft of 12/3 cord. Actual fit depends on the cord's outside diameter, so verify the cord manufacturer's O.D. before loading the reel.
• Q: Why choose a hand crank cord reel instead of a motorized model?
  A: A hand crank reel is simpler and does not require air, electric, or hydraulic power for rewind. It works well when cord retrieval is occasional, controlled manual rewind is acceptable, or the installation does not justify a powered rewind option.
• Q: Can the cord remain wound on the reel while energized?
  A: Coxreels cautions that cord should be completely unspooled when energized unless applicable NEC ampacity derating factors are followed. Electrical installation should be handled by a qualified person and must comply with national and local codes.
• Q: Does this reel include plugs, outlets, or cord fittings?
  A: This is a less-cord reel. User connections are made through the externally mounted outlet box, and the installer must provide the appropriate cord, fittings, strain relief, plug, or conduit connection for the application.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
