Coxreels 1125PCL-8312-EA Electric 115V Explosion Proof 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

When longer power cord runs need powered retrieval in environments where the motor selection matters, the Coxreels 1125PCL-8312-EA provides a motorized cord reel platform with a 115V AC, 1/2 HP explosion proof reversible motor. This 1125PCL Series reel stores up to 250 ft of 12/3 SOOW cord and uses a 30 Amp, 600 Volt, 3-pole slip ring assembly to transfer electrical current through the rotating drum. Supplied less cord, it gives installers flexibility to select the proper cable for the application while staying within the reel, cord, connector, and electrical service ratings.

The 1125PCL-8312-EA pairs Coxreels' narrow all-welded steel 'A' frame with a drum-located slip ring assembly, permanently lubricated self-aligning pillow block bearings, and a direct gear drive motor rewind system. The slip ring assembly allows the reel drum to rotate while maintaining the electrical connection, and the removable access cover supports routine maintenance without taking the reel off its mount. This configuration is well suited for cord management in manufacturing plants, maintenance areas, service vehicles, construction support, mining operations, and other applications where long cord storage and controlled rewind are required.

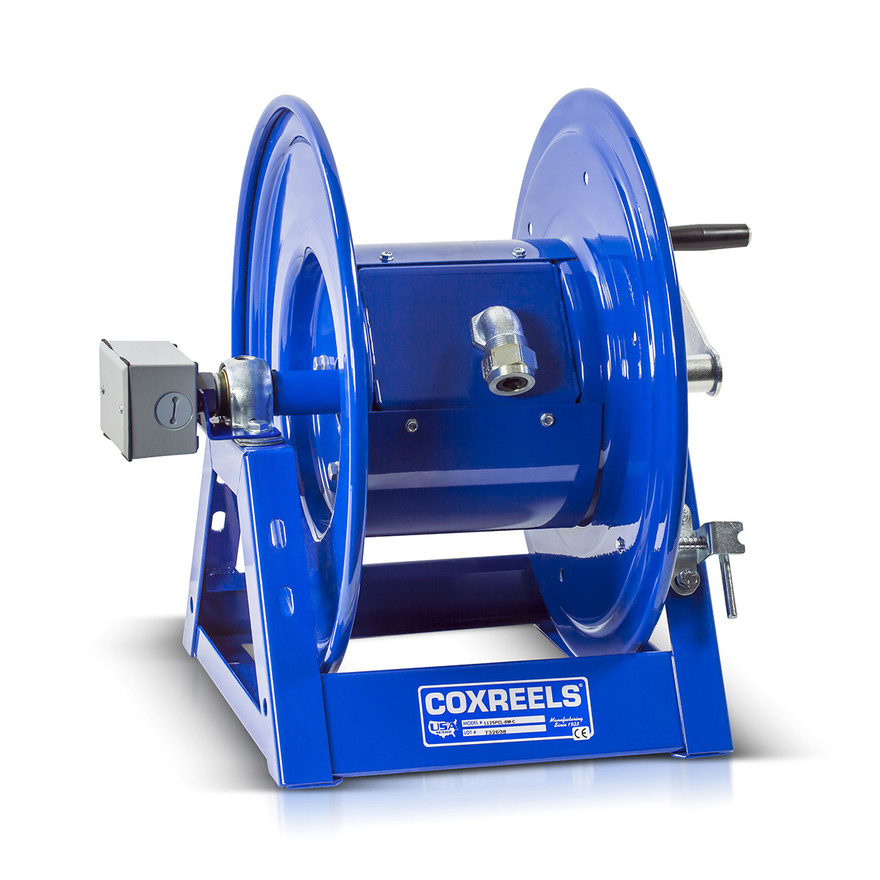

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8312-EA | Configuration: Less Cord | Rewind: 115V AC, 1/2 HP Explosion Proof Reversible AC Rectified Motor | Cord Capacity: 250 ft of 12/3 SOOW Cord | Cord O.D.: .60" | Cord Grip Range: .50"-.63" | Slip Ring Rating: 30 Amps, 600 Volts | Slip Ring Poles: 3 | Approx. Ship Weight: 61 lbs | Overall Dimensions: 21-5/8" W x 19-3/16" H x 17-1/2" L | Base Dimensions: 13-3/8" X x 16" Y | Drum Diameter: 8-1/2" | Drum Width: 8"

Features:

• 115V AC, 1/2 HP explosion proof reversible AC rectified motor option provides powered rewind for longer cord runs.
• Drum-located slip ring assembly with easy-access cover supports routine maintenance without removing the reel from its mount.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports compatible 3-conductor power cord applications.
• All welded steel 'A' frame construction strengthens the reel structure and provides a stable mounting base.
• Narrow width helps fit the reel into restricted installation spaces where cord storage still needs to remain accessible.
• Permanently lubricated self-aligning pillow block bearings help provide smooth reel rotation during extension and rewind.
• 3/4" trade size single gang outlet box provides external access to lead connections.
• Cable Keeper helps prevent the lead cable from whipping or twisting as the reel rotates.
• Adjustable tension brake helps prevent free-wheeling during operation, while the long-handled locking pin secures the reel during transport or storage.
• Reliable direct gear drive on motor driven models provides powered rewind with no chain.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities - storing long 12/3 power cord runs for tools, lights, and temporary electrical access points.
• Industrial maintenance and MRO - managing portable power around machinery, work cells, repair bays, and plant service areas.
• Service, mechanic, and utility vehicles - retrieving cord on mobile repair trucks, utility fleets, and field service equipment.
• Mining, construction, and railroad operations - supporting cord management where long reach and motorized rewind reduce manual handling.
• General shop and facility support - keeping cord off the floor when the reel, cord, electrical load, and installation method are properly matched.

FAQs:

• Q: Does the Coxreels 1125PCL-8312-EA come with cord installed?
  A: No. This model is supplied less cord. The buyer or installer must provide compatible 12/3 SOOW cord that fits the listed .50"-.63" cord grip range and does not exceed the reel capacity.
• Q: What does the 'EA' motor suffix mean?
  A: The 'EA' suffix identifies the 115V AC, 1/2 HP explosion proof reversible AC rectified motor option. The complete installation must still be reviewed for the specific electrical service, location classification, wiring method, and applicable local codes.
• Q: Is the full reel rated explosion proof?
  A: The catalog identifies the EA option as an explosion proof motor selection. Do not assume the entire installed cord reel system is approved for a hazardous location without confirming the motor, cord, wiring, fittings, mounting location, and electrical code requirements for the application.
• Q: What does the 30 Amp, 600 Volt rating refer to?
  A: The 30 Amp, 600 Volt rating applies to the slip ring assembly. The final working rating of the installation is limited by the lowest-rated component, including the reel, cord, connectors, fittings, and electrical service.
• Q: Should the cord be fully unspooled before energizing?
  A: Coxreels cautions that cord should be completely unspooled from the reel when energized unless the application follows the applicable NEC ampacity derating requirements for the number of current-carrying conductors and cord layers on the reel.
