Coxreels 1125PCL-8312-C Bevel Gear Crank Cord Reel | 1125PC Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

When long power cord runs need to be stored neatly without relying on a powered rewind system, the Coxreels 1125PCL-8312-C Bevel Gear Crank Cord Reel gives maintenance crews a controlled manual rewind option for plant, vehicle, and jobsite power management. This 1125PC Series reel is built for up to 250 ft of 12/3 SOOW cord and uses a 30-amp, 600-volt, 3-pole slip ring to transfer electrical power through the rotating drum. The front hand crank bevel geared crank provides mechanical rewind assistance, helping users retrieve long cord lengths with less effort than a straight hand crank layout.

The 1125PCL-8312-C is supplied less cord, allowing the buyer to install compatible cord based on the application's amperage, voltage, insulation, and code requirements. Its drum-located slip ring assembly keeps routine service access straightforward, while the all-welded steel 'A' frame, self-aligning pillow block bearings, adjustable tension brake, and long-handled locking pin support fixed mounting on shop floors, maintenance trucks, utility vehicles, and industrial work areas where long cord storage and controlled rewind are required.

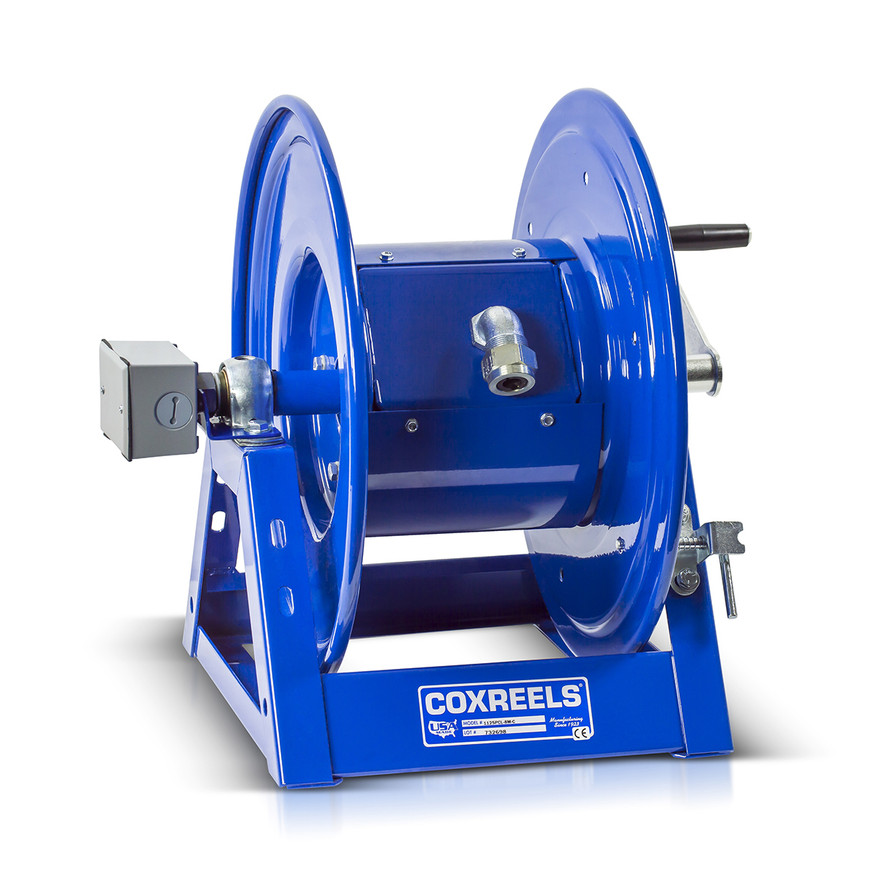

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Bevel Gear Crank Cord Reel | Series: 1125PC Series | Model: 1125PCL-8312-C | Configuration: Less Cord | Cord Capacity: 250 ft of 12/3 SOOW | Cord O.D.: .60" | Cord Grip Range: .50"-.63" | Slip Ring Rating: 30 Amps, 600 Volts | Slip Ring Poles: 3 | Rewind Option: Front Hand Crank Bevel Geared Crank | Approx. Reel Weight: 35 lbs before crank option | Crank Add-On Weight: 3 lbs

Features:

• Front hand crank bevel geared crank provides a mechanical rewind method for retrieving long cord lengths without an electric, air, or hydraulic motor.
• Drum-located slip ring assembly includes an easy-access cover for routine maintenance without removing the reel from its mounting location.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports compatible 3-conductor power cord applications.
• All-welded steel 'A' frame construction strengthens the reel body for fixed industrial and vehicle-mounted installations.
• Narrow frame width helps the reel fit into restricted installation spaces where side clearance is limited.
• Permanently lubricated, self-aligning pillow block bearings promote smooth drum rotation during payout and rewind.
• Cable Keeper helps prevent the lead cable from whipping or twisting as the drum rotates.
• Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.
• Long-handled locking pin secures the reel from rotation when the cord reel is being transported or stored.
• Durable proprietary CPC powder coat process, rolled edges, and ribbed discs add protection to the reel structure.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities - storing long 12/3 power cord runs for equipment, portable tools, and maintenance workstations.
• Service, mechanic, and utility vehicles - managing cord storage on trucks where a manual bevel gear crank is preferred over motorized rewind.
• Industrial maintenance and MRO - keeping electrical cord off floors and organized between repair, inspection, and equipment service tasks.
• Construction, mining, and railroad support operations - handling extended power cord lengths in jobsite or mobile service environments.
• Workshops and maintenance bays - reducing loose cord clutter while keeping long cord capacity available for general repair and power access needs.

FAQs:

• Q: Does the Coxreels 1125PCL-8312-C include cord?
  A: No. This model is supplied less cord. It provides reel capacity for up to 250 ft of compatible 12/3 SOOW cord, but the cord must be selected and installed separately.
• Q: What does the 'C' suffix mean on this cord reel?
  A: The 'C' suffix identifies the front hand crank bevel geared crank option. It is a manual rewind configuration, not an air, electric, or hydraulic motor rewind model.
• Q: What is the purpose of the slip ring assembly?
  A: The slip ring is the rotating electrical contact assembly that transfers power through the reel drum while the cord is wound or unwound. This model uses a 3-pole slip ring rated for 30 Amps and 600 Volts.
• Q: Can the reel be used with the cord partially wound while energized?
  A: Coxreels cautions that cord should be completely unspooled when energized unless the appropriate NEC ampacity derating factors are applied. Cord layers on a reel can affect heat buildup and current-carrying capacity.
• Q: Who determines the correct cord and electrical connection for this reel?
  A: The end user or qualified installer must select the correct cord gauge, insulation type, cord length, connectors, and electrical configuration for the application. The installation must comply with applicable national and local electrical codes.
