Coxreels 1125PCL-8312-E Electric 12V DC 1/3HP Motor Rewind Cord Reel | 1125PCL Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

When a facility, service truck, or jobsite needs controlled storage for long runs of power cable, the Coxreels 1125PCL-8312-E provides a motorized rewind platform for up to 250 ft of 12/3 SOOW cord. This 1125PCL Series power cord reel is supplied less cord, giving the installer flexibility to add compatible cable for the application while staying within the reel's 30 Amp, 600 Volt, 3-pole slip ring rating. The 12V DC, 1/3 HP reversible motor supports powered retrieval, which helps reduce manual handling on longer cord runs used around maintenance bays, utility vehicles, manufacturing areas, and mobile service equipment.

Built around Coxreels all-welded steel 'A' frame, drum-located slip ring assembly, and permanently lubricated self-aligning pillow block bearings, the 1125PCL-8312-E is made for applications where cord storage, electrical access, and controlled rewind matter. A slip ring assembly allows electrical current to pass through the rotating reel drum, while the externally mounted outlet box provides access to lead connections. The direct gear drive motor rewind uses no chain, helping keep operation smooth and straightforward during cord retrieval.

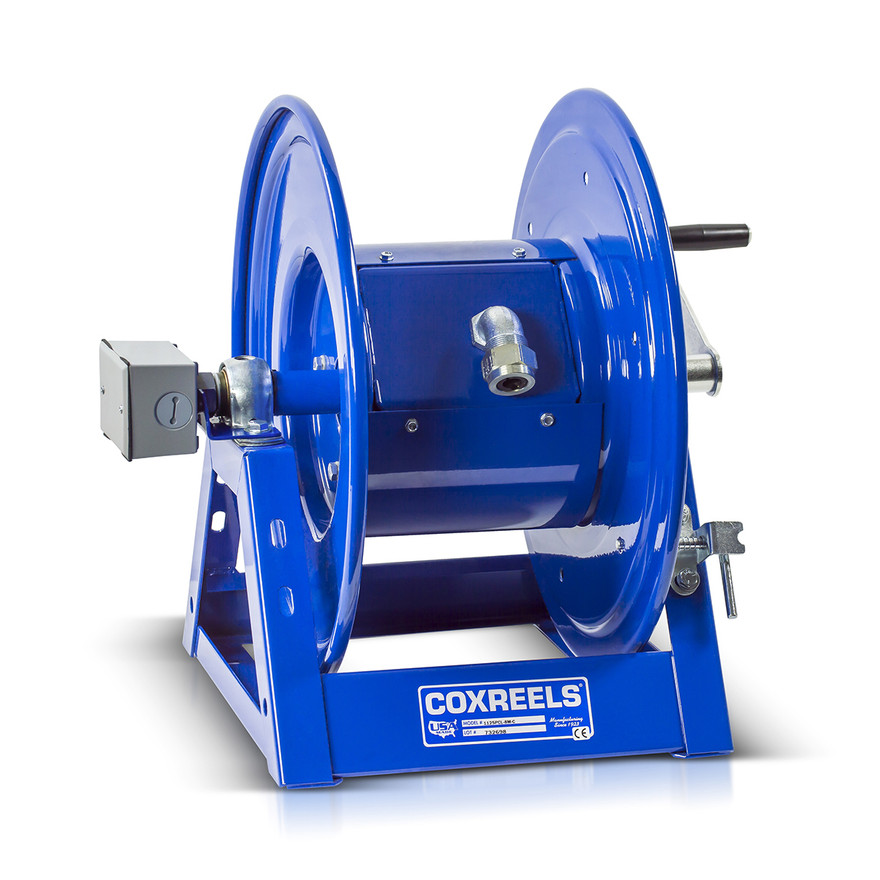

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8312-E | Configuration: Less Cord | Rewind: 12V DC, 1/3 HP Reversible Motor | Cord Capacity: 250 ft of 12/3 SOOW Cord | Cord O.D.: .60" | Cord Grip Range: .50"-.63" | Slip Ring Rating: 30 Amps, 600 Volts | Slip Ring Poles: 3 | Approx. Ship Weight: 48 lbs | Overall Dimensions: 19-7/8" W x 19-3/16" H x 17-1/2" L | Base Dimensions: 13-3/8" X x 16" Y | Drum Diameter: 8-1/2" | Drum Width: 8"

Features:

• Motorized cord reel platform stores up to 250 ft of 12/3 SOOW power cord when matched with the proper cord size and application requirements.
• Drum-located slip ring assembly includes an easy-access cover for routine maintenance without removing the reel from its mounting location.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports power cord applications that stay within the lowest-rated component in the system.
• All-welded steel 'A' frame construction strengthens the reel base and provides a stable mounting structure for mobile or fixed installations.
• Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly during extension and rewind.
• 3/4" trade size single gang outlet box provides external access to lead connections for installation and service.
• Cable Keeper helps prevent the lead cable from whipping or twisting as the reel rotates.
• Adjustable tension brake helps prevent free-wheeling, while the long-handled locking pin secures the reel during transport or storage.
• Reliable direct gear drive on motor driven models provides powered rewind with no chain.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities - managing long power cord runs for tools, lights, and equipment where cord storage must stay organized.
• Service, mechanic, and utility vehicles - storing 12/3 power cord for field maintenance, roadside service, mobile repair, and utility work.
• General industrial maintenance - routing temporary power to work areas while reducing loose cord on floors and around machinery.
• Construction and railroad operations - supporting portable electrical access where a motorized rewind reel helps retrieve cord from larger work zones.
• Mining and remote jobsite support - keeping long cable runs contained on service equipment when the reel, cord, and electrical load are properly matched.

FAQs:

• Q: Does the Coxreels 1125PCL-8312-E include cord?
  A: No. This model is supplied less cord. The installer must provide compatible 12/3 SOOW cord within the listed 250 ft capacity and cord grip range.
• Q: What does the 30 Amp, 600 Volt rating apply to?
  A: The rating applies to the reel's slip ring assembly. The finished installation must not exceed the lowest-rated component, including the reel, cord, connectors, and the electrical service used.
• Q: What is the purpose of the slip ring assembly?
  A: A slip ring assembly transfers electrical current through the rotating reel drum. Coxreels locates the slip ring in the drum with an access cover so routine maintenance can be performed more easily.
• Q: Should the cord be fully unspooled when energized?
  A: Coxreels cautions that cord should be completely unspooled from the reel when energized unless the application follows the appropriate NEC ampacity derating requirements for cord layers on the reel.
• Q: What type of rewind does this model use?
  A: The '-E' suffix identifies a 12V DC, 1/3 HP reversible motor rewind. The motor driven design uses a direct gear drive with no chain.
