Coxreels 1125PCL-8312-EB Electric 24V DC 1/2HP Motor Rewind Cord Reel | 1125PCL Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

For mobile equipment, plant maintenance areas, and fixed workstations that need powered retrieval for long power cord runs, the Coxreels 1125PCL-8312-EB provides a motorized reel platform with a 24V DC, 1/2 HP reversible motor. This 1125PCL Series cord reel is built to store up to 250 ft of 12/3 SOOW cord and uses a 30 Amp, 600 Volt, 3-pole slip ring assembly to carry electrical current through the rotating drum. Because this model is supplied less cord, the installer can select compatible cord for the job while keeping the complete installation within the ratings of the reel, cord, connectors, and power source.

The 1125PCL-8312-EB combines Coxreels all-welded steel 'A' frame with a drum-located slip ring assembly, external lead connection box, permanently lubricated self-aligning pillow block bearings, and direct gear drive motor rewind. A slip ring assembly allows current to pass through the reel as the drum rotates, while the easy-access cover supports routine service without removing the reel from its mount. The 24V DC motor rewind configuration is useful where low-voltage DC control or vehicle-based power is preferred for retrieving long cable runs.

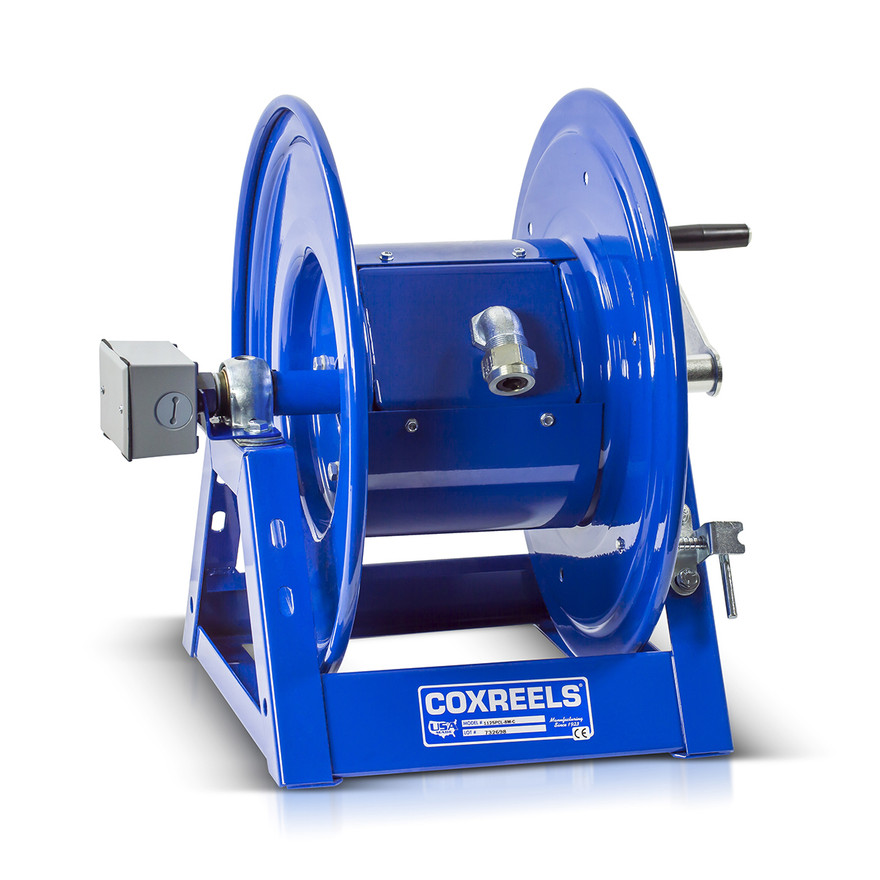

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8312-EB | Configuration: Less Cord | Rewind: 24V DC, 1/2 HP Reversible Motor | Cord Capacity: 250 ft of 12/3 SOOW Cord | Cord O.D.: .60" | Cord Grip Range: .50"-.63" | Slip Ring Rating: 30 Amps, 600 Volts | Slip Ring Poles: 3 | Approx. Ship Weight: 61 lbs | Overall Dimensions: 21-5/8" W x 19-3/16" H x 17-1/2" L | Base Dimensions: 13-3/8" X x 16" Y | Drum Diameter: 8-1/2" | Drum Width: 8"

Features:

• 24V DC, 1/2 HP reversible motor rewind assists with retrieving long 12/3 power cord runs without hand-cranking.
• Direct gear drive on motor driven models provides powered rewind without a chain drive.
• Drum-located slip ring assembly includes an easy-access cover for simple routine maintenance.
• 30 Amp, 600 Volt, 3-pole slip ring configuration supports compatible 3-conductor cord installations.
• All welded steel 'A' frame construction provides a rigid mounting structure for fixed or mobile reel installations.
• Permanently lubricated self-aligning pillow block bearings at each end of the drum help maintain smooth rotation.
• 3/4" trade size single gang outlet box provides external access to lead connections for installation and service.
• Cable Keeper helps prevent the lead cable from whipping or twisting as the reel rotates.
• Adjustable tension brake helps prevent free-wheeling, and the long-handled locking pin secures the reel during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Service and utility vehicles - retrieving long power cord runs from truck-mounted or equipment-mounted reel installations.
• Industrial maintenance and MRO - managing portable electrical access around repair bays, machinery, and plant service areas.
• Manufacturing work areas - keeping cord organized for temporary power, lighting, and tool access near production or maintenance stations.
• Construction and field service support - storing 12/3 cord where controlled rewind helps reduce manual handling across larger work zones.
• Fleet, railroad, and equipment service - supporting cord management for mobile repair operations when the cord, load, and installation method are properly matched.

FAQs:

• Q: Is cord included with the Coxreels 1125PCL-8312-EB?
  A: No. This model is supplied less cord. A compatible 12/3 SOOW cord must be selected and installed separately within the reel's listed capacity and cord grip range.
• Q: Where is a 24V DC motor rewind useful?
  A: A 24V DC motor rewind can be useful on mobile service equipment, utility vehicles, and low-voltage DC control systems where AC power is not the preferred rewind source. The installer should confirm the available power supply and control method before ordering.
• Q: What does the slip ring rating mean?
  A: The 30 Amp, 600 Volt rating applies to the slip ring assembly inside the reel. The finished electrical installation is limited by the lowest-rated part of the system, including the cord, connectors, fittings, wiring, and power source.
• Q: Can this reel be mounted on a truck or trailer?
  A: Yes, the all-welded steel 'A' frame and locking pin make the reel suitable for many mobile installations when it is mounted securely. The mounting surface, wiring protection, cord routing, and vibration exposure should be reviewed before installation.
• Q: Should the cord be fully pulled out before use?
  A: Coxreels cautions that cord should be completely unspooled from the reel when energized unless the installation follows the applicable NEC ampacity derating requirements for cord layers and current-carrying conductors.
