Coxreels 1125PCL-8312-EF Electric 24V DC 1/3HP Motor Rewind Cord Reel | 1125PCL Series | 250' (12/3) Capacity | 30 Amps | 600 Volts | Less Cord

When long electrical cord runs need organized storage and powered rewind, the Coxreels 1125PCL-8312-EF provides a motorized cord reel platform with 250 ft of 12/3 SOOW cord capacity, a 30 amp, 600 volt, 3-pole slip ring, and a 24V DC, 1/3 HP reversible motor. The 1125PCL Series uses a drum-located slip ring assembly, which is the rotating electrical contact system that transfers power through the reel while allowing the drum to turn. This configuration helps maintenance crews, service fleets, and plant teams manage long cord runs without relying on manual rewind after every use.

The reel's all-welded steel 'A' frame supports the drum structure, while permanently lubricated self-aligning pillow block bearings help maintain smooth rotation during payout and rewind. The EF motor option is a 24V DC rewind package suited to mobile and fixed installations where 24 volt control power is preferred. For facilities, utility trucks, manufacturing areas, and construction support work, this reel helps keep cord off floors, walkways, and service beds when the cord is not in use.

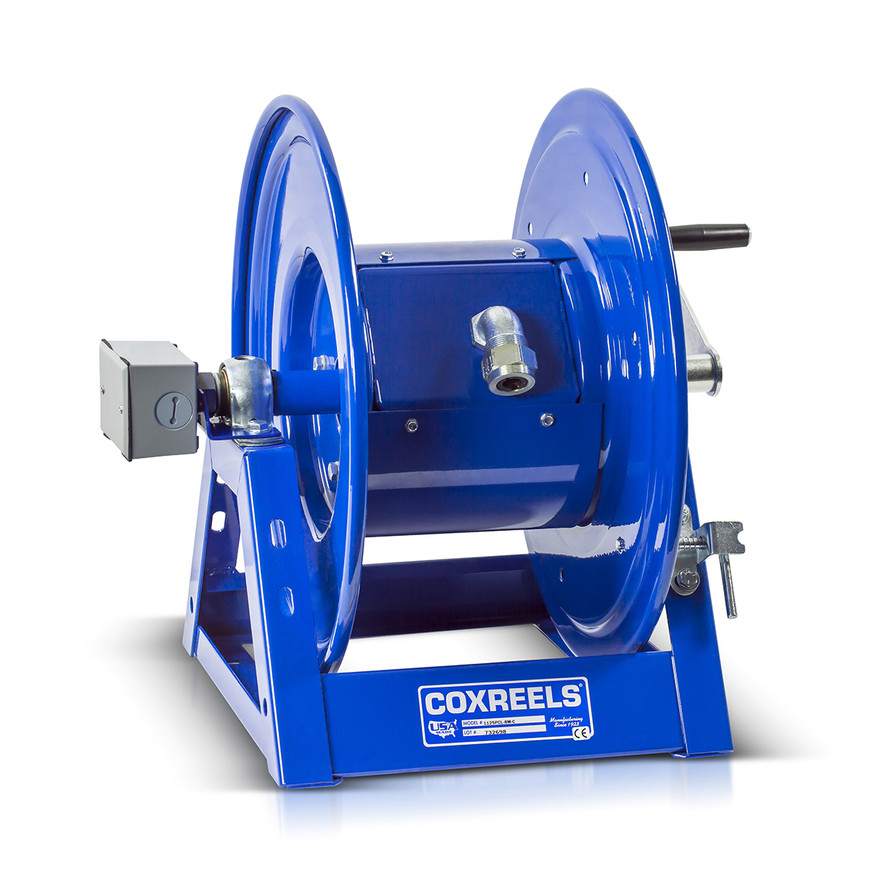

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any cord. Please note this before ordering.

Type: Motorized Power Cord Reel | Series: 1125PCL Series | Model: 1125PCL-8312-EF | Configuration: Less Cord | Motor Option: 24V DC, 1/3 HP, Reversible | Cord Capacity: 250 ft of 12/3 SOOW Cord | Cord O.D.: .60" | Cord Grip Range: .50"-.63" | Slip Ring Rating: 30 Amps, 600 Volts | Poles: 3 | Approx. Reel Weight: 35 lbs | Motor Option Add-On Weight: 13 lbs | Overall Dimensions: 21-5/8" W x 19-3/16" H x 17-1/2" L | Base: 13-3/8" x 16" | Mounting Pattern: 11-7/16" x 10" | Drum: 8-1/2" Dia. x 8" W

Features:

• Drum-located slip ring assembly with an easy-access cover supports routine maintenance without removing the reel from its mounting location.
• 30 amp, 600 volt, 3-pole slip ring configuration supports compatible 3-conductor power cord applications when the full electrical system is matched to the reel rating.
• 24V DC, 1/3 HP reversible motor provides powered rewind for long cord runs where hand-cranking would slow down the work cycle.
• All-welded steel 'A' frame construction strengthens the reel body for shop, vehicle, and facility installations.
• Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly with reduced routine bearing service.
• Narrow reel width helps the unit fit into restricted mounting spaces on service vehicles, workstations, and equipment skids.
• Cable Keeper helps prevent the lead cable from whipping or twisting during reel operation.
• Adjustable tension brake helps prevent free-wheeling during payout and rewind.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Reliable direct gear drive on motor-driven models eliminates chain-driven rewind components.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing and plant maintenance: storing long 12/3 cord runs for powered equipment, temporary workstations, and facility service points.
• Utility, mechanic, and fleet service trucks: managing cord deployment from mobile service bodies where 24V DC rewind power is available.
• Construction and field support operations: keeping power cord organized between tasks and reducing loose cord across work areas.
• Industrial MRO departments: controlling cord storage in repair bays, maintenance shops, and equipment staging areas.
• Vehicle-mounted equipment packages: supporting retractable cord storage on skids, trailers, and service units when the reel rating and electrical installation are properly matched.

FAQs:

• Q: Does the Coxreels 1125PCL-8312-EF come with cord installed?
  A: No. This model is supplied less cord. The buyer must provide compatible 12/3 SOOW cord that fits the reel's 250 ft capacity, .60" cord O.D. reference, and .50"-.63" cord grip range.
• Q: What is the difference between EF and other Coxreels motor options?
  A: The EF suffix identifies the 24V DC, 1/3 HP reversible motor option. Other suffixes may indicate 12V DC, 24V DC 1/2 HP, explosion proof, air motor, hydraulic motor, or direct hand crank configurations.
• Q: Is this EF model explosion proof?
  A: No. The EF option is listed as a 24V DC, 1/3 HP reversible motor. For explosion proof motor configurations, confirm the correct Coxreels suffix and hazardous-location requirements before ordering.
• Q: What does the 30 amp, 600 volt rating apply to?
  A: The 30 amp, 600 volt rating applies to the slip ring assembly. The complete installation must also account for the cord, plug, connector, circuit protection, and applicable electrical code requirements.
• Q: Can the cord remain wound on the reel while energized?
  A: Coxreels cautions that cord should be fully unspooled from the reel when energized unless applicable NEC ampacity derating factors are followed. This helps reduce the risk of heat buildup in layered cord.
