Coxreels 1125-6-75-ED Electric 12V DC Explosion Proof 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

Built for service trucks, washdown equipment, spray systems, and fluid handling setups that need powered hose retrieval, the Coxreels 1125-6-75-ED combines the 1125 Series motorized reel platform with a 12V DC, 1/2 HP explosion-proof reversible motor. The explosion-proof motor configuration is used where the installation requires an explosion-proof drive package, while the reversible function allows powered control in both pay-out and rewind directions when wired with the proper controls. With capacity for 75 ft of 1" I.D. hose and a 3,000 PSI maximum pressure rating, this reel is suited for medium-pressure hose management when paired with compatible hose, fittings, and system components.

The 1125 Series is built around Coxreels’ one-piece all-welded steel "A" frame, low profile outlet riser, and open drum slot design, which helps the hose wrap flat across the drum instead of bunching or crimping. Motor-driven models use a direct gear drive for smooth retraction without a chain, while permanently lubricated self-aligning pillow block bearings, rolled ribbed discs, an adjustable tension brake, and a long-handled locking pin support controlled hose handling in mobile and fixed-mount installations.

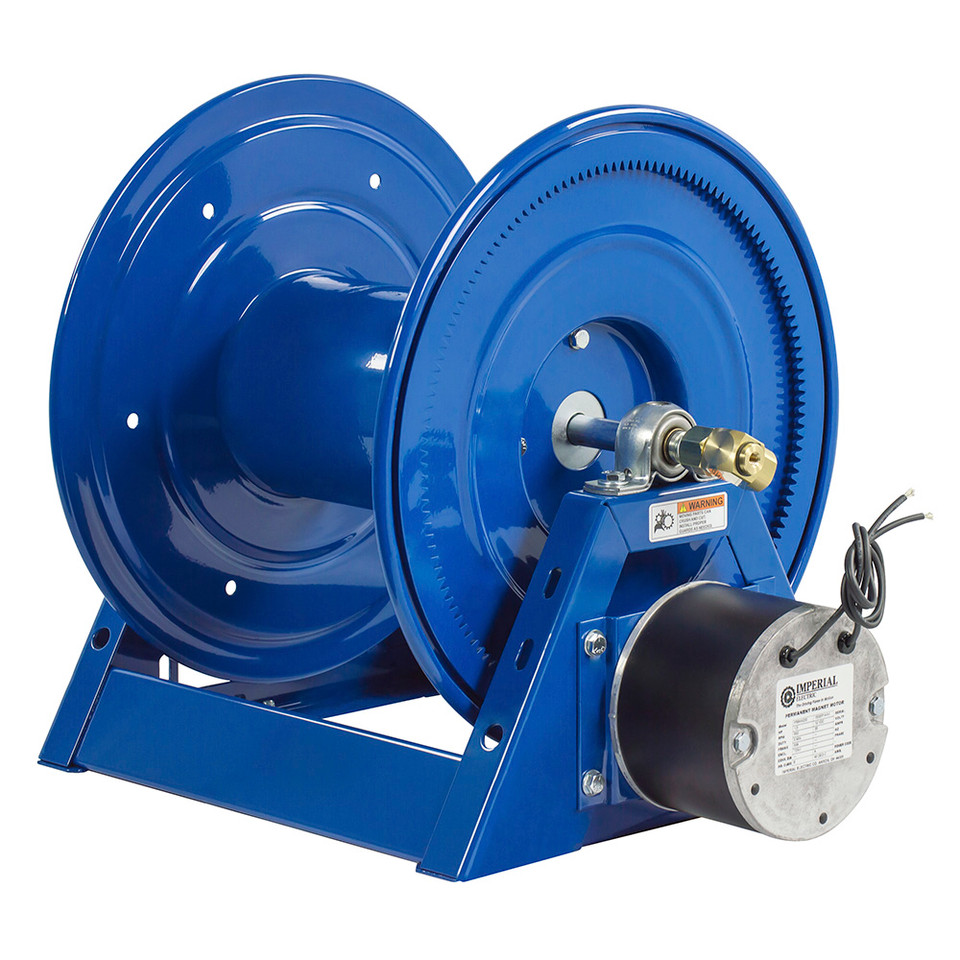

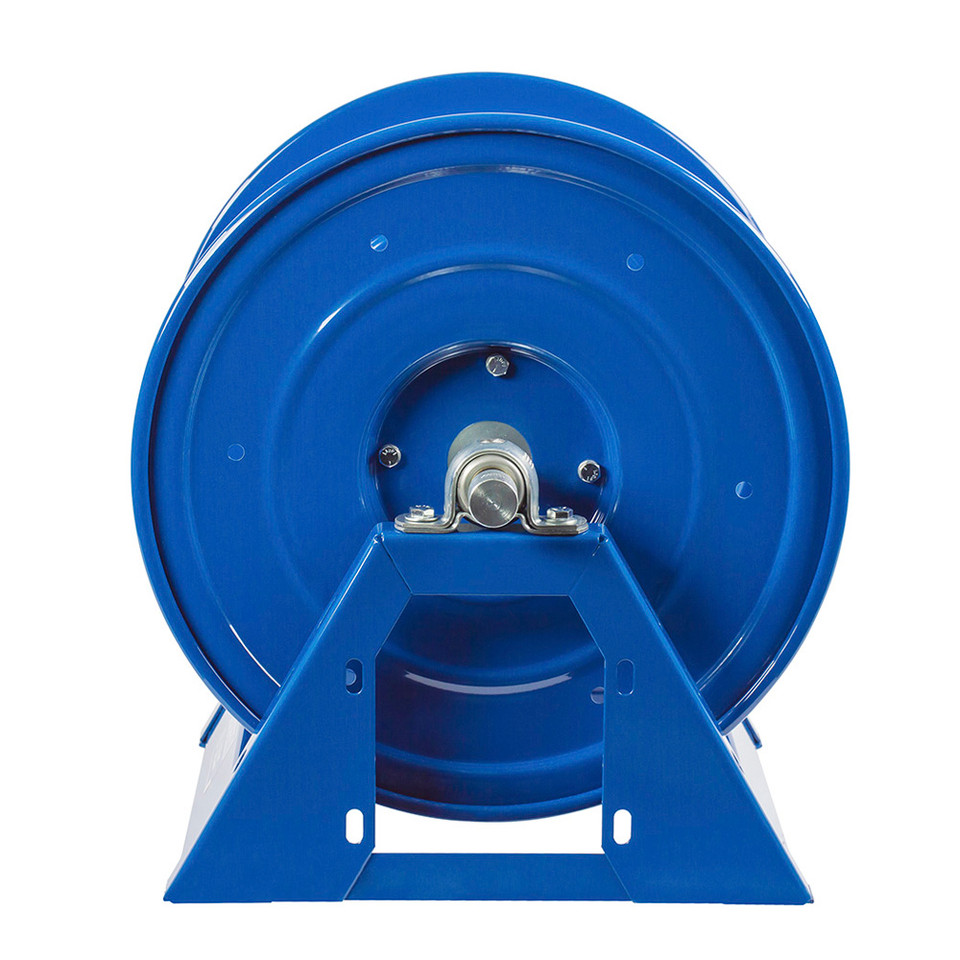

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-75-ED | Configuration: Less Hose | Motor: 12V DC, 1/2 HP, Explosion Proof, Reversible | Drive: Direct Gear Drive | Hose I.D.: 1" | Hose O.D.: 1 7/16" | Hose Capacity: 75 ft | Hose Included: No | Max Pressure: 3,000 PSI | Ship Weight: 88 lbs | Overall Dimensions: 34.38" W x 19.13" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 16" Y

Features:

• 12V DC, 1/2 HP explosion-proof reversible motor supports powered operation from compatible vehicle or equipment electrical systems.
• Reliable direct gear drive on motor-driven models provides quiet, smooth retraction with no chain to stretch, adjust, or lubricate.
• All welded steel “A” frame construction provides a rigid reel structure for truck bodies, skids, trailers, and fixed installations.
• Exclusive low profile outlet riser and open drum slot design help produce a flat, smooth hose wrap with reduced crimping risk.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during pay-out and rewind.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Rolled edges and ribbed discs add strength while helping protect the hose during normal use.

Made in USA:

2 Year Warranty

Applications:

• Mobile service equipment: Powered hose management for service trucks, trailers, and skid-mounted systems using compatible 12V DC electrical power.
• Pressure washing and washdown: Storing and retrieving larger 1" hose runs where controlled rewind helps reduce dragging, tangling, and manual handling.
• Oil, lubrication, and grease service: Hose deployment for medium-pressure fluid handling when the selected hose and seals match the media being transferred.
• Pest control and spraying operations: Managing long spray hose runs on mobile rigs while keeping hose organized between jobs.
• Industrial MRO and utility work: Hose storage for plant maintenance, equipment cleaning, water service, and other reel applications within the 3,000 PSI rating.

FAQs:

• Q: What does "less hose" mean on the 1125-6-75-ED?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1" I.D. hose separately, and the hose must match the reel capacity, pressure rating, media, temperature, and fitting requirements.
• Q: What does the -ED motor option identify?
  A: The "ED" suffix identifies a 12V DC, 1/2 HP explosion-proof reversible electric motor option. It is selected when the reel needs 12V DC powered operation and the installation calls for an explosion-proof motor configuration.
• Q: Is this reel suitable for hydraulic, oil, or grease applications?
  A: Yes, the 1125 Series is listed for applications that include grease / hydraulics and oil / lubrication, provided the hose, fittings, and system components are compatible with the fluid being handled. The reel itself must not be used above its 3,000 PSI maximum pressure rating.
• Q: Does this reel include the switch or wiring controls?
  A: The model title and source data identify the reel and motor configuration but do not confirm included controls. Switches, relays, circuit protection, junction boxes, and other electrical accessories should be verified or ordered separately based on the installation.
• Q: What should be checked before ordering this explosion-proof motor rewind reel?
  A: Confirm the available 12V DC power supply, mounting space, hose outside diameter, media compatibility, pressure rating, and required controls. For any classified or hazardous-location installation, verify the site classification and electrical requirements before purchase.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
