For long hose runs where a standard hand crank can become tiring, the Coxreels 1125-6-75-C adds a bevel geared crank to the proven 1125 Series reel platform. The bevel gear drive changes the crank input through a geared mechanism, helping the operator retrieve hose with smoother control than a direct crank on larger-capacity reels. This model is built for 1" I.D. hose with a 75 ft hose capacity and a 3000 PSI maximum pressure rating, making it suitable for medium-pressure air, water, oil, washdown, spraying, and fluid-transfer applications when paired with compatible hose and fittings.
The 1125 Series uses a one-piece welded steel "A" frame base, low-profile outlet riser, and open drum slot to help the hose wrap flat across the drum without sharp crimping. Because this reel is supplied less hose, buyers can select the exact hose construction needed for their media, temperature, pressure, and jobsite requirements. The 1" female NPT inlet swivel and outlet riser support straightforward connection planning for shop air systems, mobile maintenance rigs, service bays, washdown areas, and field equipment setups.

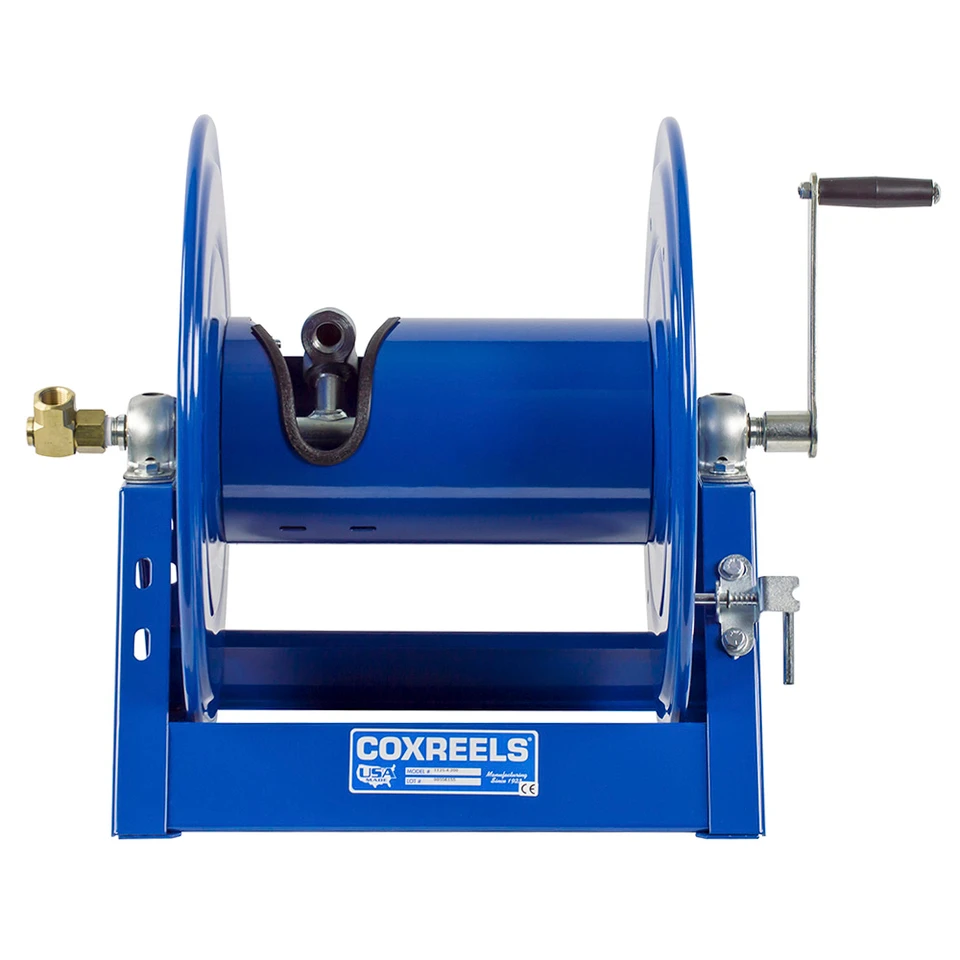

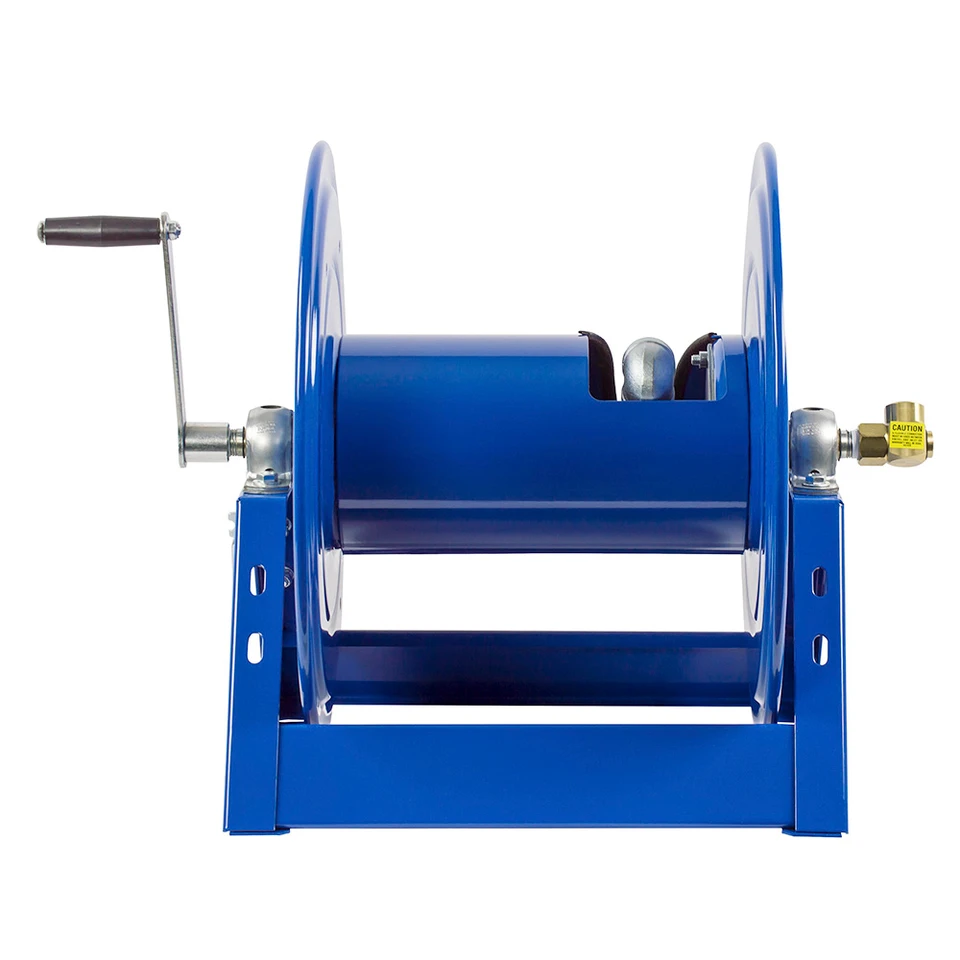

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Model: 1125-6-75-C | Configuration: Less Hose | Rewind Type: Bevel Geared Hand Crank | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 75 ft | Inlet Swivel & Outlet Riser: 1" F NPT | Max Pressure: 3000 PSI | Hose Included: No | Drum Width: 22" | Approx. Ship Weight: 62 lbs | Overall Dimensions: 38.5" W x 18.5" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 15.38" Y
Features:
- Bevel geared crank option provides controlled manual hose retrieval on larger reel configurations.
- Exclusive low profile outlet riser and open drum slot design helps create a flat, smooth hose wrap while reducing hose crimping.
- One-piece all welded steel "A" frame base provides a rigid mounting structure without a bolted frame assembly.
- Mounting pattern located in the steel base helps simplify installation and reel removal when service access is needed.
- Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation during repeated use.
- Adjustable tension brake helps prevent free-wheeling as hose is pulled out or rewound.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- CPC powder coat finish helps resist chips and rust in shop, truck, and field environments.
Made in USA:
Applications:
- Plant maintenance and MRO areas using 1" hose for air, water, oil, or general utility service.
- Fleet maintenance shops and mobile service trucks that need organized hose storage without electric or air-powered rewind.
- Washdown and pressure washing stations where a 3000 PSI reel platform supports medium-pressure hose handling.
- Agricultural spraying, grounds maintenance, and pest or weed control systems using compatible hose and fittings.
- Construction yards, equipment rental shops, and field service teams building a custom hose reel assembly around specific media requirements.
FAQs:
- Q: What does "less hose" mean for this Coxreels 1125 Series reel?
A: It means the reel is supplied without hose installed. The buyer must select and install hose separately, making sure the hose size, pressure rating, media compatibility, and temperature rating fit the job. - Q: What is the difference between the 1125-6-75-C and a standard hand crank model?
A: The "C" suffix identifies the bevel geared crank option. The geared crank changes how the handle drives the drum, which can make manual retrieval more controlled on larger hose capacities. - Q: Can this reel be used for compressed air?
A: Yes, it can be used for compressed air when the installed hose and fittings are rated for the system pressure and air service. The reel is rated up to 3000 PSI, but the complete assembly is limited by its lowest-rated component. - Q: What hose size is this reel built to hold?
A: This model is listed for 75 ft of 1" I.D. hose with a 1-7/16" O.D. Using hose with a different outside diameter may change the amount of hose the drum can safely hold. - Q: Where can this reel be mounted?
A: The 1125 Series can be installed where the mounting surface supports the reel, hose weight, and pulling forces during use. Before installation, confirm the 27.38" x 10" mounting pattern, hose pull direction, and available clearance around the crank handle.
| LESS HOSE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
| 1125-6-75 | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-A | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-AB | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-C | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-E | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-EA | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-EB | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-ED | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-EF | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
| 1125-6-75-H | 1" | 1 7/16" | 75 | 3/4" | 1 1/4" | 120 | 1" F NPT | 3,000 | 62 | 13 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
