Coxreels 1125-6-75-EB Electric 24V DC 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

When a manual crank is not the right fit for repeated hose retrieval, the Coxreels 1125-6-75-EB provides motorized rewind for high-pressure hose storage in service trucks, washdown stations, hydraulic service areas, spraying operations, and industrial MRO spaces. This 1125 Series reel is built for 1" I.D. hose with a 75 ft hose capacity and a 3000 PSI maximum pressure rating, giving buyers room for larger-diameter hose runs where flow and reach matter. The 24V DC, 1/2 HP electric motor supports powered hose retrieval, while the direct gear drive helps retract hose without a chain-driven mechanism.

The 1125 Series uses Coxreels one-piece welded steel "A" frame, low-profile outlet riser, and open drum slot design to help guide hose into a flatter, smoother wrap. On 1" models, Coxreels specifies a nickel-plated steel swivel with AFLAS seals, supporting higher-pressure fluid handling applications when the installed hose and media are compatible with the reel configuration.

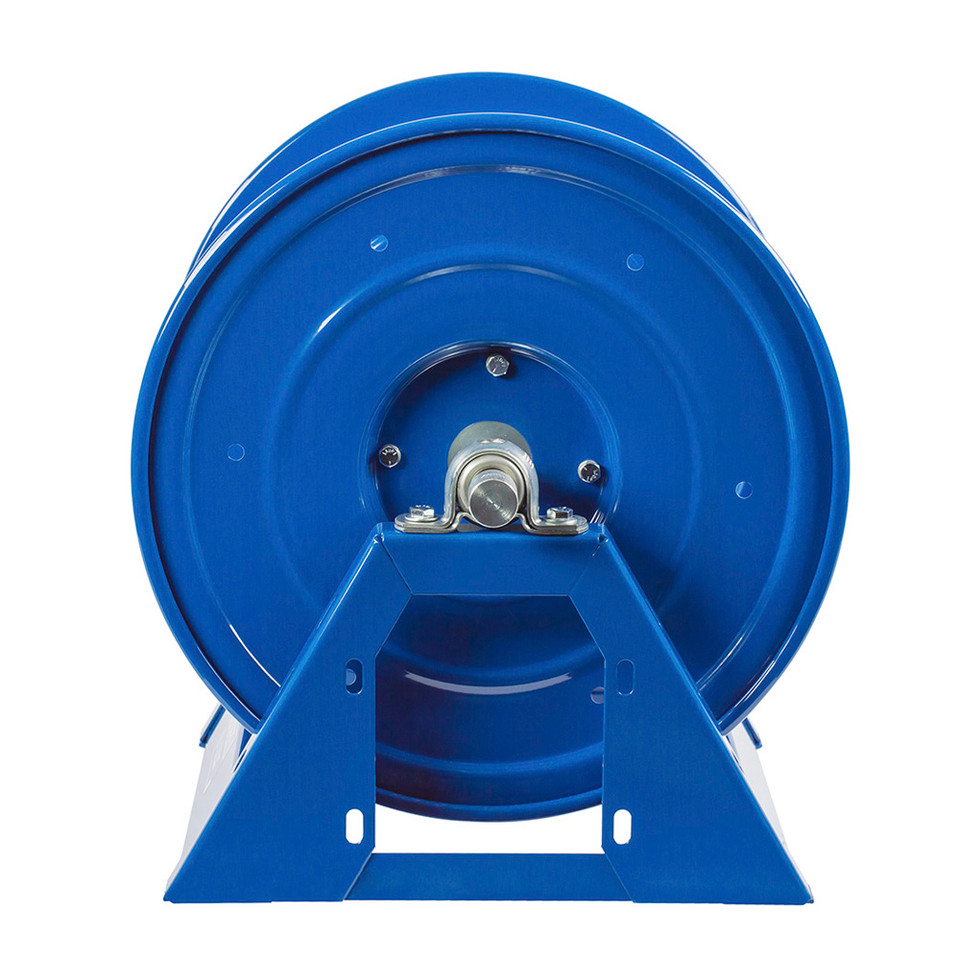

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-75-EB | Configuration: Less Hose | Motor: 24V DC, 1/2 HP, Rewind Reversible Type | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 75 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 88 lbs | Overall Dimensions: 34.38" W x 19.13" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 16" Y

Features:

• 24V DC, 1/2 HP electric rewind motor helps retrieve hose without hand cranking, useful for longer hose runs and repeated service cycles.
• Direct gear drive on motor-driven models provides smooth, quiet retraction without a chain drive.
• All-welded steel "A" frame construction provides a rigid base structure for floor, bench, truck, or skid-style installations where the mounting surface is suitable.
• Low-profile outlet riser and open drum slot design help reduce hose crimping and promote a flatter wrap on the drum.
• Nickel-plated steel 90° full-flow NPT swivel on 1" models supports fluid transfer through the reel while allowing drum rotation.
• AFLAS swivel seals on 1" models are specified by Coxreels for this reel size.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during payout and rewind.
• Adjustable tension brake helps reduce free-wheeling during operation, while the long-handled locking pin secures the reel during storage or transport.
• Rolled edges and ribbed discs help protect hose during winding and add strength to the drum assembly.
• Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the steel reel frame in shop and field environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial MRO and plant maintenance areas needing powered hose rewind for high-pressure hose storage and controlled hose retrieval.
• Service trucks, skids, and mobile maintenance platforms where 24V DC power is available and manual hose rewind is less practical.
• Pressure washing, washdown, spraying, and fluid transfer setups when the selected hose, fittings, and media are compatible with the reel's 3000 PSI rating.
• Hydraulic, grease, oil, and lubrication service environments requiring a larger 1" hose capacity and organized hose management.
• Fleet, utility, and equipment maintenance shops that need a reel-only configuration so hose can be selected separately for the exact service requirement.

FAQs:

• Q: Does the Coxreels 1125-6-75-EB include hose?
  A: No. This is a less-hose reel, meaning the reel is supplied without hose installed. A compatible 1" I.D. hose must be purchased and installed separately.
• Q: What does the "EB" suffix mean on this Coxreels model?
  A: The EB suffix identifies the electric 24V DC, 1/2 HP rewind reversible motor option for the 1125 Series reel.
• Q: What hose size fits this reel?
  A: This model is rated for 1" I.D. hose with 1-7/16" O.D. and a 75 ft hose capacity. Hose selection should also match the pressure, temperature, media, and fitting requirements of the application.
• Q: Can this reel be used for high-pressure applications?
  A: Yes, the reel has a 3000 PSI maximum pressure rating. The complete hose assembly, fittings, swivel, and media compatibility should be checked before installation.
• Q: Why choose an electric motor rewind reel instead of a hand crank reel?
  A: Electric rewind reduces the manual effort needed to retrieve hose, which is helpful on longer hose runs, larger-diameter hose, or mobile service equipment where repeated rewind cycles are common.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
