Coxreels 1125-6-75-AB Compressed Air #6 Gast Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

When a manual crank slows down hose handling on service trucks, washdown stations, or plant maintenance bays, the Coxreels 1125-6-75-AB provides powered rewind through an AB air motor rewind configuration using a 6-vane cast iron air motor. This 1125 Series reel is sized for 1" I.D. hose with a 75 ft hose capacity, giving maintenance teams enough reach for large work areas while keeping hose stored on a structured, open-drum frame. Rated for up to 3000 PSI, it supports medium-pressure air, water, oil, washdown, spraying, and fluid-transfer setups when paired with hose that matches the pressure, temperature, and media requirements of the application.

The 1125 Series uses a one-piece welded steel "A" frame, low-profile outlet riser, and open drum slot design to help hose wrap flat without crimping. Its motor-driven direct gear drive retracts the reel without a chain, while the long-handled locking pin secures the drum during transport or storage. The 1" female NPT inlet swivel and outlet riser simplify hose connection planning for technicians configuring a reel for compressed air, washdown, pressure washing, ground maintenance, or mobile service applications.

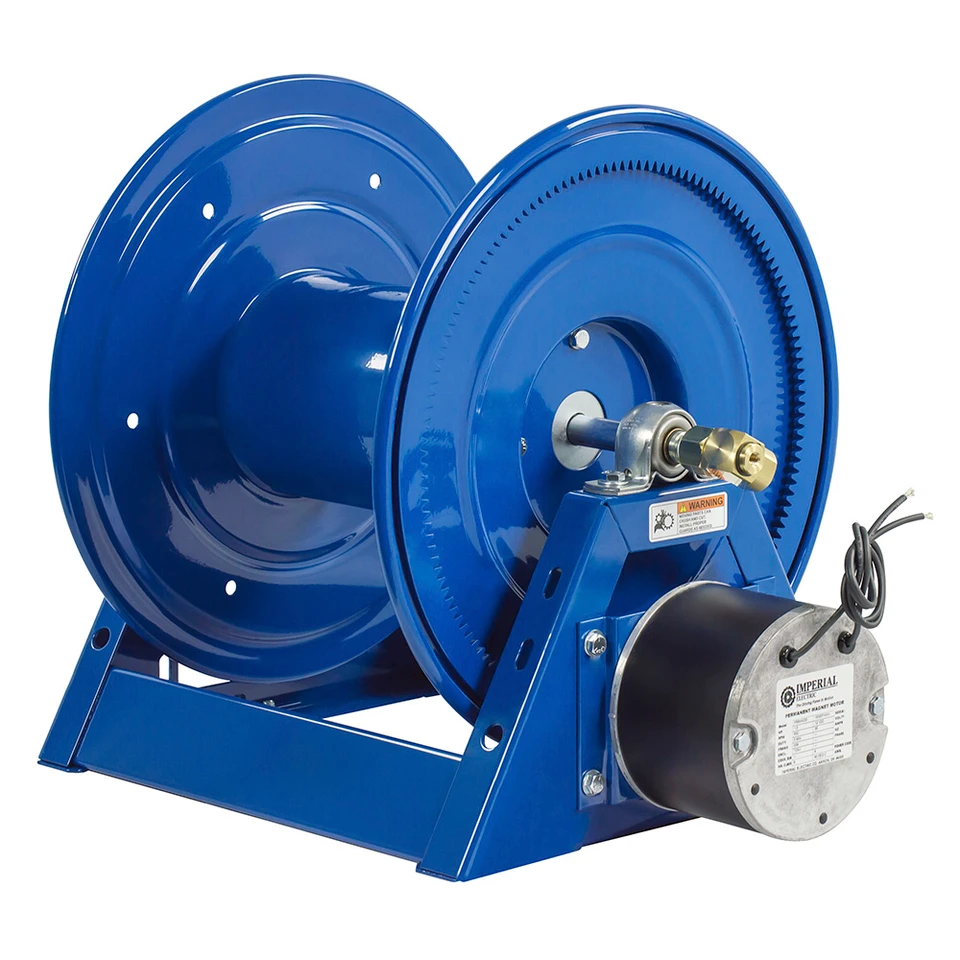

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-75-AB | Configuration: Less Hose | Rewind Type: Air Motor Rewind | Motor Option: AB, Air - 6 Vane Cast Iron Air Motor | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 75 ft | Optional Hose Capacity: 3/4" I.D. x 1-1/4" O.D. x 120 ft | Inlet Swivel & Outlet Riser: 1" F NPT | Max Pressure: 3000 PSI | Hose Included: No | Approx. Ship Weight: 70 lbs | Overall Dimensions: 34.75" W x 18.5" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 16" Y

Features:

• Air motor rewind uses the AB 6-vane cast iron air motor option for powered hose retrieval where electric rewind is not preferred.
• Reliable direct gear drive on motor driven models provides quiet, smooth retraction with no chain to maintain.
• All welded steel "A" frame construction supports the reel structure without a bolted frame assembly.
• Exclusive low profile outlet riser and open drum slot design helps create a flat, smooth hose wrap and reduces hose crimping during rewind.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation during repeated use.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• CPC powder coat finish helps resist chips and rust in shop, service truck, and outdoor work environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial plant and MRO departments managing compressed air, water, or oil hose in production and maintenance areas.
• Mobile service trucks and fleet maintenance vehicles where powered rewind helps recover long hose runs quickly after field work.
• Washdown, pressure washing, and ground maintenance applications using compatible 3000 PSI hose and fittings.
• Agricultural spraying, pest and weed control, and hydro seeding setups where a medium-pressure reel supports organized hose deployment.
• Construction sites and equipment yards that need a reel-only platform for custom hose selection based on media, pressure, and temperature requirements.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-75-AB?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1" I.D. hose separately and confirm that the hose pressure, temperature, and media ratings match the application.
• Q: What does the AB motor option mean?
  A: The AB suffix identifies an air motor rewind option with a 6-vane cast iron air motor. This allows the reel to retract using compressed air rather than a hand crank, electric motor, or hydraulic drive.
• Q: Can this reel be used for compressed air service?
  A: Yes, when the installed hose, fittings, and operating pressure are appropriate for the air system. The reel is rated up to 3000 PSI, but the working limit of the assembled system is determined by the lowest-rated component.
• Q: What hose size fits this model?
  A: The standard listed capacity is 75 ft of 1" I.D. hose with a 1-7/16" O.D. Coxreels also lists an optional capacity of 120 ft using 3/4" I.D. hose with a 1-1/4" O.D.
• Q: What should be checked before mounting this reel?
  A: Confirm the available mounting space, bolt pattern, hose routing direction, and air motor clearance. This model lists overall dimensions of 34.75" W x 18.5" H x 17.63" L with a 27.38" M x 10" N mounting pattern.
