Coxreels 1125-6-75-EA Electric 115V Explosion Proof 1/2 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

When a hose reel needs powered rewind in a location where the motor specification matters, the Coxreels 1125-6-75-EA combines the large-capacity 1125 Series reel platform with an electric 115V explosion proof 1/2 HP motor. This configuration is built for 1" I.D. hose with a 75 ft hose capacity, giving service crews extended reach while keeping hose stored on a structured, open-drum reel. With a 3000 PSI maximum pressure rating, it supports medium-pressure air, water, oil, spraying, washdown, and fluid-transfer systems when the installed hose and fittings are properly matched to the media and pressure requirements.

The 1125 Series frame uses Coxreels one-piece welded steel "A" frame, low-profile outlet riser, and open drum slot to help hose wrap flat across the drum instead of bunching or crimping. Because this model is supplied less hose, buyers can choose hose construction based on chemical compatibility, temperature range, bend radius, pressure rating, and jobsite conditions. The 1" female NPT inlet swivel and outlet riser provide a straightforward connection point for custom reel assemblies used in shops, maintenance departments, field service equipment, and fixed washdown stations.

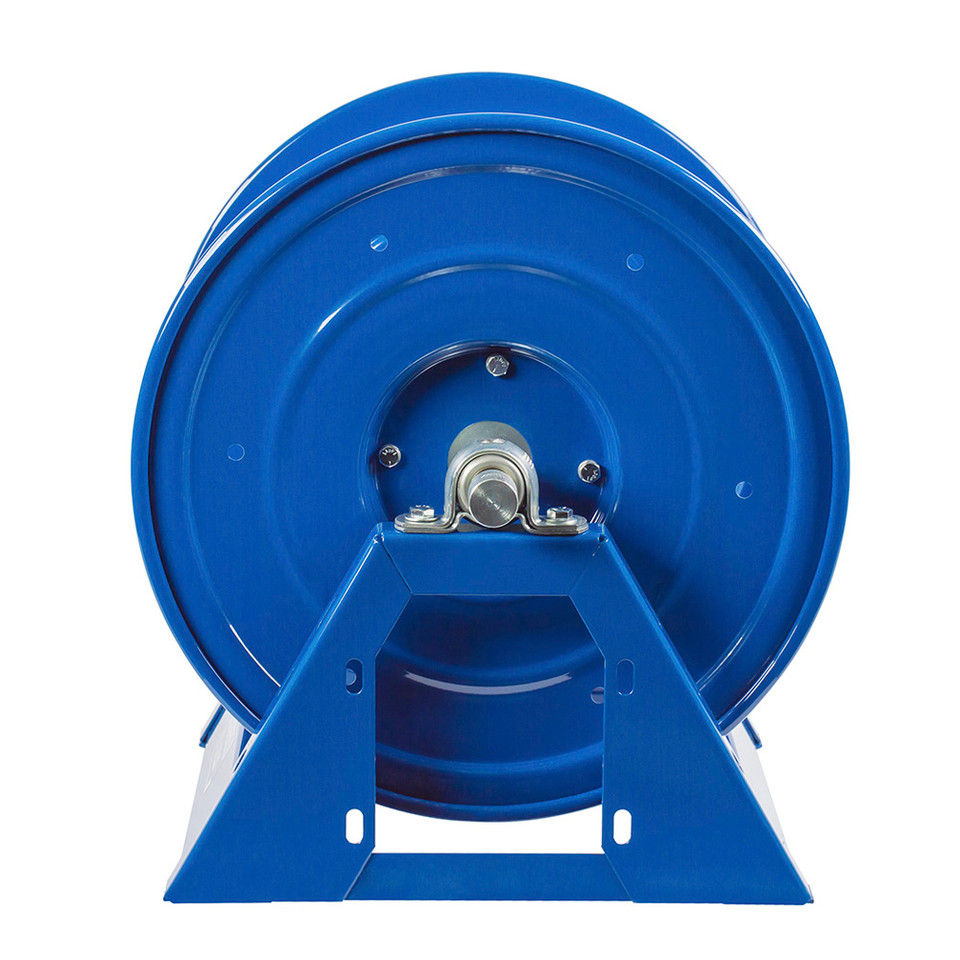

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-75-EA | Configuration: Less Hose | Rewind Type: Electric Motor Rewind | Motor: 115V Explosion Proof, 1/2 HP | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 75 ft | Inlet Swivel & Outlet Riser: 1" F NPT | Max Pressure: 3000 PSI | Hose Included: No | Approx. Ship Weight: 75 lbs | Overall Dimensions: 26.38" W x 19.13" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 16" Y

Features:

• 115V explosion proof 1/2 HP electric motor rewind provides powered hose retrieval for applications requiring this motor configuration.
• Reliable direct gear drive on motor driven models delivers quiet, smooth retraction with no chain to maintain.
• All welded steel "A" frame construction creates a rigid reel structure for fixed or mobile mounting.
• Exclusive low profile outlet riser and open drum slot design helps create a flat, smooth hose wrap while reducing hose crimping.
• Nickel plated steel 90° full-flow NPT swivel inlet on 1" models supports the reel's larger hose configuration.
• Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly during repeated hose payout and rewind cycles.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Long-handled locking pin secures the reel from rotation during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Industrial maintenance and MRO departments using powered rewind for 1" air, water, oil, or utility hose assemblies.
• Washdown, pressure washing, and cleaning stations where a medium-pressure reel platform helps organize long hose runs.
• Service areas that require a 115V explosion-proof motor configuration for the reel rewind system.
• Agricultural spraying, hydro seeding, grounds maintenance, and pest or weed control systems using compatible hose and fittings.
• Construction yards, equipment service shops, and fixed plant installations where a less-hose reel allows custom hose selection.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-75-EA?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1" I.D. hose separately and confirm that the hose pressure rating, media compatibility, temperature range, and bend radius fit the application.
• Q: What does the EA suffix indicate?
  A: The EA suffix identifies the 115V explosion-proof 1/2 HP electric motor rewind configuration. Confirm the required electrical supply and applicable site requirements before installation.
• Q: Can this reel be used for compressed air or water service?
  A: Yes, when the installed hose, fittings, and operating conditions are compatible with the service. The reel is rated up to 3000 PSI, but the complete assembly should always be operated within the rating of its lowest-rated component.
• Q: What hose size does this reel hold?
  A: This model is listed for 75 ft of 1" I.D. hose with a 1-7/16" O.D. Hose with a different outside diameter may change the amount of hose the drum can properly store.
• Q: Is this reel supplied ready to connect to power?
  A: The product listing identifies the motor configuration, but installation details, wiring, controls, and compliance requirements should be handled by qualified personnel according to the site and electrical code requirements.
