Coxreels 1125-6-75-E Electric 12V DC 1/3 HP Motor Rewind Hose Reel | 1125 Series | 1" Hose Diameter | 75' Hose Length | 3000 Max PSI | Less Hose

When hose retrieval needs to be faster than a hand crank but simpler than an air or hydraulic rewind setup, the Coxreels 1125-6-75-E provides electric rewind on the proven 1125 Series reel platform. This model uses a 12V DC 1/3 HP electric motor, making it a strong fit for mobile equipment, service trucks, trailers, and other vehicle-powered systems where 12-volt power is available. Built for 1" I.D. hose with a 75 ft hose capacity and a 3000 PSI maximum pressure rating, it supports medium-pressure air, water, oil, pressure washing, spraying, washdown, and fluid-transfer applications when paired with compatible hose and fittings.

The 1125 Series reel body combines a one-piece welded steel "A" frame, low-profile outlet riser, and open drum slot to help the hose wrap flat across the drum instead of bunching or crimping. Because this configuration is sold less hose, buyers can select the exact hose construction required for the media, temperature, pressure, and bend-radius demands of the job. The 1" female NPT inlet swivel and outlet riser also make it easier to plan hose connections for shop, truck-mounted, agricultural, and maintenance applications.

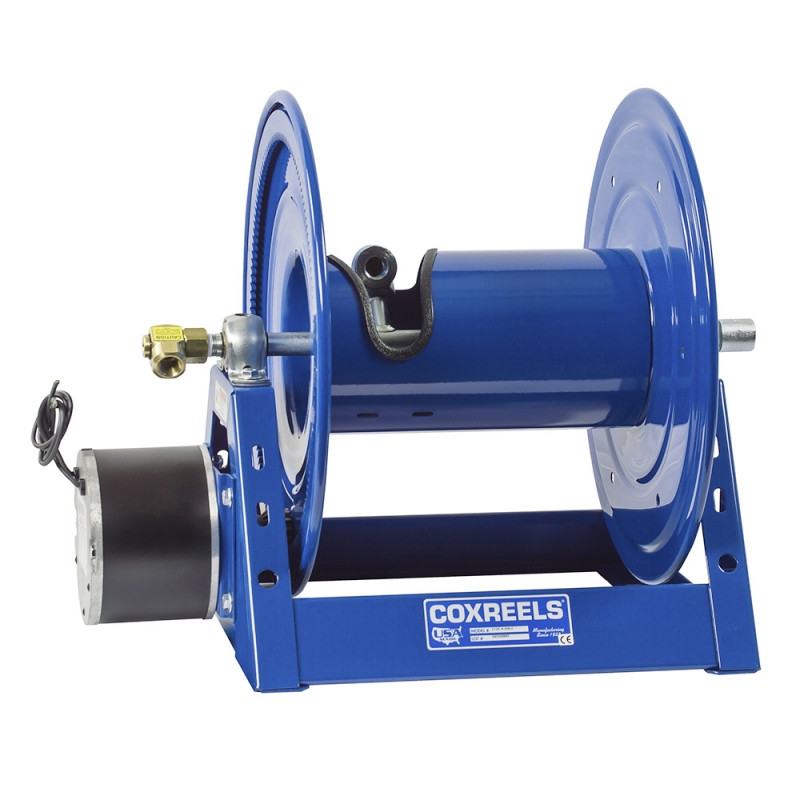

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-6-75-E | Configuration: Less Hose | Rewind Type: Electric Motor Rewind | Motor: 12V DC, 1/3 HP | Hose I.D.: 1" | Hose O.D.: 1-7/16" | Hose Capacity: 75 ft | Inlet Swivel & Outlet Riser: 1" F NPT | Max Pressure: 3000 PSI | Hose Included: No | Approx. Ship Weight: 75 lbs | Overall Dimensions: 26.38" W x 19.13" H x 17.63" L | Mounting Pattern: 27.38" M x 10" N | Base: 27.38" X x 16" Y

Features:

• 12V DC electric rewind motor supports powered hose retrieval on service trucks, trailers, and equipment with compatible vehicle power.
• Reliable direct gear drive on motor driven models provides quiet, smooth retraction with no chain to maintain.
• All welded steel "A" frame construction creates a rigid reel base for fixed or mobile mounting.
• Exclusive low profile outlet riser and open drum slot design helps create a flat, smooth hose wrap while reducing hose crimping.
• Nickel plated steel 90° full-flow NPT swivel inlet on 1" models supports the reel's higher-flow hose configuration.
• Permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly through repeated pull-out and rewind cycles.
• Adjustable tension brake helps prevent free-wheeling during hose payout and rewind.
• Long-handled locking pin secures the reel from rotation during transport or storage.

Made in USA:

2 Year Warranty

Applications:

• Mobile service trucks and fleet maintenance vehicles using 12V DC power for powered hose rewind in the field.
• Pressure washing, washdown, and cleaning systems that require organized 1" hose storage on a medium-pressure reel.
• Agricultural spraying, hydro seeding, pest control, and grounds maintenance setups using compatible hose and fittings.
• Industrial maintenance and MRO departments managing air, water, oil, or lubrication hose in plant service areas.
• Construction yards, utility crews, and equipment service teams that need a reel-only platform for custom hose selection.

FAQs:

• Q: What does "less hose" mean on the Coxreels 1125-6-75-E?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1" I.D. hose separately and verify that the hose is rated for the required pressure, media, and temperature.
• Q: What power source does the 1125-6-75-E use?
  A: This model uses a 12V DC electric motor rated at 1/3 HP. It is commonly selected for mobile equipment or vehicle-mounted systems where 12-volt power is available.
• Q: Can this reel be used for compressed air or water service?
  A: Yes, when the installed hose, fittings, and system components are compatible with the service. The reel is rated up to 3000 PSI, but the complete assembly should always be operated within the rating of its lowest-rated component.
• Q: What hose size does this reel hold?
  A: This model is listed for 75 ft of 1" I.D. hose with a 1-7/16" O.D. Hose with a different outside diameter may reduce or change the amount of hose the reel can properly store.
• Q: Is this the right choice for a stationary shop installation?
  A: It can be used in a stationary installation if 12V DC power is available and the mounting surface supports the reel, hose weight, and pulling forces. For facilities with AC power only, confirm whether another Coxreels electric motor option is more appropriate before ordering.
