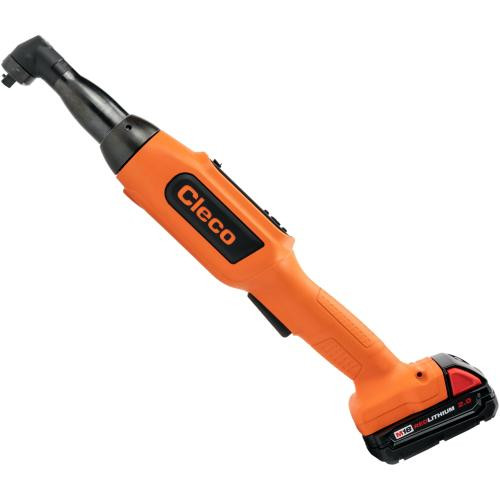

Cleco CCBAW503 CellCore Cordless Electric Nutrunner | 165 RPM | 11.1 - 36.8 (ft-lbs) Torque Range | 3/8" Square Drive

Built for torque-controlled assembly work where a pneumatic hose or controller cabinet can slow the line down, the Cleco CCBAW503 CellCore Cordless Electric Nutrunner delivers a 11.1 - 36.8 ft-lbs torque range with a 3/8" square drive for controlled fastening on mid-torque bolted joints. Its 165 RPM free speed supports deliberate, repeatable rundowns where accuracy and traceability matter more than high-speed removal. The right-angle head helps reach fasteners in fixtures, machine frames, and assembly areas where straight tools may not fit, while the pin detent drive helps retain compatible sockets during production use.

Part of Cleco’s CellCore cordless assembly platform, the CCBAW503 is built for quality-critical fastening with on-tool programming, internal rundown data storage, and compatibility with Cleco controller-based setups when advanced data capture is required. CellCore tools are suited for production teams that need cordless mobility without giving up process control, batch counting, or fastening feedback.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.

Type: Cordless Electric Right Angle Nutrunner | Series: CellCore | Model: CCBAW503 | Drive Size: 3/8" Square Drive | Drive Type: Pin Detent | Torque Range: 11.1 - 36.8 ft-lbs / 15 - 50 Nm | Free Speed: 165 RPM | Weight Without Battery: 4.41 lb / 2.00 kg | Length: 19.65" / 499 mm | Side to Center: 1.25" / 31.8 mm | Height: 3.63" / 92 mm

Features:

• CellCore cordless electric platform supports torque-controlled assembly work without an air hose, improving tool mobility around fixtures and workstations.
• Right-angle head reaches side-mounted, recessed, and obstructed fasteners where inline nutrunners may not provide proper access.
• Large user interface allows programming directly on the tool without requiring a controller for basic setup.
• Up to 10 FastApps programmable rundown strategies can be stored on the tool for changing between common fastening sequences.
• Multi-color LED worklight provides secondary OK / NOK visual feedback for fastening results at the tool.
• Internal data memory stores up to 15,000 screwing values and 500 curves in stand-alone mode for process documentation.
• “Stay Alive” feature helps prevent rebooting during battery replacement, reducing downtime during shift work.
• Assembly-line tough construction is drop tested up to 5 feet and rated for 500,000 cycles between maintenance.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive and transportation assembly — controlled fastening on brackets, housings, interior assemblies, and mid-torque bolted joints.
• Heavy machinery and equipment manufacturing — tightening repeat fasteners on frames, guards, access panels, and subassemblies.
• Aerospace and precision assembly cells — traceable fastening where operators need cordless movement around fixtures and work stands.
• Appliance and general manufacturing — production fastening where torque range, batch control, and tool feedback support quality checks.
• Maintenance and rework stations — controlled removal and reassembly of components when a right-angle drive improves fastener access.

FAQs:

• Q: What type of fastening work is the CCBAW503 used for?
  A: The CCBAW503 is used for controlled tightening of nuts and bolts in production assembly. Its 15 - 50 Nm torque range fits mid-torque applications where repeatability, feedback, and access matter.
• Q: What does the 3/8" square drive with pin detent mean?
  A: The 3/8" square drive accepts compatible 3/8" drive sockets. The pin detent helps retain the socket on the drive, which is useful in repetitive assembly environments where socket retention is important.
• Q: Can this nutrunner be programmed without a controller?
  A: Yes. The large on-tool interface allows programming directly on the tool, including up to 10 FastApps rundown strategies. For more advanced data handling, CellCore tools can also be paired with the appropriate Cleco mPro200GC controller.
• Q: Are the battery and charger included with this SKU?
  A: The provided product data lists tool values without the battery, but does not confirm kit contents. Please verify whether this SKU is sold as a bare tool or with battery and charger before publishing or ordering.
• Q: Is this the right tool for general automotive repair?
  A: This is a precision cordless assembly nutrunner, not an impact wrench. It is best used where controlled torque and repeatable fastening are required, rather than for breaking loose rusted or seized fasteners.
