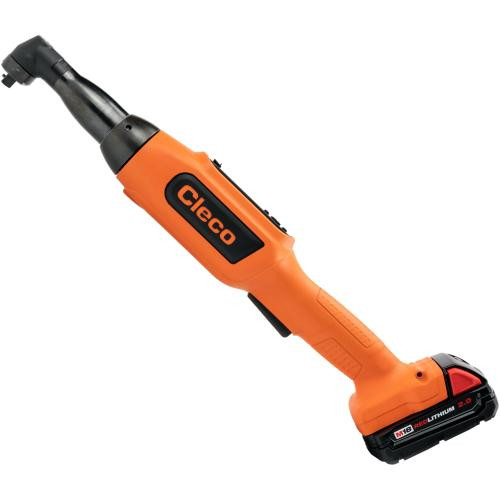

When a cordless assembly station needs more tightening capacity without moving into a larger tool body, the Cleco CCBAW253 CellCore cordless electric right angle nutrunner delivers a 5.5 - 18.4 ft-lbs torque range for controlled fastening on moderate-size production joints. Its 305 RPM free speed supports efficient fastener run-down before final torque, while the 3/8" square drive works with compatible square-drive sockets for nut and bolt assembly. The right angle head helps operators reach fasteners tucked near housings, brackets, frames, and fixtures where straight tools may not provide enough access.
The CCBAW253 is part of Cleco’s CellCore cordless assembly platform, built for quality-critical fastening where repeatability, operator feedback, and process control matter. CellCore tools use an on-tool digital transducer and servo system to measure and control torque electronically, helping reduce missed fasteners, rework, and inconsistent joint results in production environments.
Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.
Type: Cordless Electric Right Angle Nutrunner | Series: CellCore | Model: CCBAW253 | Torque Range: 7.5 - 25 Nm / 5.5 - 18.4 ft-lbs | Speed: 305 RPM | Drive Size: 3/8" Square Drive | Retainer Style: Pin Detent | Weight Without Battery: 1.70 kg / 3.75 lb | Length: 456 mm / 17.95 in | Height: 88 mm / 3.46 in | Side to Center: 31.8 mm / 1.25 in
Features:
- CellCore cordless assembly platform removes the air hose from the workstation while supporting controlled production fastening.
- Right angle configuration improves fastener access around obstructions, fixtures, brackets, and compact assemblies.
- On-tool Digital Transducer and Servo provide critical fastening information to help eliminate assembly errors.
- Large on-tool interface allows programming directly at the tool for supported rundown strategies.
- Color Worklight gives secondary okay / not okay visual feedback so operators can quickly confirm fastening status.
- “Stay Alive” function prevents reboot during battery change, helping maintain production flow between battery swaps.
- Forward and backward compatibility with Cleco’s Global Controller platform supports integration into existing Cleco fastening systems.
- Wireless connectivity includes Wi-Fi 2.4 GHz, Wi-Fi 5.0 GHz, and Bluetooth 4.0 for compatible plant communication setups.
Made in USA:
Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:
Batteries:
Chargers:
Applications:
- Automotive assembly — fastening brackets, housings, seat structures, interior components, and subassemblies that require repeatable torque control.
- Appliance and equipment production — tightening moderate-torque bolted joints where cordless movement and controller compatibility are useful.
- Agricultural and compact machinery assembly — installing guards, panels, covers, and frame-mounted hardware in restricted-access areas.
- Industrial manufacturing cells — controlled nut and bolt fastening where OK / not OK feedback helps reduce operator error.
- Fixture-based production work — reaching side-mounted or recessed fasteners with a 31.8 mm side-to-center right angle head.
FAQs:
- Q: What is the Cleco CCBAW253 used for?
A: The CCBAW253 is used for controlled assembly fastening on nuts and bolts within the 5.5 - 18.4 ft-lbs torque range. It is a precision cordless nutrunner, not an impact wrench or breakaway tool. - Q: What does the 3/8" square drive fit?
A: The 3/8" square drive accepts compatible 3/8" square-drive sockets. Since this model uses a pin detent retainer, socket selection should match both the drive size and the retention style required by the application. - Q: Why choose the CCBAW253 instead of the lower-torque CCBAW153?
A: The CCBAW253 covers a higher torque range, 7.5 - 25 Nm compared with 4.5 - 15 Nm on the CCBAW153. It is the better fit when the joint requires more tightening force and the application still benefits from the same compact 456 mm tool length. - Q: Does this CellCore nutrunner work without a controller?
A: CellCore tools support on-tool programming for certain rundown strategies, and they can also be paired with compatible Cleco controllers for advanced fastening control, reporting, and traceability. Confirm the required controller setup for your plant process before ordering. - Q: Are batteries and chargers included with this SKU?
A: The provided manufacturer data lists tool weight without the battery but does not confirm battery or charger inclusion for SKU CCBAW253. Verify kit contents before ordering if a complete cordless setup is required.
| SKU | Torque Range (Nm) Min-Max | Torque Range (ft-lb) Min-Max | Speed r/min | Weight* kg (lb) | Length mm (in) | Side to Center mm (in) | Height mm (in) | Output |
|---|---|---|---|---|---|---|---|---|
| CCBAW153 | 4.5 - 15 | 3.3 - 11.0 | 570 | 1.70 (3.75) | 456 (17.95) | 31.8 (1.25) | 88 (3.46) | 3/8” Square Drive - Pin Detent |
| CCBAW153B | 4.5 - 15 | 3.3 - 11.0 | 570 | 1.70 (3.75) | 456 (17.95) | 31.8 (1.25) | 88 (3.46) | 3/8” Square Drive - Ball Retainer |
| CCBAW253 | 7.5 - 25 | 5.5 - 18.4 | 305 | 1.70 (3.75) | 456 (17.95) | 31.8 (1.25) | 88 (3.46) | 3/8” Square Drive - Pin Detent |
| CCBAW253B | 7.5 - 25 | 5.5 - 18.4 | 305 | 1.70 (3.75) | 456 (17.95) | 31.8 (1.25) | 88 (3.46) | 3/8” Square Drive - Ball Retainer |
| CCBAW353 | 10.5 - 35 | 7.7 - 25.8 | 255 | 1.95 (4.30) | 486 (19.15) | 31.8 (1.25) | 92 (3.63) | 3/8” Square Drive - Pin Detent |
| CCBAW353B | 10.5 - 35 | 7.7 - 25.8 | 255 | 1.95 (4.30) | 486 (19.15) | 31.8 (1.25) | 92 (3.63) | 3/8” Square Drive - Ball Retainer |
| CCBAW503 | 15 - 50 | 11.1 - 36.8 | 165 | 2.00 (4.41) | 499 (19.65) | 31.8 (1.25) | 92 (3.63) | 3/8” Square Drive - Pin Detent |
| CCBAW503B | 15 - 50 | 11.1 - 36.8 | 165 | 2.00 (4.41) | 499 (19.65) | 31.8 (1.25) | 92 (3.63) | 3/8” Square Drive - Ball Retainer |
Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog.
Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
