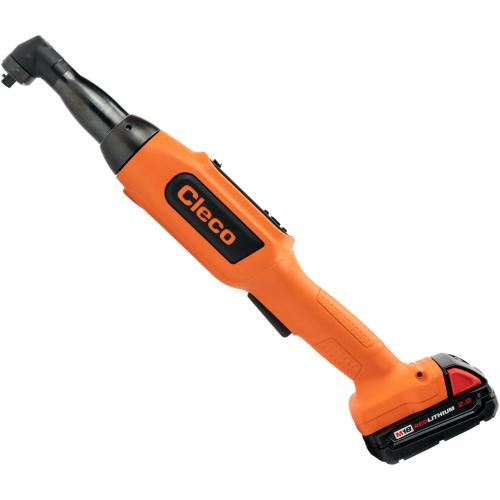

Cleco CCBAW353B CellCore Cordless Electric Nutrunner | 255 RPM | 7.7 - 25.8 (ft-lbs) Torque Range | 3/8" Square Drive

Built for controlled assembly in production cells, repair stations, and fastening operations where cordless mobility helps keep the line moving, the Cleco CCBAW353B CellCore Cordless Electric Nutrunner delivers a 7.7 - 25.8 ft-lbs torque range with a 255 RPM rundown speed for accurate mid-torque fastening. Its 3/8" square drive with ball retainer helps hold sockets securely during repeated use, while the right-angle configuration gives assemblers access to fasteners that are difficult to reach with pistol-style tools.

The CCBAW353B is part of Cleco’s CellCore cordless assembly platform, built for programmable torque control without tying the operator to an air line or cord. The tool supports on-tool programming through a large user interface and offers up to 10 directly programmable applications, allowing teams to manage multiple fastening jobs from the tool itself or connect to a controller for expanded functionality with FastApps. With Cmk > 2.0 +/- 10% accuracy, this nutrunner is suited for assembly environments where torque repeatability, process control, and operator mobility all matter.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.

Type: Cordless Electric Right Angle Nutrunner | Series: CellCore | Model: CCBAW353B | Torque Range: 10.5 - 35 Nm / 7.7 - 25.8 ft-lbs | Free Speed: 255 RPM | Drive Size: 3/8" Square Drive | Drive Retention: Ball Retainer | Weight: 1.95 kg / 4.30 lbs without battery | Length: 486 mm / 19.15" | Side to Center: 31.8 mm / 1.25" | Height: 92 mm / 3.63"

Features:

• CellCore cordless assembly platform gives operators programmable torque control without an air hose or power cord limiting movement around the work area.
• Right-angle head reaches into restricted fastening locations where inline or pistol-style tools may not provide proper access.
• Ball retainer square drive helps retain sockets during repeated rundowns, tool repositioning, and assembly-line handling.

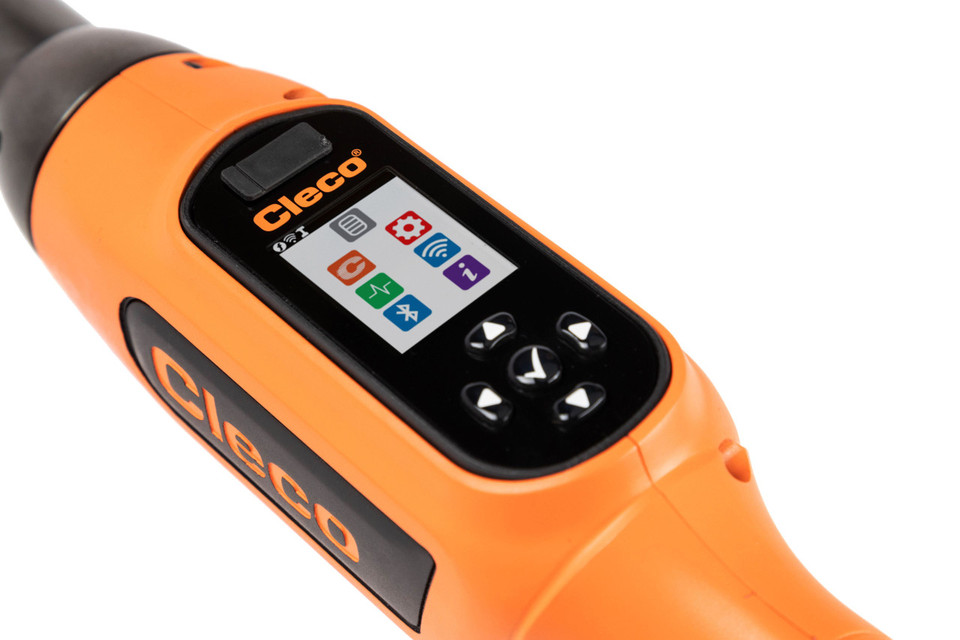

• Large user interface allows on-the-tool programming without requiring a controller for basic setup.
• High torque version provides the ability to program up to 10 applications directly on the tool or connect to a controller for maximum functionality with FastApps.
• Drop tested up to 5 feet for assembly-line durability in busy production environments.
• Accuracy rating of Cmk > 2.0 +/- 10% supports repeatable fastening where controlled torque output is required.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive assembly: Tightening brackets, modules, covers, and subassembly fasteners where controlled torque and cordless movement improve station flexibility.
• Industrial production: Repeated fastening on fixtures, frames, housings, and equipment assemblies that require programmed torque strategies.
• Appliance and equipment manufacturing: Installing fasteners in cabinet, chassis, and component assemblies where right-angle access helps reach recessed locations.
• Maintenance and rework stations: Controlled removal and installation of fasteners during inspection, service, and repair processes.
• Tooling and process engineering: Supporting fastening applications where multiple programmable jobs are needed from one cordless nutrunner.

FAQs:

• Q: What does the 7.7 - 25.8 ft-lbs torque range mean?
  A: This is the adjustable fastening range of the tool. Use it for applications that fall within that torque window, and verify the final setting against your assembly process requirements.
• Q: What is the benefit of the right-angle design?
  A: A right-angle nutrunner places the output drive at 90 degrees to the tool body, helping operators reach fasteners inside frames, housings, and other areas where a straight tool may not fit.
• Q: What does ball retainer mean on the square drive?
  A: A ball retainer uses a spring-loaded ball to help hold the socket on the drive. It allows quicker socket changes than a pin detent while still helping prevent the socket from slipping off during normal use.
• Q: Does this tool require a controller?
  A: Basic programming can be performed on the tool through the large user interface. For expanded functionality, the high torque version can connect to a controller for FastApps support.
• Q: Are the battery and charger included?
  A: The catalog weight is listed without the battery, and the source material does not confirm whether this SKU includes a battery or charger. Please confirm kit contents before publishing or ordering.

Looking for more information about Cleco Electric Nutrunner? Click here to view the Catalog.

Need help selecting the correct Cleco Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
