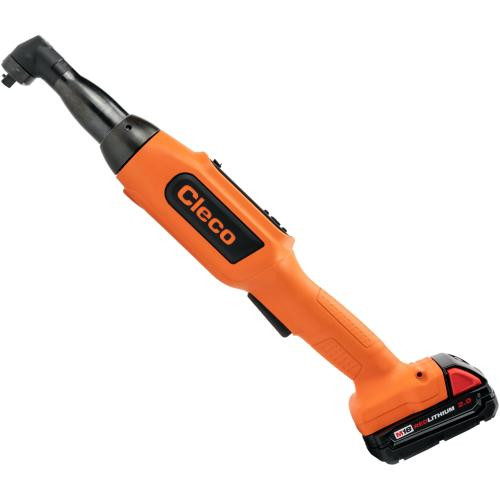

Cleco CCBAW153 CellCore Cordless Electric Nutrunner | 570 RPM | 3.3 - 11 (ft-lbs) Torque Range | 3/8" Square Drive

Built for quality-critical fastening in production assembly, the Cleco CCBAW153 CellCore cordless electric right angle nutrunner delivers controlled tightening across a 3.3 - 11.0 ft-lbs torque range, giving assembly teams a compact option for smaller threaded fasteners where repeatability matters. Its 570 RPM speed supports efficient run-down before final torque, while the 3/8" square drive accepts compatible square-drive sockets for nut and bolt fastening. The right angle head helps reach around brackets, housings, and fixture obstructions where straight tools may not fit.

As part of the Cleco CellCore cordless assembly platform, the CCBAW153 combines on-tool programming, wireless connectivity, and controller compatibility for plants that need traceability, batch control, and repeatable fastening results. The on-tool digital transducer and servo system measures and controls torque electronically, helping reduce missed fasteners, over-torque damage, and assembly variation on quality-critical joints.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.

Type: Cordless Electric Right Angle Nutrunner | Series: CellCore | Model: CCBAW153 | Torque Range: 4.5 - 15 Nm / 3.3 - 11.0 ft-lbs | Speed: 570 RPM | Drive Size: 3/8" Square Drive | Weight Without Battery: 1.70 kg / 3.75 lb | Length: 456 mm / 17.95 in | Height: 88 mm / 3.46 in | Side to Center: 31.8 mm / 1.25 in

Features:

• CellCore cordless platform supports controlled assembly fastening without an air line, helping reduce workstation clutter and improve tool mobility.
• Forward and backward compatibility with Cleco’s entire Global Controller platform helps plants integrate the tool into existing Cleco fastening systems.
• Color Worklight on the tool provides secondary okay / not okay visual feedback, giving operators a quick confirmation during assembly.
• “Stay Alive” function prevents reboot during battery change, helping maintain workflow when batteries are swapped during production.
• On-tool Digital Transducer and Servo provide critical fastening information and help eliminate assembly errors.
• Connects over Wi-Fi 2.4 GHz, Wi-Fi 5.0 GHz, and Bluetooth 4.0 for wireless communication with compatible systems.
• Accuracy rating of Cm/Cmk 2.0 at 10% for quality-critical joints supports repeatable tightening in controlled production environments.
• Compatible with mPro200GC, mPro200GC-AP, and mPro400 Family controllers.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive and transportation assembly — tightening smaller nuts and bolts on brackets, subassemblies, interior components, and fixture-mounted parts.
• Appliance and equipment manufacturing — controlled fastening where repeatability, operator feedback, and compact access are important.
• Electronics and light industrial assembly — fastening low-to-moderate torque joints using 3/8" square-drive sockets.
• Agriculture, lawn equipment, and compact machinery production — assembly of housings, guards, panels, and bolted components with limited tool clearance.
• Quality-critical production lines — applications that benefit from OK / not OK feedback, wireless communication, and controller-based traceability.

FAQs:

• Q: What fasteners is the Cleco CCBAW153 best suited for?
  A: The CCBAW153 is suited for controlled tightening of smaller nuts and bolts that fall within the 3.3 - 11.0 ft-lbs torque range. It is not a high-torque removal tool; it is a precision assembly nutrunner for repeatable fastening.
• Q: What does “right angle nutrunner” mean?
  A: A right angle nutrunner has a 90-degree head that lets the socket approach the fastener from the side. This helps operators reach fasteners near brackets, frames, fixtures, and other obstructions.
• Q: Does this CellCore tool require a controller?
  A: The manufacturer lists compatibility with mPro200GC, mPro200GC-AP, and mPro400 Family controllers. Controller use may be required for advanced programming, reporting, traceability, and plant integration depending on the fastening process.
• Q: Are the battery and charger included?
  A: The manufacturer specifications state that weight values do not include the battery and show a 2Ah battery in the illustration. The provided source does not confirm whether a battery or charger is included with this SKU, so kit contents should be verified before ordering.
• Q: What is the difference between torque range and speed on this tool?
  A: Torque range tells you the tightening force the tool can be set to deliver, while speed tells you how quickly it runs down the fastener before final tightening. For the CCBAW153, the 570 RPM speed supports productive assembly work within the 4.5 - 15 Nm torque range.
