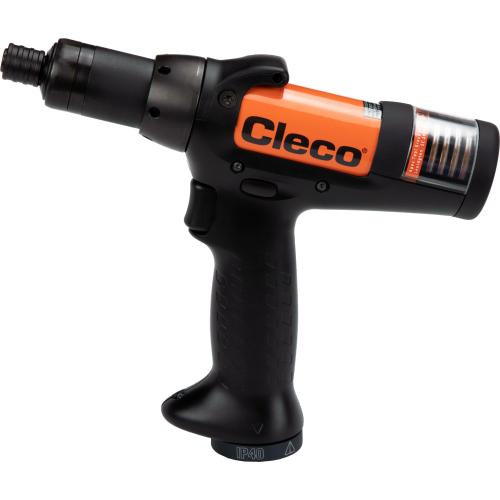

Built for precision assembly stations where repeatable torque control matters, the Cleco 30EPN19FB3 NeoTek Corded Electric Nutrunner combines a 2.8 - 14.0 ft-lbs torque range with 1,000 RPM free speed for controlled rundown on medium-torque fastening jobs. Its 3/8" square drive fits compatible square-drive sockets, while the pistol configuration gives operators a familiar trigger-style grip for production fastening, appliance assembly, electronics enclosures, and general manufacturing work.
As part of Cleco’s NeoTek smart fastening system, the 30EPN19FB3 supports digital communication, configurable LED light rings, audible alerts, handle vibration feedback, and on-board data logging for connected assembly environments. The tool is rated for 3.9 - 19 Nm and provides repeatability and accuracy with 2.0 Cm/Cmk at +/- 7%, where Cm/Cmk refers to process capability measurements used to evaluate fastening consistency in controlled production.
Type: Corded Electric Nutrunner | Series: NeoTek 30 Series | Configuration: Pistol | Model: 30EPN19FB3 | Torque Range: 3.9 - 19 Nm / 2.8 - 14.0 ft-lbs | Free Speed: 1,000 RPM | Output Drive: 3/8" Square Drive | Weight: 1.00 kg / 2.20 lb | Length: 214 mm / 8.42 in | Side to Center: 16.3 mm / 0.64 in
Features:
- 1 million cycles maintenance-free based on the recommended tool model torque range and clockwise rotation.
- Repeatability and accuracy with 2.0 Cm/Cmk at +/- 7% for controlled fastening processes.
- 21% lighter tool and cable system than the existing tool family to help reduce handling effort during repetitive assembly work.
- Digital communication supports reliable fastening performance in connected production environments.
- Internal temperature monitoring helps protect the tool during production use.
- Configurable LED light rings provide visual feedback for operators during fastening cycles.
- Data logging with on-board tool memory supports traceability and process review.
- Preventive maintenance alerts help production teams plan service before unexpected downtime occurs.
Made in USA:
Applications:
- Production assembly — controlled tightening of bolts and fasteners where repeatability, tool feedback, and traceability are important.
- Automotive component assembly — fastening brackets, housings, subassemblies, and medium-torque joints within the tool’s 2.8 - 14.0 ft-lbs range.
- Appliance and equipment manufacturing — repetitive socket-driven fastening on panels, frames, and mechanical assemblies.
- Electronics and enclosure assembly — torque-controlled fastening where over-tightening can damage housings, inserts, or components.
- Industrial workcells — connected assembly stations using smart fastening tools for process control, operator feedback, and data capture.
FAQs:
- Q: What type of fasteners is the Cleco 30EPN19FB3 used for?
A: This tool is used for controlled socket-driven fastening within a 2.8 - 14.0 ft-lbs torque range. It is suited for production assembly jobs where consistent torque, operator feedback, and fastening data are more important than maximum breakaway power. - Q: What does the 3/8" square drive mean?
A: The 3/8" square drive is the output anvil size that accepts compatible 3/8" drive sockets. Socket size and style should be selected to match the fastener and the assembly process. - Q: Is this an air tool?
A: No. The 30EPN19FB3 is a corded electric nutrunner, not a pneumatic nutrunner. It does not require compressed air or an FRL unit. - Q: What makes the NeoTek system useful for assembly work?
A: NeoTek tools include smart fastening features such as digital communication, configurable LED light rings, audible alerts, handle vibration feedback, on-board memory, and preventive maintenance alerts. These features help operators and production teams monitor fastening quality and tool status. - Q: Is this tool appropriate for general garage or DIY use?
A: This model is primarily a precision assembly nutrunner for controlled production environments. For general repair or DIY work, a standard cordless or pneumatic impact wrench is usually a better fit unless the job specifically requires Cleco NeoTek fastening control.
| SKU | Torque Range | Weight | Length | Side to Center | ||||
|---|---|---|---|---|---|---|---|---|
| Min Nm | Max Nm | Min Ft Lb | Max Ft Lb | Lb | kg | in | in | |
| 30EPN05BD2 | 0.9 | 4.7 | 0.66 | 3.47 | 2.05 | 0.93 | 7.76 | 0.64 |
| 30EPN05BDQ | 0.9 | 4.7 | 0.66 | 3.47 | 2.01 | 0.91 | 8.27 | 0.64 |
| 30EPN12EAQ | 3.9 | 11.6 | 2.88 | 8.56 | 2.20 | 1.00 | 9.02 | 0.64 |
| 30EPN12FA3 | 3.9 | 11.6 | 2.88 | 8.56 | 2.16 | 0.98 | 8.43 | 0.64 |
| 30EPN19FB3 | 3.9 | 19.0 | 2.88 | 14.01 | 2.20 | 1.00 | 8.43 | 0.64 |
| 30EPN26FB3 | 5.1 | 26.0 | 3.76 | 19.18 | 2.20 | 1.00 | 8.43 | 0.64 |
| 50EPN28FD3 | 5.6 | 28.0 | 4.13 | 20.65 | 3.48 | 1.58 | 10.08 | 0.64 |
| 50EPN43GD3 | 9.0 | 43.0 | 6.64 | 31.72 | 3.64 | 1.65 | 10.24 | 0.74 |
| 50EPN65HD4 | 14.0 | 66.0 | 10.33 | 48.68 | 4.72 | 2.14 | 11.34 | 0.87 |
| 50EPN85JD4 | 17.0 | 84.0 | 12.54 | 61.96 | 4.89 | 2.22 | 11.89 | 0.87 |
| 50EPN125KD4 | 25.0 | 123.0 | 18.44 | 90.72 | 5.78 | 2.62 | 12.32 | 1.10 |
Looking for more information about Cleco Corded Electric Nutrunner? Click here to view the Catalog
Need help selecting the correct Cleco Corded Electric Nutrunners for your application? Please call (800) 608-5210 or email info@intlairtool.com
