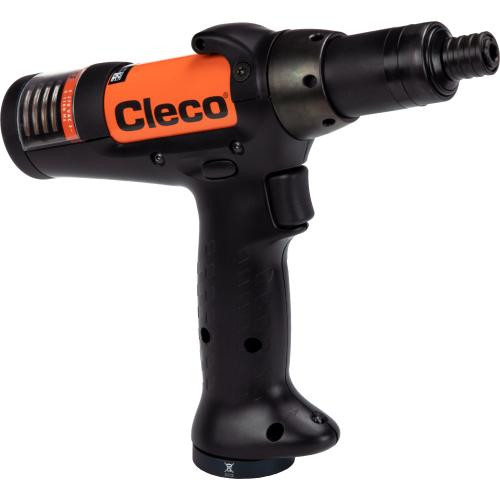

Cleco 30EPN05BDQ NeoTek Corded Electric Nutrunner | 4275 RPM | 0.6 - 3.4 (ft-lbs) Torque Range | 1/4" Quick Change

Built for controlled low-torque fastening in production assembly cells, the Cleco 30EPN05BDQ NeoTek corded electric nutrunner gives operators a pistol-grip tool for repeatable tightening on smaller fasteners, electronic assemblies, light brackets, appliance components, and precision subassemblies. Its 0.6 - 3.4 ft-lbs torque range, also listed as 0.9 - 4.7 Nm, supports fastening jobs where accuracy and process control matter more than impact-style breakaway force. The 4,275 RPM maximum speed helps shorten rundown time before final torque, while the 1/4" quick-change output accepts compatible quick-change bits for faster bit swaps at the workstation.

As part of Cleco’s NeoTek corded assembly tool platform, the 30EPN05BDQ uses digital tool communication with a controller-based fastening system so rundowns can be programmed, documented, and analyzed. The pistol configuration gives operators a familiar trigger-style grip for bench assembly, vertical fastening, and station-based production work where a straight inline tool may not be the preferred handling style.

Type: Corded Electric Nutrunner | Series: NeoTek 30 Series | Configuration: Pistol Grip | Output Drive: 1/4" Quick Change | Torque Range: 0.6 - 3.4 ft-lbs / 0.9 - 4.7 Nm | Max Speed: 4,275 RPM | Weight: 2.01 lbs / 0.91 kg | Length: 8.27" / 210 mm | Side to Center: 0.64" / 16 mm

Features:

• Digital tool platform supports controller-based fastening programs, rundown documentation, and process analysis.
• 1/4" quick change output helps reduce bit-change time when operators move between compatible fastening tasks.
• Wear-free, configurable multifunction buttons allow the tool interface to be adapted to the application setup.
• Wear-free, configurable two-stage start switch supports controlled start behavior during repetitive fastening.
• Pre-calibrated digital torque sensor allows easier replacement during service without dismantling the motor or handle.
• Minimized cable diameter through combined data and supply lines helps reduce cable bulk at the workstation.
• Uniform cables and connectors across NeoTek corded assembly tools simplify cable standardization within compatible tool setups.
• Reactive torque measurement supports controlled fastening where final torque verification is part of the assembly process.

Made in USA:

Applications:

• Electronics and light assembly: tightening small fasteners in housings, brackets, panels, and subassemblies where low torque control is required.
• Appliance manufacturing: repetitive fastening on covers, frames, trim pieces, and internal components using compatible 1/4" quick-change bits.
• Automotive interior and component assembly: controlled rundown on smaller fasteners used in modules, trim, electrical assemblies, and light-duty fixtures.
• Industrial production benches: station-based fastening where programmable rundown control and documented tightening results help support quality processes.
• Fixture and workcell integration: pistol-grip fastening in layouts where operators need a compact handle style instead of an inline or right-angle tool.

FAQs:

• Q: What type of fastening is the Cleco 30EPN05BDQ best suited for?
  A: This nutrunner is suited to low-torque production fastening from 0.6 - 3.4 ft-lbs. It is not an impact wrench; it is intended for controlled assembly work where repeatable tightening and process documentation are more important than loosening stuck fasteners.
• Q: What does 1/4" quick change mean on this model?
  A: The 1/4" quick change output is made for compatible quick-change bits and adapters. It helps operators swap bits more quickly than a fixed square-drive setup when multiple fastener types are used at the station.
• Q: Does this NeoTek nutrunner require a controller?
  A: Yes. NeoTek corded assembly tools are part of a controller-based fastening system used to program, operate, document, and analyze rundowns. Confirm the controller and cable configuration for your workcell before ordering.
• Q: Is the pistol version different from the inline 30ESN05BDQ?
  A: Yes. The 30EPN05BDQ is the pistol-grip version, while the 30ESN05BDQ is the inline version. Both share the same listed torque range and speed, but the body style changes how the tool handles at the workstation.
• Q: Can this tool be used for DIY or general garage fastening?
  A: This is a precision assembly tool for controlled production environments. For general garage repair, a standard cordless drill, impact driver, or air tool is usually more practical unless you are building a controlled fastening station.
