Cleco 19TCA05Q T-Handle Pneumatic Screwdriver | 19 Series | Push and Trigger Start | 660 RPM | 0.8 - 3.7 (ft-lbs) Torque Range

When a fastening station needs a slower rundown speed with controlled torque shut-off, the Cleco 19TCA05Q T-handle pneumatic screwdriver delivers 660 RPM free speed and a 0.8 to 3.7 ft-lbs torque range for repeatable screw installation in assembly, rework, and light manufacturing environments. Its push and trigger start operation requires both bit pressure and trigger actuation before the tool runs, giving operators deliberate start control on pre-threaded fasteners.

The 19TCA05Q uses a Clecomatic clutch (an adjustable shut-off clutch that stops the tool when the preset torque is reached) to support consistent fastening from part to part. A 1/4" air inlet, 3/8" minimum hose I.D., and 11 SCFM air consumption make this Cleco 19 Series screwdriver a practical fit for regulated pneumatic assembly lines where torque repeatability, tool balance, and operator access are important.

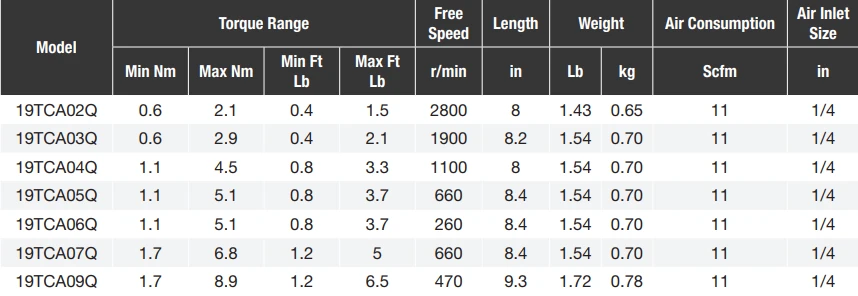

Type: T-Handle Pneumatic Screwdriver | Series: 19 Series | Model: 19TCA05Q | Handle Type: T-Handle | Start Type: Push and Trigger Start | Clutch: Clecomatic Clutch | Torque Range: 0.8 - 3.7 ft-lbs | Torque Range: 1.1 - 5.1 Nm | Free Speed: 660 RPM | Length: 8.4" | Air Inlet: 1/4" | Min. Hose I.D.: 3/8" | Air Consumption: 11 SCFM

Features:

• Durable Clecomatic clutch delivers strong torque repeatability and a long calibration cycle for controlled assembly work.
• Push and trigger start helps prevent unintended rundown by requiring both bit engagement and trigger input.
• T-handle layout is useful on pre-threaded applications where the operator primarily guides the tool as the fastener tightens.
• 660 RPM free speed provides a slower, more controlled rundown than higher-speed 19 Series models in the same torque class.
• Reverse lever can be rotated to accommodate left-handed or right-handed operators.
• Two grip sizes are available for added versatility across operators and assembly stations.
• External torque adjustment supports line-side setup and fastening process changes without disassembling the tool.

Made in USA:

Applications:

• Fast-paced assembly: Used for controlled screw installation where repeatable torque shut-off helps reduce stripped threads and inconsistent clamp load.
• Aerospace assembly: Supports fastening operations on pre-threaded components where tool guidance and torque repeatability are important.
• Automotive and transportation manufacturing: Suitable for interior, bracket, panel, and subassembly fastening where a T-handle tool gives the operator straight-on control.
• Appliance and equipment production: Helps tighten screws in housings, covers, frames, and light mechanical assemblies with consistent torque output.
• Maintenance and rework benches: Provides a controlled pneumatic option for repeated assembly and disassembly tasks using compatible fasteners and bits.

FAQs:

• Q: What is the torque range of the Cleco 19TCA05Q?
  A: The 19TCA05Q has a torque range of 0.8 to 3.7 ft-lbs, which is also listed as 1.1 to 5.1 Nm. This range fits controlled fastening of smaller threaded fasteners in assembly environments.
• Q: How is this model different from the 19TCA04Q?
  A: The 19TCA05Q runs at 660 RPM and reaches up to 3.7 ft-lbs, while the 19TCA04Q is faster at 1,100 RPM with a 0.8 to 3.3 ft-lbs range. Choose the 19TCA05Q when slower rundown and slightly higher top-end torque are preferred.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch shuts the tool off when the preset torque is reached. This helps improve repeatability compared with relying on the operator to stop the tool by feel.
• Q: What does push and trigger start mean on this screwdriver?
  A: Push and trigger start means the bit must be pressed into the fastener while the trigger is pulled before the tool starts. This gives the operator more controlled engagement during screw rundown.
• Q: What air line setup is required?
  A: This model lists 11 SCFM air consumption, a 1/4" air inlet, and a 3/8" minimum hose I.D. Use a properly regulated, filtered, and lubricated air supply to maintain tool performance and clutch consistency.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Do you need help selecting the correct Cleco Screwdrivers for your assembly application? Please call (800) 608-5210 or email info@intlairtool.com.
