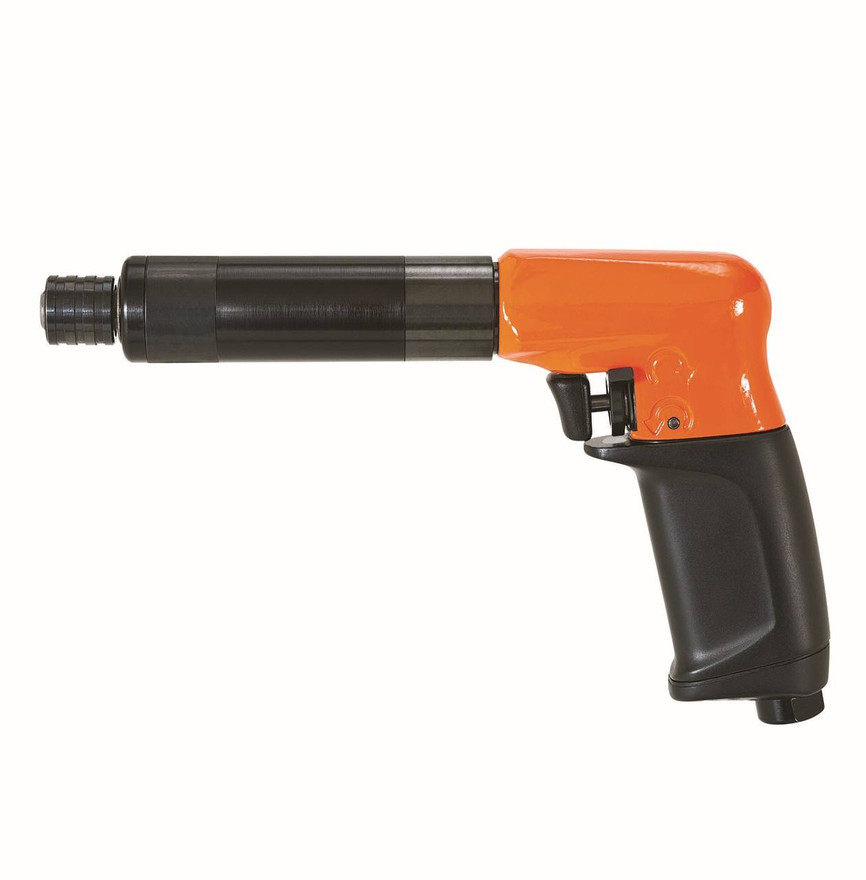

Cleco 19PCA07Q P-Handle Pneumatic Screwdriver | 19 Series | Push and Trigger Start | 660 RPM | 1.2 - 5 (ft-lbs) Torque Range

Built for assembly stations that need controlled torque with faster rundown, the Cleco 19PCA07Q P-handle pneumatic screwdriver pairs push and trigger start operation with a 660 RPM free speed for efficient fastening on repetitive production work. Its 15 - 60 in-lbs / 1.7 - 6.8 Nm tool torque range supports light-to-medium assembly tasks, while the Clecomatic clutch (a torque-control clutch that shuts off at the preset torque) helps improve fastening consistency from one cycle to the next.

The P-handle configuration gives operators a solid grip for applying forward pressure into the fastener, making this tool useful for seated screws, prevailing-torque fasteners, and bench assembly, where inline tools may not provide the preferred hand position. A 1/4" quick change drive accepts common compatible hex bits, while the 8.5" overall length, 1.51 lb weight, 1/4" NPT air inlet, and 11 SCFM air consumption make the 19PCA07Q a practical pneumatic fastening option for production lines, repair benches, and controlled assembly cells.

Type: P-Handle Pneumatic Screwdriver | Series: 19 Series | Start Type: Push and Trigger Start | Clutch Type: Clecomatic Clutch | Drive: 1/4" Quick Change | Tool Torque Range: 15 - 60 in-lbs / 1.7 - 6.8 Nm | Torque Range with Standard Spring: 24 - 60 in-lbs / 2.7 - 6.8 Nm | Free Speed: 660 RPM | Overall Length: 8.5" / 216 mm | Weight: 1.51 lbs / 0.7 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Consumption: 11 SCFM

Features:

• Clecomatic clutch supports repeatable torque control for assembly fastening where consistent shut-off performance matters.
• Push and trigger start operation gives the operator controlled activation at the fastener and helps reduce unintended tool starts.
• 660 RPM free speed provides quicker run-down than lower-speed models while staying suitable for controlled screw assembly.
• P-handle grip allows forward pressure to be applied into the fastener during seated screw and prevailing-torque applications.
• 1/4" quick change drive allows fast bit changes when switching between compatible fasteners or assembly steps.
• Reverse lever can be rotated to support left- or right-handed operation at the workstation.
• Easy access torque verification port supports routine torque checks as part of production quality control.
• Two interchangeable grip sizes are available within the 19 Series platform to better fit different operators.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Automotive component assembly for installing covers, brackets, trim-related fasteners, and light mechanical subassemblies.
• Aerospace and precision assembly stations where controlled pneumatic screwdriving is needed with a pistol-style grip.
• Appliance and equipment manufacturing for repeated fastening of panels, housings, and sheet metal or molded components.
• Electronics and light industrial assembly where compatible 1/4" hex tooling and moderate torque capacity are required.
• Maintenance and repair benches that need faster controlled screw rundown than hand tools can provide.

FAQs:

• Q: What is the torque range of the Cleco 19PCA07Q?
  A: The tool torque range is 15 - 60 in-lbs / 1.7 - 6.8 Nm. With the standard spring, the listed torque range is 24 - 60 in-lbs / 2.7 - 6.8 Nm.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch shuts the screwdriver off when the preset torque is reached. This helps improve repeatability compared with basic stall-style tools, especially in repeated assembly operations.
• Q: What bits work with this screwdriver?
  A: The 19PCA07Q uses a 1/4" quick change drive for compatible 1/4" hex insert bits and fastening accessories. Always match the bit type to the screw recess and application.
• Q: Is this model better for faster assembly than the 260 RPM version?
  A: Yes, the 660 RPM free speed provides faster screw rundown than a 260 RPM model. The best choice depends on the fastener, material, required torque, and how much control the operator needs during seating.
• Q: What air setup is required?
  A: The manufacturer lists a 1/4" NPT air inlet, 3/8" minimum hose I.D., and 11 SCFM air consumption. Use clean, regulated air and verify the operating pressure required by your facility’s assembly process.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need left-handed or right-handed Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
