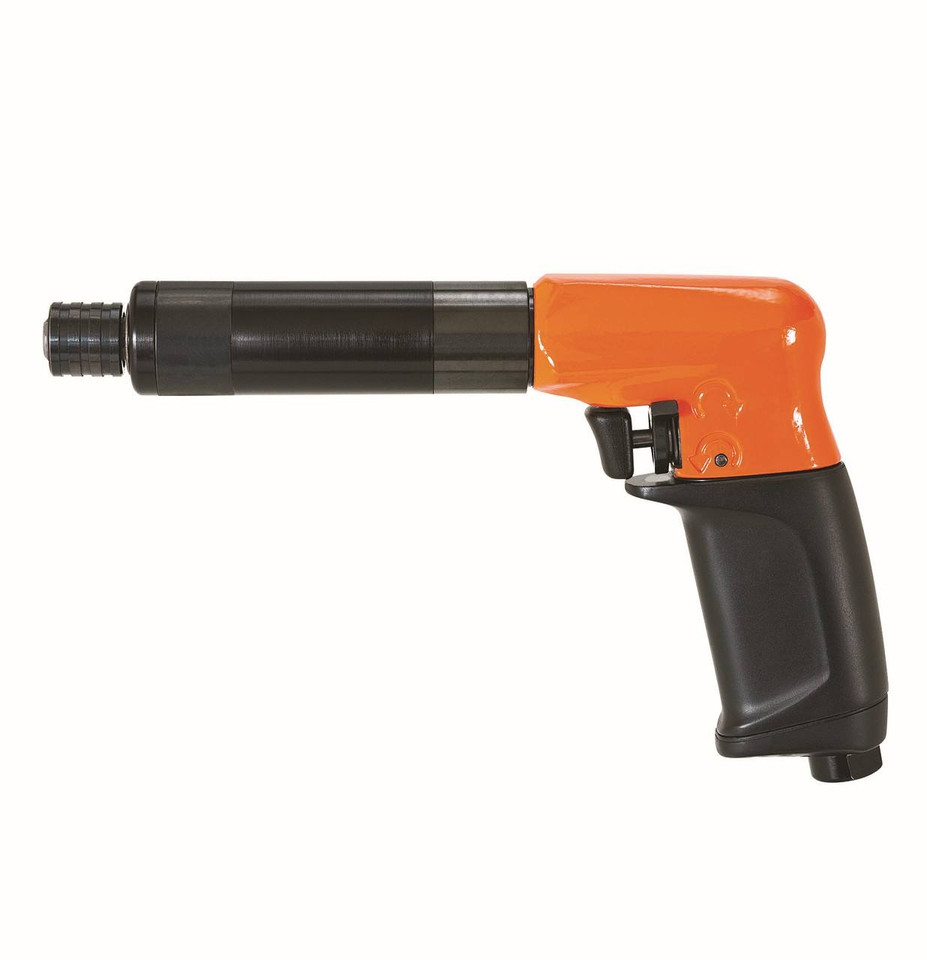

Cleco 19PCA06Q P-Handle Pneumatic Screwdriver | 19 Series | Push and Trigger Start | 260 RPM | 0.8 - 3.7 (ft-lbs) Torque Range

Built for controlled fastening in production assembly, the Cleco 19PCA06Q P-handle pneumatic screwdriver combines push and trigger start operation with a 260 RPM free speed for steady rundown on threaded fasteners that need repeatable torque instead of high-speed driving. Its 0.8 - 3.7 ft-lbs torque range supports light-to-medium assembly work, while the Clecomatic clutch (a torque-control clutch that shuts off at the set torque) helps improve fastening consistency across repeated cycles.

The P-handle configuration gives operators a firm grip shape for applying axial force during prevailing-torque fastener work, and the 1/4" quick change drive accepts common insert bits and compatible fastening accessories. With a compact 8.5" overall length, 1.51 lb weight, 1/4" NPT air inlet, and 11 SCFM air consumption, the 19PCA06Q is suited for assembly stations where controlled torque, hand access, and repeatable start behavior matter more than maximum speed.

Type: P-Handle Pneumatic Screwdriver | Series: 19 Series | Start Type: Push and Trigger Start | Clutch Type: Clecomatic Clutch | Drive: 1/4" Quick Change | Tool Torque Range: 10 - 45 in-lbs / 1.1 - 5.1 Nm | Torque Range with Standard Spring: 10 - 38 in-lbs / 1.1 - 4.3 Nm | Free Speed: 260 RPM | Overall Length: 8.5" / 216 mm | Weight: 1.51 lbs / 0.7 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Consumption: 11 SCFM

Features:

• Durable Clecomatic clutch supports repeatable torque control for assembly fastening where consistency is critical.
• Push and trigger start operation helps prevent accidental run-down while still allowing quick activation at the fastener.
• P-handle shape allows force to be applied in line with the fastener, useful for prevailing-torque screws and seated fasteners.
• 1/4" quick change drive allows fast bit changes during mixed-fastener assembly work.
• Reverse lever can be rotated to accommodate left- or right-handed operators at the workstation.
• Two grip sizes are available within the 19 Series platform for improved fit across different operators.
• Tool performance is rated at 90 PSI / 620 kPa air pressure for standard compressed-air assembly systems.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Automotive and vehicle component assembly where repeatable torque is needed on screws, brackets, covers, and trim-related fasteners.
• Aerospace and precision assembly stations requiring controlled pneumatic rundown with a compact pistol-style tool.
• Appliance and equipment manufacturing for fastening panels, housings, subassemblies, and light mechanical components.
• Electronics and light industrial assembly where 1/4" hex tooling and lower torque ranges are commonly used.
• MRO and repair benches that need a controlled pneumatic screwdriver for recurring fastening work instead of manual screwdriving.

FAQs:

• Q: What does push and trigger start mean on the Cleco 19PCA06Q?
  A: Push and trigger start means the tool is activated through a combination of operator trigger control and bit engagement at the fastener. This helps reduce unintended starts compared with a simple trigger-only setup.
• Q: What bits fit this screwdriver?
  A: The 19PCA06Q uses a 1/4" quick change drive, so it is intended for compatible 1/4" hex insert bits and fastening accessories. Always match the bit style and size to the fastener being driven.
• Q: Is the listed torque range the same as the standard spring range?
  A: No. The tool range is 10 - 45 in-lbs / 1.1 - 5.1 Nm, while the torque range with the standard spring is 10 - 38 in-lbs / 1.1 - 4.3 Nm. Use the spring range when setting up the tool with the supplied standard spring configuration.
• Q: What air supply does this tool require?
  A: Tool performance is rated at 90 PSI / 620 kPa. The manufacturer lists 11 SCFM air consumption, a 1/4" NPT air inlet, and a minimum 3/8" hose I.D.
• Q: When should I choose a P-handle screwdriver instead of an inline screwdriver?
  A: A P-handle screwdriver is helpful when the operator needs a pistol-style grip and wants to apply forward force into the fastener. Inline screwdrivers are often preferred for straight-down vertical fastening or suspended tool setups.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need left-handed or right-handed Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
