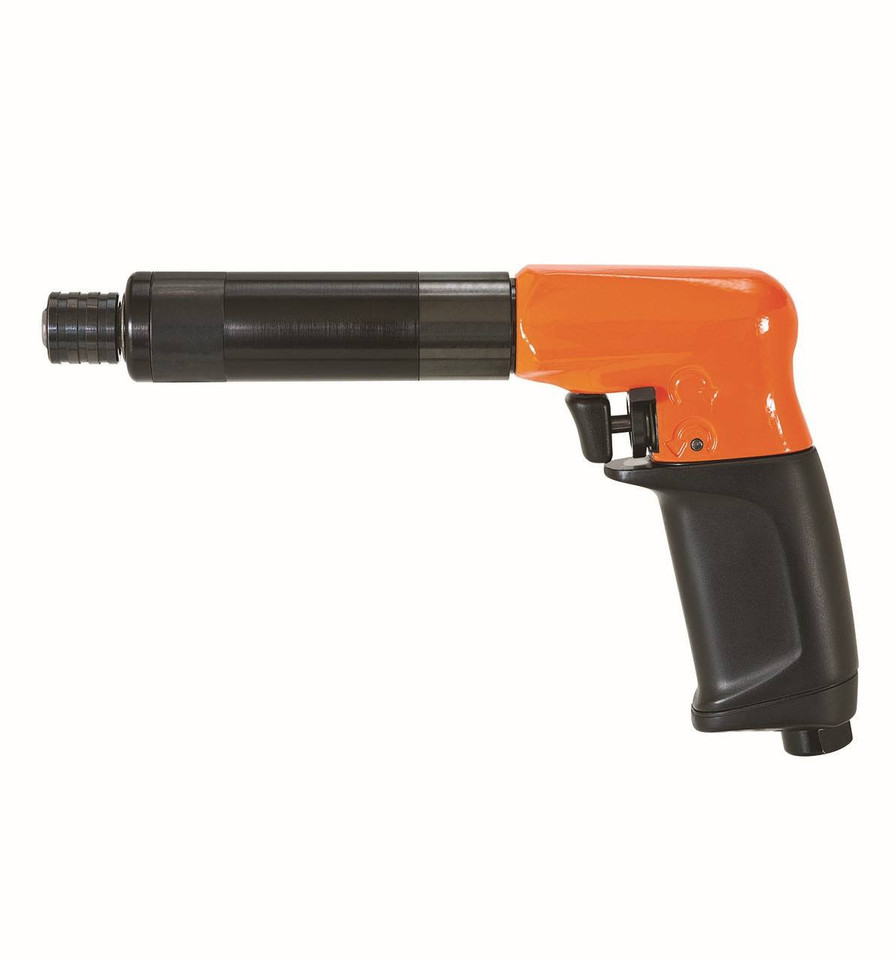

Cleco 19PCA04Q P-Handle Pneumatic Screwdriver | 19 Series | Push and Trigger Start | 1,100 RPM | 0.8 - 3.3 (ft-lbs) Torque Range

Built for assembly stations that need controlled torque with a faster rundown than low-speed models, the Cleco 19PCA04Q P-Handle Pneumatic Screwdriver delivers 1,100 RPM free speed with a confirmed 10–40 in-lbs. tool torque range. The P-handle body gives the operator a stable forward push point, making this model especially useful for thread-cutting screws, plastic assemblies, light metal brackets, appliance panels, and other fastening jobs where alignment pressure matters during screw start.

Part of the Cleco 19 Series, the 19PCA04Q uses a CLECOMatic clutch, Cleco’s shut-off clutch system that stops the tool when the preset torque is reached. This helps reduce overdriving, fastener damage, and torque variation during repetitive production work. The push and trigger start configuration gives operators two activation methods for better control at the bench or in fixtures, while the 1/4" hex quick change drive accepts compatible industrial screwdriver bits and allows fast bit changes between operations.

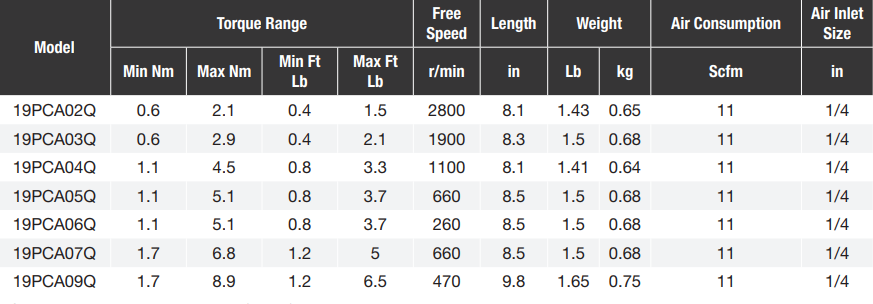

Type: P-Handle Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19PCA04Q | Start Type: Push and Trigger Start | Clutch Type: CLECOMatic Shut-Off Clutch | Drive: 1/4" Hex Quick Change | Free Speed: 1,100 RPM | Tool Torque Range: 10–40 in-lbs. / 1.1–4.5 Nm | Standard Spring Torque Range: 10–38 in-lbs. / 1.1–4.3 Nm | Overall Length: 8.1" / 206 mm | Weight: 1.41 lbs. / 0.6 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Air Consumption: 11 SCFM

Features:

• CLECOMatic shut-off clutch stops at the preset torque to support repeatable fastening in production environments.
• P-handle configuration provides a controlled forward push point for thread-cutting screws and fasteners that require steady alignment.
• Push and trigger start operation gives operators flexibility when moving between open bench work, fixtures, and varied assembly positions.
• 1/4" hex quick-change drive helps reduce bit-change time on mixed fastener jobs.
• External torque adjustment simplifies setup when changing screw size, joint material, or fastening requirement.
• Adjustable reverse lever supports one-hand operation for both left-handed and right-handed users.
• Each tool is tested and certified by a technician before shipment for added confidence in production use.
• Grip material is tested to withstand exposure to temperature changes, vibration, slipping, and a range of industrial chemicals.

Made in USA:

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Appliance production — fastening panels, brackets, trim parts, and threaded inserts during repetitive assembly work.
• Electronics and electrical assemblies — driving small screws into housings, covers, terminals, and component supports.
• Automotive interior and component assembly — installing plastic panels, light brackets, clips, and interior fasteners at controlled torque.
• Aerospace and precision manufacturing — supporting low-torque fastening where repeatability and process control are important.
• Thread-cutting screw applications — using the P-handle body to maintain forward pressure as the screw forms or cuts threads.

FAQs:

• Q: What is the torque range of the Cleco 19PCA04Q?
  A: Manufacturer data lists a tool torque range of 10–40 in-lbs. / 1.1–4.5 Nm and a standard spring range of 10–38 in-lbs. / 1.1–4.3 Nm. In foot-pounds, the listed tool range is approximately 0.8–3.3 ft-lbs.
• Q: How is the 19PCA04Q different from the 19PCA02Q?
  A: The 19PCA04Q runs at 1,100 RPM with a higher 10–40 in-lbs. tool torque range. The 19PCA02Q is faster at 2,800 RPM but has a lower 5–19 in-lbs. torque range, making it better for smaller fasteners.
• Q: What does the CLECOMatic clutch do?
  A: The CLECOMatic clutch shuts the screwdriver off when the preset torque is reached. This helps control torque without requiring the operator to manually stop the tool at the exact moment.
• Q: Why choose a P-handle screwdriver instead of a T-handle screwdriver?
  A: The P-handle is better suited for applications where the operator needs to push forward into the fastener, such as thread-cutting screws. T-handle models are commonly used when the fastener is already pre-threaded and less forward pressure is needed.
• Q: What type of air setup should be used with this screwdriver?
  A: The 19PCA04Q is listed with 11 SCFM air consumption, a 1/4" NPT air inlet, and a 3/8" minimum hose I.D. Use clean, regulated, lubricated air to help maintain repeatable tool performance.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need left-handed or right-handed Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
